Fans Cooling Outdoor Telecom Cabinet Steel IP55 Double Wall With Heat Insulation
Fans Cooling Galvanized Steel Outdoor Telecom Cabinet IP55 Double Wall With Heat Insulation
1.Cabinet Application
This series outdoor Cabinet is mainly used in wireless communication base station, such as communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.
2. Cabinet Features
(1) The cabinet is dustproof, sunproof and rainproof, used in outdoor environment.
(2) Cooling: 4 fans
(3) The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding.
(4) All the cables used in the cabinet are made from flame retardant materials.
(5)There are inlets holes at the bottom of the cabinets.
(6)IP55 proteciton level.
(7)19" rack and battery lays inside of the cabinet.
(8)One front door ,hidden zinc alloy hinge.
(9)Floor mounted type.
3. Technical Parameters
| Configuration | Item | Technical Parameter |
| Cabinet Body | Size | External Size: 2100mm×900mm×900mm(H×W×D) |
| Component |
The whole cabinet is composed of two parts. The upper part has 19" rack for equipment installing. The lower part has battery layers. The installation method is floor mounted. |
|
| Material | Galvanized steel, double wall, with heat insulation | |
| Structure |
|
|
| Surface Treatment | Deoil, acid pickling, phosphating, electrostatic spraying, high temperature solidification. | |
| Color | Outdoor polyester light grey RAL 7035 coating or custom made. | |
| Ingress Protection | IP55 | |
| Working Temperature | -40°C～+75°C | |
| Cooling Method | Fans |
4 pcs, 220VAC,50Hz. |

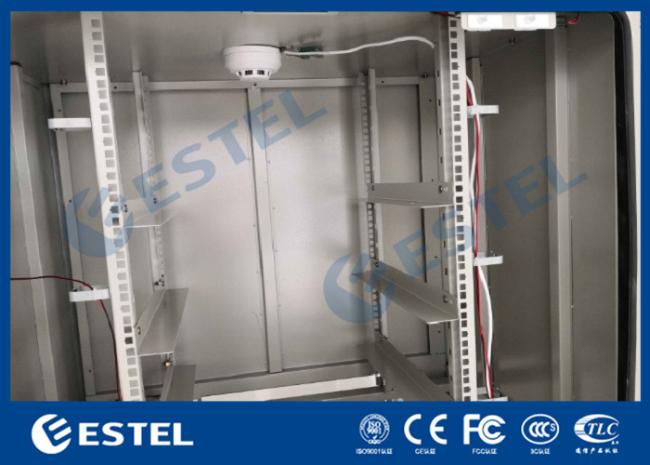

4. Cabinet Internal Pictures

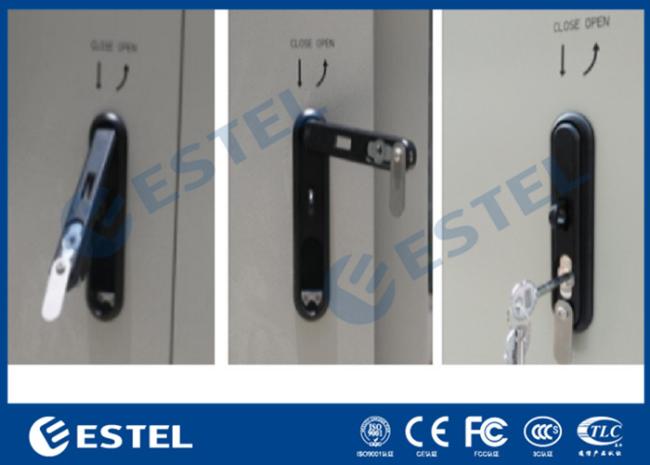

5. Cabinet Door and Lock
The cabinet includes one front door. The cabinet door uses embedded structure. The door opening angle is larger than 110°and the door limit device can limit the opening angle. The lock is theftproof three point lock, supporting padlock.
Door lock theft proof design:Damage resistance of the theft proof lock meets GA/T 73-1994 “Mechanical Anti-theft Lock” class B requirement, supporting padlock.

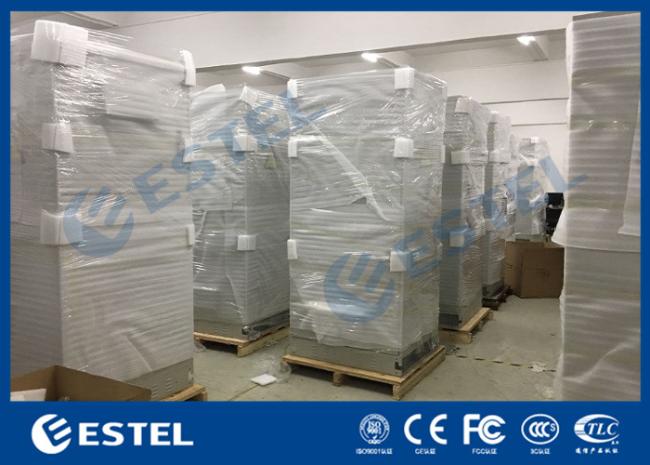

6. Cabinet Production
