One Front Door Outdoor Telecom Cabinet 1 Compartment Single Wall Heat Insulation
304 Stainless Steel Outdoor Telecom Cabinet Single Wall With Heat Insulation One Front Door
1. Cabinet Application
The Stainless Outdoor Telecom Cabinet is mainly used in wireless communication base station, such as 4G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.
2. Cabinet Parameters
| Items | Technical Parameter |
| Dimension |
External Dimension: W×D×H 750×700×2000mm |
| Layout | 1 compartment |
| Equipment Installation Method | 19” rack |
| Doors | With one front door , and anti-theft three point lock for outdoor cabinet (support padlock). |
| Material | 304 stainless steel, single wall with insulation |
| Ingress Protection | IP55 |
| Cooling System |
1. Air conditioner: 1pcs, 2000W cooling capacity, 48VDC, Installed on the front door 2. Fans: 2pcs, 48VDC |
| Lighting | 48V LED lamps |
| Power Distribution Unit |
AC Power Distribution Unit: 125A 4P X 1 63A 3P X 2 32A 3P X 2 16A 1P X 2 10A 1P X 2
DC Power Distribution Unit: 125A 1P X 4 100A 1P X 2 32A 1P X 2 16A 1P X 2 6A 1P X 2 |
| Cable Inlets | The cable entry points is situated behind the cabinet and of 10 holes split 6 top and 4 bottom and easy upgradeable. |
| Cabinet and Componet Coating | The cabinet is coated structural Grey (RAL7032) |
| Package | Wooden Case with pallets |
3. Cabinet Configuration
| NO | DESCRIPTION | SPECS | QUANTITY | UNIT |
| 1 | Outdoor Telecom Cabinet |
(1) Model:161080720050001 (6) Wall mount |
1 | SET |
| 2 | Fan | DC48V | 2 | PC |
| 3 | Air Conditioner | Cooling Capacity: 2000W; Power Supply: DC48V On the front door |
1 | SET |
| 4 | LED Lamp Switch | Used for controlling led lamp on/ off | 1 | PC |
| 5 | LED Lamp | DC48V, used for illumination in the cabinet | 1 | PC |
| 6 | AC Power Distribution Unit |
AC: 63A 3P X 2 32A 3P X 2 16A 1P X 2 10A 1P X 2
|
1 | SET |
| 7 | DC Power Distribution Unit |
DC: 125A 1P X 4 100A 1P X 2 32A 1P X 2 16A 1P X 2 6A 1P X 2
|
1 | SET |
| 8 | Package | Wooden case with pallet | 1 | SET |
3. Cabinet Key features
(1) 304 Stainless Steel, single wall with insulation.
(2) Cabinet cooling system: air conditioner with 2000W cooling capacity and 2 fans.
(3) The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There are cable inlet individually for power cable, signal cable and optical cable.
(4) All the cables used in the cabinet are made from flame retardant materials.
(5)Protection grade :IP55.
(6)Security design: Embedded doors, embedded hinges, 3-point security locks.

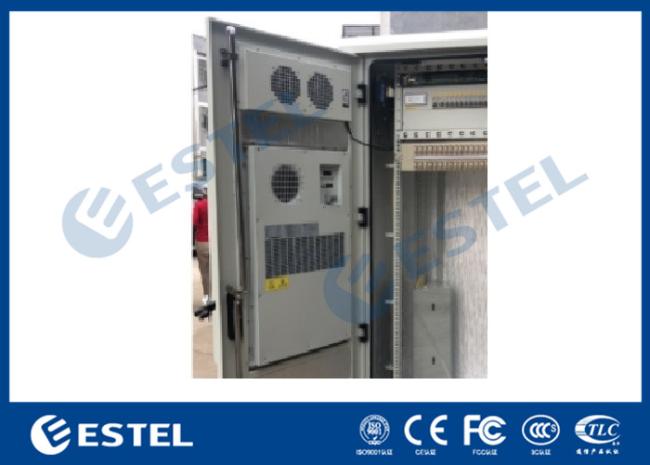

4. Cooling System
4.1 Air conditioner with 2000W Cooling capacity, installed on the front door of the cabinet.
4.2 Fans:48VDC,2pcs, installed on the front door of the cabiet

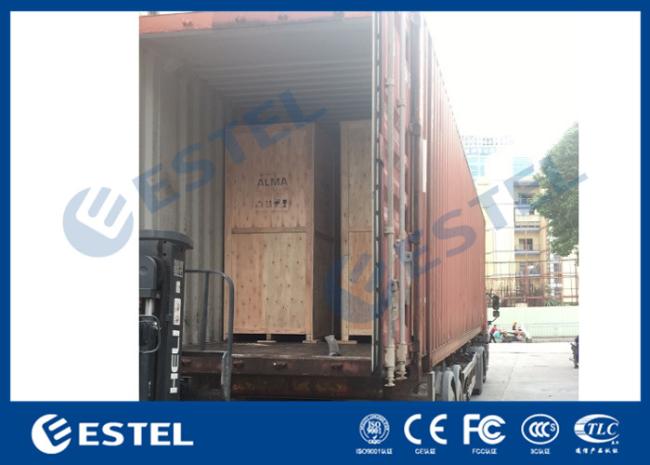

5. Package And Shipment
6. Our Delivery Agent
The goods can be shipped by sea, by air, by courier, by land, by train, etc.
Besides the following delivery agent, we can also look for the delivery agent with the best price in china if you need us to do for you.
7. Factory Introduction
Factory Size: 3000 Square Meters
No. of Main Production Lines: 5
Contract Manufacturing: OEM Service Offered, Design Service Offered, Buyer Label Offered
Production Experience: 13 Year
