304 Stainless Steel Outdoor Telecom Cabinet 2000W Air Conditioner Cooling IP55
304 Stainless Steel 2000W Air Conditioner Cooling Outdoor Telecom Cabinet IP55
1. Cabinet Parameters
| Items | Technical Parameter |
| Dimension |
External Dimension: W×D×H 750×700×2000mm |
| Layout | 1 compartment |
| Equipment Installation Method | 19” rack |
| Doors | With one front door , and anti-theft three point lock for outdoor cabinet (support padlock). |
| Material | 304 stainless steel, single wall with insulation |
| Ingress Protection | IP55 |
| Cooling System |
1. Air conditioner: 1pcs, 2000W cooling capacity, 48VDC, Installed on the front door 2. Fans: 2pcs, 48VDC |
| Lighting | 48V LED lamps |
| Power Distribution Unit |
1 Set
|
| Cable Inlets | The cable entry points is situated behind the cabinet and of 10 holes split 6 top and 4 bottom and easy upgradeable. |
| Cabinet and Componet Coating | The cabinet is coated structural Grey (RAL7032) |
| Package | Wooden Case with pallets |
2. Cabinet Configuration
| NO | DESCRIPTION | SPECS | QUANTITY | UNIT |
| 1 | Outdoor Telecom Cabinet |
(1) Model:161080720050002 (6) Wall mount |
1 | SET |
| 2 | Fan | DC48V | 2 | PC |
| 3 | Air Conditioner | Cooling Capacity: 2000W; Power Supply: DC48V On the front door |
1 | SET |
| 4 | LED Lamp Switch | Used for controlling led lamp on/ off | 1 | PC |
| 5 | LED Lamp | DC48V, used for illumination in the cabinet | 1 | PC |
| 6 | Power Distribution Unit |
|
1 | SET |
| 7 | Package | Wooden case with pallet | 1 | SET |

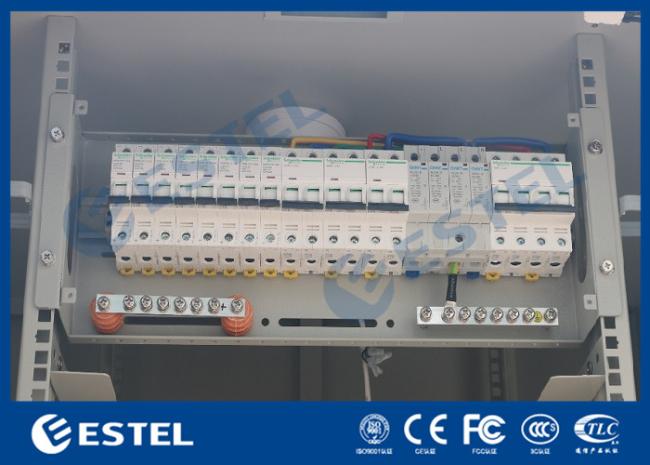

3. PDU System
4. Cooling System
4.1 Air conditioner with 2000W Cooling capacity, installed on the front door of the cabinet.
4.2 Fans:48VDC,2pcs, installed on the front door of the cabiet

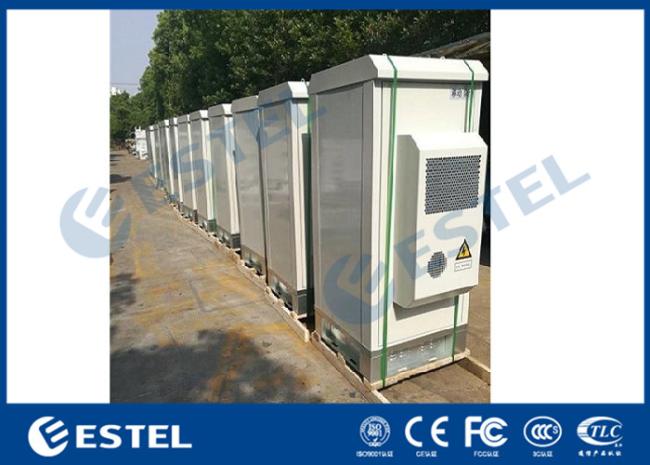

5.Production Pictures
6. Our Delivery Agent
The goods can be shipped by sea, by air, by courier, by land, by train, etc.
Besides the following delivery agent, we can also look for the delivery agent with the best price in china if you need us to do for you.
