Heat Insulation Outdoor Electronic Equipment Enclosures Anti Theft Three Point Lock
Galvanized Steel Double Wall Heat Insulation Outdoor Telecom Cabinet With Air Conditioner
1.Cabinet Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension | External Dimension: H×W×D 2100×800×800 |
| Layout | 1 compartment | |
| Equipment Installation Method | 19” rack | |
| Door | With one front door, and anti-theft three point lock for outdoor cabinet (support padlock) | |
| Material | Galvanized steel; 1.5mm thick outer plate, 0.8mm thick inner plate | |
| Heat Insulation | There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF. | |
| Structure | Assembled | |
| Ingress Protection | IP55 | |
| Temperature Control | Cooling | AC220V air conditioner |
| Lightning Proof | Grade B lightning proof | Nominal: 60KA, Max.: 100KA |
| Lighting | LED lamp | 48V LED lamps (immovable), with protective circuit breaker |
| Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
| Storage Temperature: -50°C ~ + 70°C | ||
| Transport Temperature: -50°C ~ +70°C | ||
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1120 ×(1±5%)W/m2 |
2.Cabinet Features
1) The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.
2) Cabinet cooling: air conditioner. (Other cooling option: heat exchanger and fans). MTBF≥50000h
3) The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There are entrance holes individually for power cable, signal cable and optical cable.
4) All the cables, sealing and heat insulation used in the cabinet are made from flame retardant materials.
5) The cabinet includes 19” standard installation rack.
6) Surface treatment: degreasing, derusting, rustproof phosphating (or galvanizing), powder coated.
7) Cabinet load bearing: ≥600kg
8) Flame retardance: comply with GB5169.7 test A
9) Insulation resistance: the insulation resistance between grounding devices and cabinet body parts is not lower than 2×104M/500V(DC).
10)Withstand voltage: the withstand voltage between grounding devices and cabinet body parts is not lower than 3000V(DC)/1min.
11)Mechanical strength: each surface can bear upright pressure >980N; after the door is open, its outer end can bear upright pressure >200N.

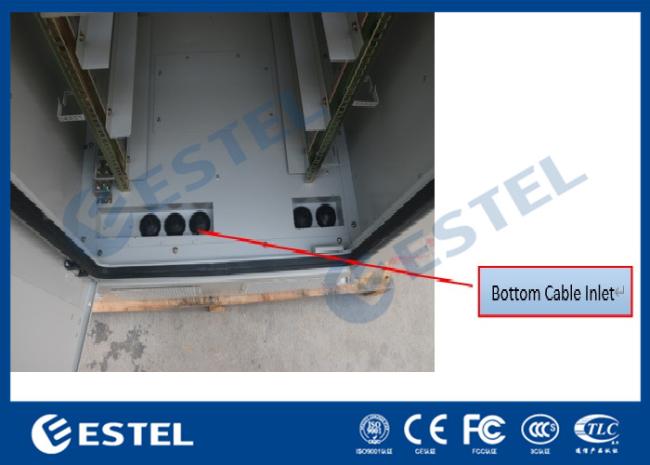

3.Cabinet Inlets

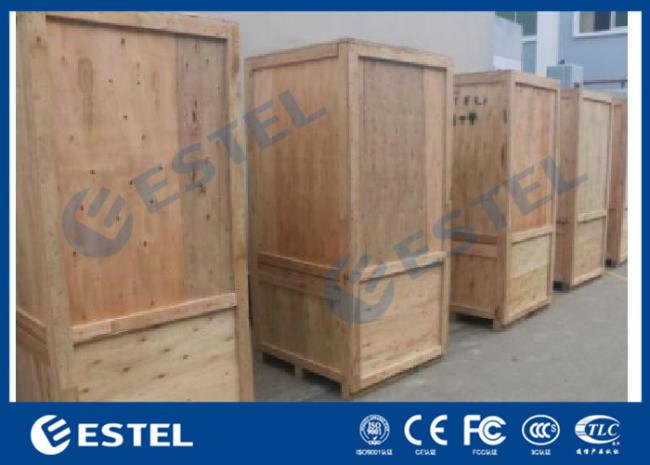

4.Cabinet Pacakge
5.Our Delivery Agent
The goods can be shipped by sea, by air, by courier, by land, by train, etc.
Besides the following delivery agent, we can also look for the delivery agent with the best price in china if you need us to do for you.
