Dustproof Outdoor Telecom Cabinet Galvanized Steel With Heat Exchanger / Fans
High Quality Galvanized Steel Outdoor Telecom Cabinet With Heat Exchanger And Fans
1.Cabinet Features
- The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.
- Cabinet cooling: fans and heat exchanger.
- The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There are entrance holes individually for power cable, signal cable and optical cable.
- All the cables used in the cabinet are made from flame retardant materials.
2.Cabinet Applications
This series Outdoor Telecom Equipment Cabinet is mainly used in wireless communication base station, such as 4G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.
3.Cabient Accessaries
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Telecom Cabinet | 1 | Set |
(1) External Dimension: H×W×D 2100×900×900mm (2) One compartment: equipment compartment (3)With one front door, and anti-theft three point lock for outdoor cabinet (support padlock) (4) Material: galvanized steel; 1.5mm thick outer plate, 0.8mm thick inner plate |
| 2 | Heat Exchanger With Heater | 1 | Set |
Power supply: DC48V; Cooling capacity:1.9KW, Model: HE06-190SEH/01 |
| 3 | Auxiliary Direct Ventilation Fans | 1 | PC | 12025 DC48V |
| 4 | Door Sensor | 1 | PC | For controlling LED lamp |
| 5 | LED Lamp | 1 | PC | DC48V |
| 6 | Package | 1 | Set | Wooden Case |
4.Cabinet Inlets

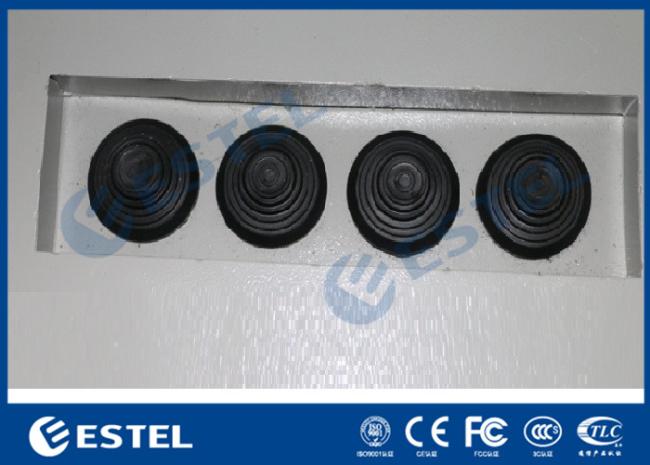

Feeder cable and other external cables all use bottom wiring method.
5.Cabinet Grounding Protections

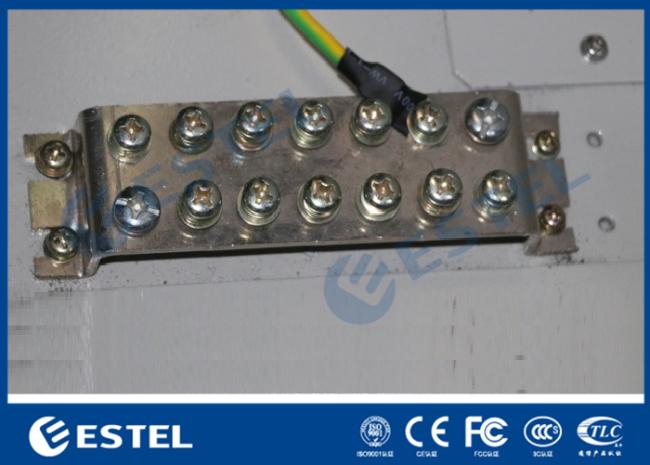

- The cabinet includes grounding copper bar with anti-corrosion coating. There are enough screws for wiring connection terminals.
- The metal part of the cabinet should be interconnected and be connected with grounding bar. Connection resistance between any two points is lower than 0.1Ω.
- Protective earthing of other equipments inside the cabinet should be connected to the grounding bar.

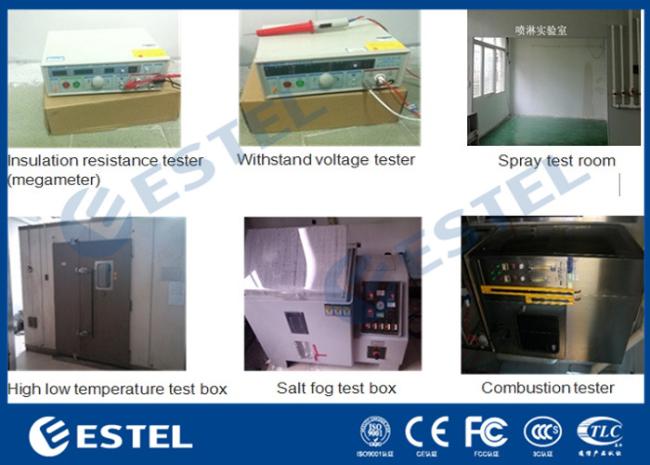

6.Cabinet Quality Control Instruction
Our company resolutely implements the principle of quality first, we control and supervise the whole production process in strict accordance with the requirements of the ISO9001 system and the related implementation process. The quality department strictly controls all aspects like material inspection, production processes, product testing, shipment inspection and establishes traceable documents and product identification.
Our is very familiar with the various standards, strict implementation of the standards required sampling and testing methods.
