IP55 Triple Bay Outdoor Telecom Enclosure Three Front Doors Fans Cooling Cabinet

Price Negotiable

Price: 358-2143 usd

MOQ: 1 set

Delivery Time: 15-20 working days

Brand: ESTEL

Product Description

IP55 Triple Bay Outdoor Telecom Enclosure / Three Front Doors Fans Cooling Cabinet

1.Enclosure Overview

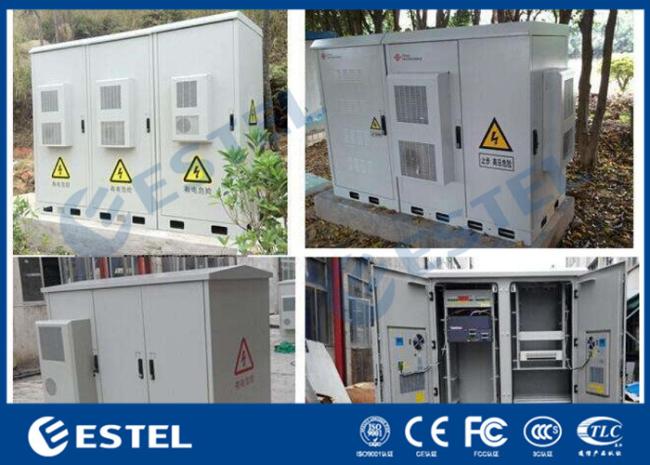

This triple bay enclosures are the ultimate choice for outdoor racking requirements.It provides a secure,climate controlled environment for any electronic equipment.
Being made of galnarized steel,it’s strong enough to rack even the heaviest equipment.It comes with three sets of standard 19 inch racking rails.
For those who need more than just standard enclosure, this series can also offer a truly the security of customized solution with lots of available options, providing a climate-controlled environment for any electronic equipment, electrical load panels and cable entry solutions.

2.Enclosure Features

Grey color
External dimentions is W*D*H 2400*900*1800mm
Galvanized steel
Top cover, shades cabinet from the sun
Zinc Die Powder-coated
Three front doors
Anti-theft three point lock
Individual cable entry holes from bottom of the cabinet
3 sets of adjustable 19″ racking rails
Cooling system uses fans.
The door sensor, water sensor, smoke sensor, temperature and humidity sensor optional
Flame retardant comply with GB5169.7 test A
CE certificates
Floor mounting type
Package:Wooden case with pallets
IP55 protection level

3.Enclosure Parameters

Type	Technical Parameters
Dimension	External Dimension: H×W×D 24009001800mm
Layout	3 compartments
Equipment Installation Method	19” rack and battery layers
Door	With Three front doors. With anti-theft three point lock for outdoor cabinet (support padlock)
Material	Galvanized steel; 1.5mm thick outer plate, 0.8mm thick inner plate
Heat Insulation	There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF
Structure	Welded or Assembled
Ingress Protection	IP55
Lightning Proof	Grade B lightning proof,Nominal: 60KA, Max.: 100KA
LED lamp	48V LED lamps (immovable), with protective circuit breaker
Temperature	Working Temperature: -40°C ~ +55°C
	Storage Temperature: -50°C ~ + 70°C
	Transport Temperature: -50°C ~ +70°C
Relative Humidity	5% ~ 100%
Air Pressure	62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
Solar Radiation Intensity	1120 ×(1±5%)W/m2
Mounting Type	Floor mounting type

4. Cable Inlets

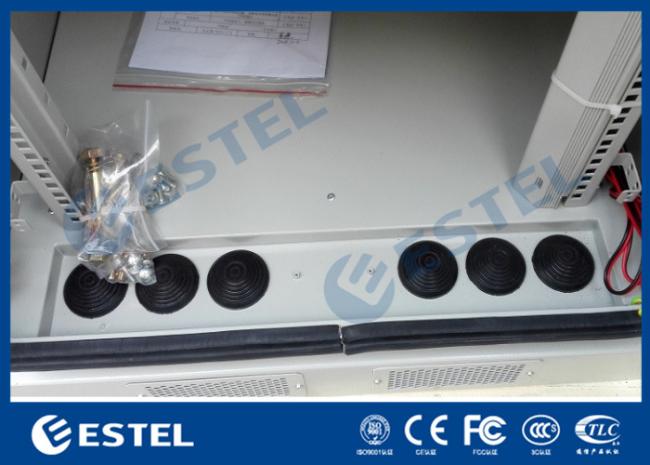

There are entrance holes individually for feeder cable and other external cables.

5. Connection And Fastening

Use anti-loose threaded connection as structure and bearer connection.Anchor bolt for fixing cabinet use hot dip galvanized bolts.
Door hings use inner hinge mode.
