One Bay Outdoor Telecom Cabinet Galvanized Steel Single Wall With Front / Back Doors

Price Negotiable

Price: 358-2143 usd

MOQ: 1 set

Delivery Time: 15-20 working days

Brand: ESTEL

Product Description

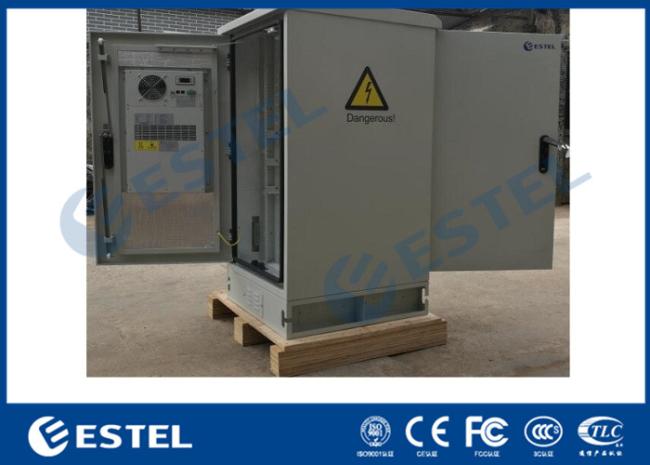

IP55 One Bay Outdoor Telecom Cabinet Galvanized Steel Single Wall With Front And Back Doors

1. Cabinet Application

This series outdoor telecom cabinet is made of galvaznied steel,it is mainly used in wireless communication base station, such as 4G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.

2. Cabinet Parameters

Configuration	Item	Technical Parameter
Cabinet Body	Model	ET80120130-EQ
	Size	External Size W×D×H: 800mm×1200mm×1300mm Refer to the drawing.
	Component	The whole cabinet includes three parts: the top cover, the cabinet body and the base. The installation method is floor mount.
	Material	Galvanized steel, single wall with heat insulation.
	Structure	Single wall, with insulation. One front door and one back door, hidden zinc alloy hinge. Outdoor special steel lock, lock cylinder assembled with protective cover, lock body assembled with anti-theft three-point lock(support padlock). Door stopper is installed on the inside of the cabinet door. Grooved door with seal rubber strip, attached to the inner side of the door, waterproof and dustproof. Include 23U standard 19“ rack inside compartment Cable inlets at the bottom of cabinet. Grounding protection: copper bar.
	Surface Treatment	Deoil, acid pickling, phosphating, electrostatic spraying, high temperature solidification
	Color	Anti-corrosion outdoor powder coating RAL7035
	Ingress Protection	IP55
	Working Temperature	-40°C～+85°C
Cooling Method	Air Conditioner	Cooling capacity: 1000W; Power Supply: DC48V; Installed on front door

3. Cabinet Key Features

(1) Galvanized Steel, single wall with insulation.

(2) Cabinet cooling system: air conditioner with 1000W cooling capacity

(3) The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There are cable inlet individually for power cable, signal cable and optical cable.

(4) All the cables used in the cabinet are made from flame retardant materials.

(5)Protection grade :IP55.

(6)Security design: Embedded doors, embedded hinges, 3-point security locks.

4. Cooling System

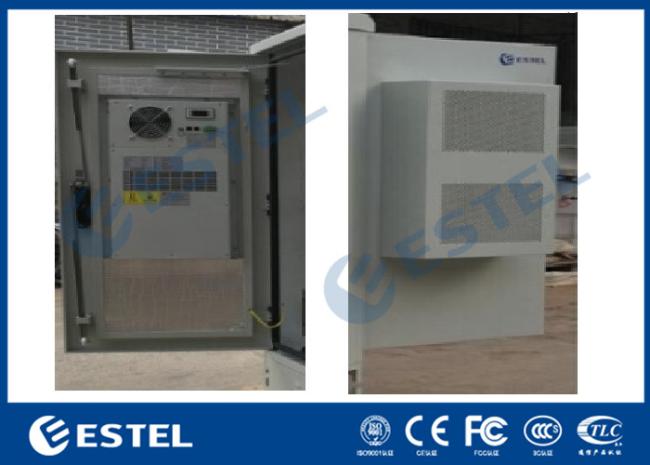

There is one air conditioner with 1000W cooling capacity installed on the front door.
