Small Size Galvanized Steel Double Wall Outdoor Telecom Cabinet IP55

1.Cabinet Description

This series IP55 Outdoor cabinet with rear back access offers the ideal enclosure solution to build the whole base station inside.The cabinets system can support Electrical equipments,PDU,Backup batteries,Mornitoring system and etc.This series enclosures offer all the protection needed for outdoor requirements.Ultimate security is provided by a three-point locking system.

2. Cabinet Parameters

3.Cabinet Dimension

External Dimension: W×D×H 400×315×606mm (Including base height)

4.Cabinet Features

4.1 The cabinet is IP55 protection level

4.2 The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.

4.3 Good quality galvanized steel,double wall with insulation.

4.4 Surface treatment: degreasing, derusting, rustproof phosphating (or galvanizing), powder coated

4.5 Cabinets cooling uses air conditiioner

4.6 There are entrance holes at the bottom of the cabinet

4.7 Including -48VDC illumination lamp.

4.8 All the cables, sealing and heat insulation used in the cabinet are made from flame retardant materials, which comply with GB5169.7 test A

4.9 Floor mounting type

4.10 CE certificate

5.Cooling System

There is one air conditoner installed on the front door.

• Cooling capacity: 300W
• Power Supply: DC48V

6. Internal Installation Pictures

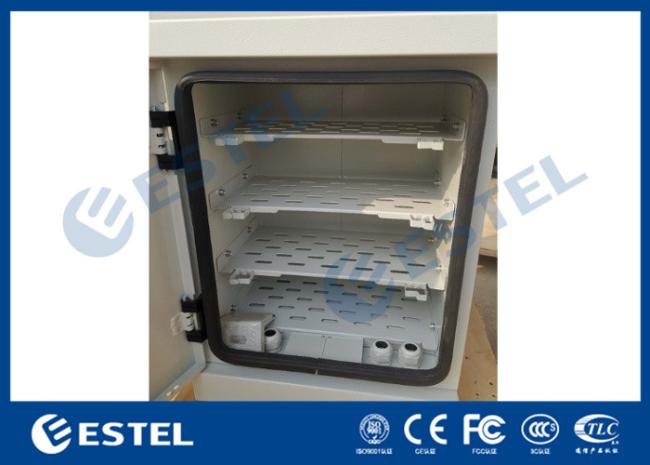

There are 4 trays inside the cabinet,which is used for installing the equipment.

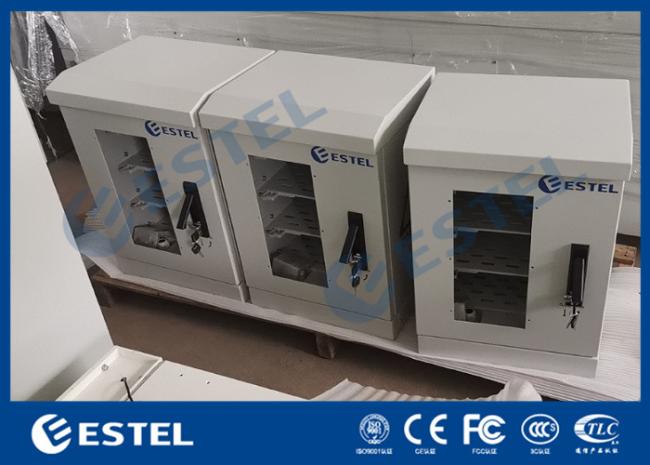

7.Production Picture
