Integrated Galvanized Steel Outdoor Telecom Cabinet Double Wall Four Equipment Trays
Integrated Galvanized Steel Double Wall Outdoor Telecom Cabinet Including Four Equipment Trays
1. Cabinet Description
This series IP55 Outdoor cabinet with rear back access offers the ideal enclosure solution to build the whole base station inside.The cabinets system can support Electrical equipments,PDU,Backup batteries,Mornitoring system and etc.This series enclosures offer all the protection needed for outdoor requirements.Ultimate security is provided by a three-point locking system.
2.Cabinet Features
(1) The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.
(2) Cabinet cooling: air conditioner.
(3) The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There are cable inlet individually for power cable, signal cable and optical cable.
(4) All the cables used in the cabinet are made from flame retardant materials.
3. Cabinet Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension | External Dimension: W×D×H 400×315×606mm (Including base height) |
| Layout | 1 compartment | |
| Equipment Installation Method | 4 trays | |
| Door | With one front door, and anti-theft lock for outdoor cabinet. | |
| Material |
Galvanized steel, double wall, outer wall is 1.5mm, inner wall is 0.5mm, between two wall there is 25mm insulation. |
|
| Ingress Protection | IP55 | |
| Temperature Control | Cooling | Air conditioner |
| Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
| Storage Temperature: -50°C ~ + 70°C | ||
| Transport Temperature: -50°C ~ +70°C | ||
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1120 ×(1±5%)W/m2 |
4. Cabinet Accessories List
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Cabinet | 1 | PC |
(1) External Dimension: W×D×H 400×315×606mm (Including base height) (2) Including cable entry gland (3) IP grade: IP55 (4) Installation method: floor mount and wall mount, including installation accessories |
| 2 | Air Conditioner | 1 | PC |
Cooling capacity: 300W Power Supply: DC48V |
| 3 | Package | 1 | PC | Wooden Case |

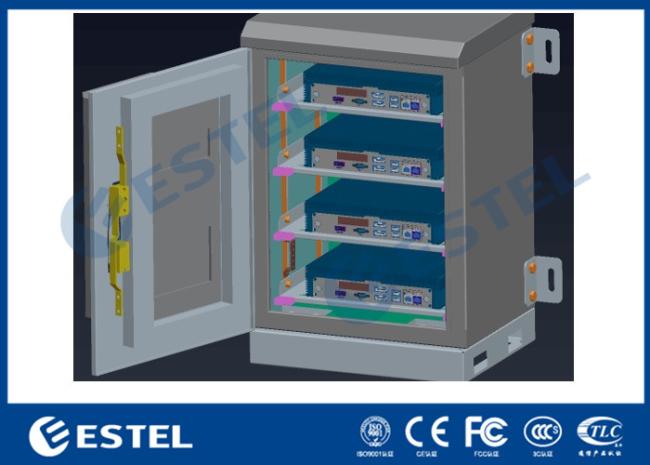

5.Cabinet Layer

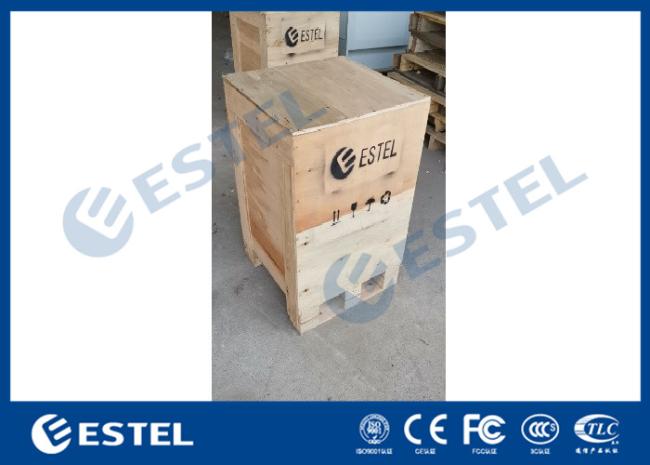

6.Cabinet Package and Shipment
Wooden case with pallets.
