38U SGCC Telecom Outdoor Cabinets Including 19'' Rack IP55 Protection Level

1.Cabinet Specifications

1. Reliable 19" international internal allocation.

2. Front single solid metal door with handle lock, optional AC/heat exchanger fixed.

3. Width: 800mm,Depth: 800mm, Height:2000mm

4. Outdoor free standing with bottom plinth.

5. Enhance door hinges with 115 degrees operation angle.

6. Optional single/double layers structure for cabinet body(generally single for wall/pole mount, double for floor standing).

7. Rear single solid metal panel.

8. Optional ventilation: air conditioner

9. Cable entrance at bottom panel with base

10. Varies specification upon customers' special requirements

11. Application method: wall /pole mount by mounting kits/floor standing by base

12. The bottom spare space for batteries stored

13. Customized size is available

2. Standard And Material

1. Surface Finish: Degrease, acid pickling, rust prevention and parkerizing, pure

2. water cleaning, static electricity powder coating.

3. Material: Galvanized steel.

4. Thickness: Mounting profile:2.0mm,others:1.50mm.

5. Color: RAL7035.

3.Cabinet Feature

• Double layers design for the body.

• Reasonable inside space application, equipments space, cabling space, battery space.

• The cabinet inside has scientific thermal cycle design, high capacity fans and special air filter system to satisfy the environmental demand.

• Dedicated air filter system to stop dust and rain inside cabinet during the fresh air into the cabinet

• Good quality earthing system, grounding resistance is less than 10 milliohm.

• High quality 3 points handle lock.

• IP55 protection level.



4.Technical Feature

• Cabinet external temperature:-40℃～+60℃

• Environmental temperature:-50℃～+55℃

• Equipments working temperature:-18℃～+35℃

• Environmental humidity:≤95％(+30℃)

• Material: galvanized steel

• Thickness:1.5mm for the body,2.0mm for 19''rails

• Body color: Gray RAL7035

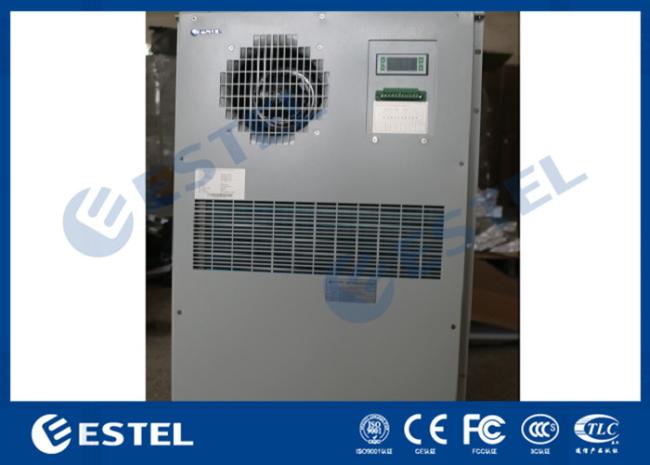

5.Cooling System

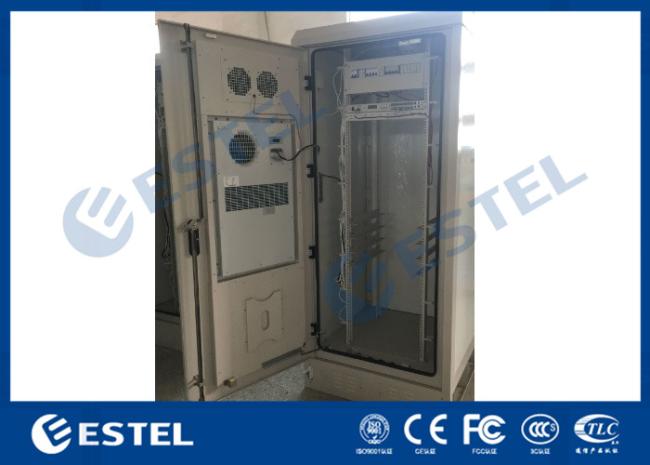

6.Cabinet Internal Picture

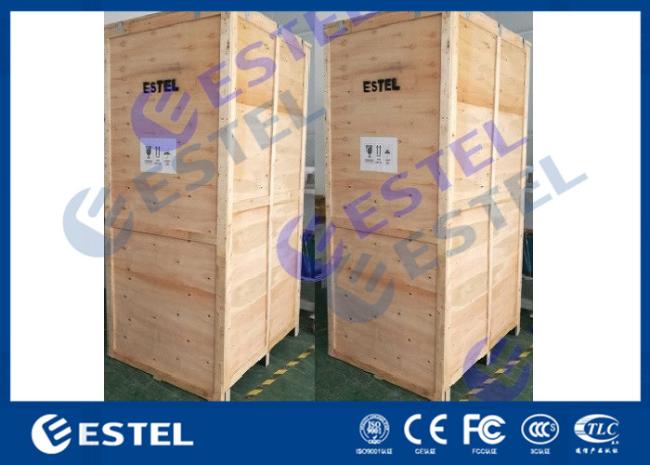

7.Cabinet Package
