Fans Cooilng Outdoor Telecom Cabinet Galvanized Steel Single Wall With Front Access

Price Negotiable

Price: 358-2143 usd

MOQ: 1 set

Delivery Time: 15-20 working days

Brand: ESTEL

Product Description

4 Fans Cooilng Galvanized Steel Single Wall Outdoor Telecom Cabinet With Front Access Floor Mounted

1. Cabinet Application

This series outdoor telecom cabinet is made of galvaznied steel,it is mainly used in wireless communication base station, such as 4G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.
This series outdoor telecom cabinet provides flexible size options, offers the ideal enclosure solution to build the whole base station inside. The cabinets system can support Electrical equipments, UPS, PDU, Backup batteries, Mornitoring system and etc.

2. Cabinet Parameters

Configuration	Item	Technical Parameter
Cabinet Body	Size	External Size W×D×H: 900mm×800mm×1800mm
	Component	The whole cabinet includes three parts: the top cover, the cabinet body and the base. The installation method is floor mount.
	Material	Galvanized steel,single wall
	Structure	One front door , hidden zinc alloy hinge. Outdoor special steel lock, lock cylinder assembled with protective cover, lock body assembled with anti-theft three-point lock(support padlock). Door stopper is installed on the inside of the cabinet door. Grooved door with seal rubber strip, attached to the inner side of the door, waterproof and dustproof. Include standard 19“ rack inside the cabinet Cable inlets at the bottom of cabinet. Grounding protection: copper bar.
	Surface Treatment	Deoil, acid pickling, phosphating, electrostatic spraying, high temperature solidification
	Color	Anti-corrosion outdoor powder coating RAL7035
	Ingress Protection	IP55
	Working Temperature	-40°C～+85°C
Cooling System	Fan	DC48V,4pcs , installed on the front door
Package	Package	Wooden case with pallets

3. Cabinet Key Features

(1) Galvanized Steel, single wall.

(2) Cabinet cooling system: air conditioner with 4 fans.

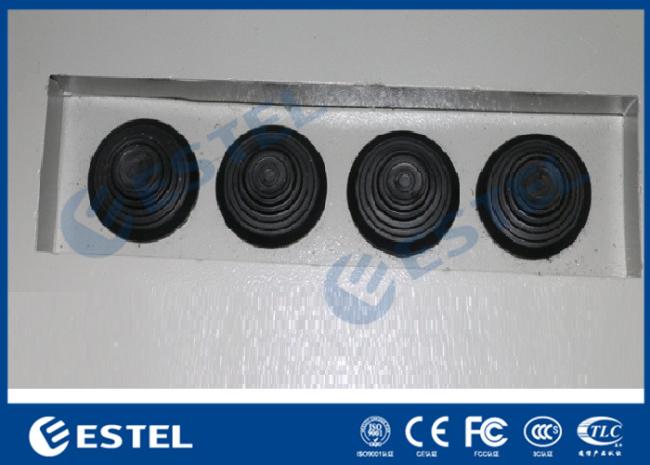

(3) The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There are cable inlet individually for power cable, signal cable and optical cable.

(4) All the cables used in the cabinet are made from flame retardant materials.

(5)Protection grade :IP55.

(6)Security design: Embedded doors, embedded hinges, 3-point security locks.

4. Cooling System

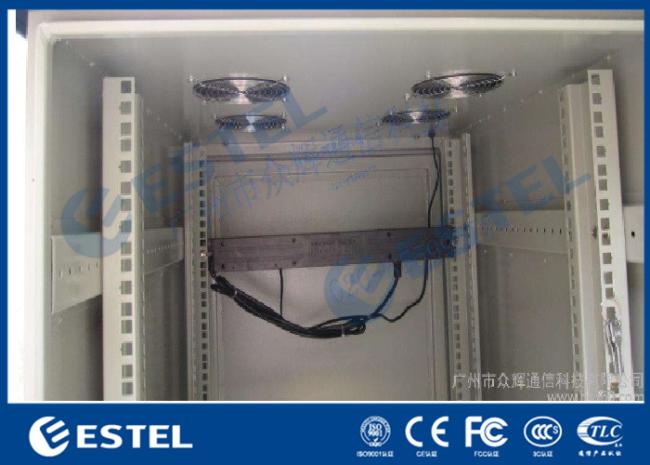

There are 4 fans installed on the top cover.
