1.0KW Cooling Capacity Outdoor Equipment Cabinet Galvanized Steel With Oil Socket
1.0KW Cooling Capacity Outdoor Telecom Cabinet Galvanized Steel With Oil Socket
1. Cabinet Instructions
This series cabinet is 1600mm High and 900mm Wide and 900mm Deep. For those who need more than just standard cabinet, this series can also offer a truly the security of customized solution with lots of available options, providing a climate-controlled environment for any electronic equipment, electrical load panels and cable entry solutions. It provides a secure,climate controlled environment for any electronic equipment.
2. Cabinet Parameters
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Telecom Cabinet | 1 | Set |
(1) External Size H×W×D 1600×900×900mm (2) One compartment: equipment compartment (3)With one front door, and anti-theft three point lock for outdoor cabinet (support padlock) (4) Material: Galvanized steel ; 1.5mm thick outer plate, 0.8mm thick inner plate with 20mm PEF heat insulation between two walls. |
| 2 | Air Conditioner | 1 | Set |
Cooling capacity: 1.0KW, Power supply: AC220V, 50HZ; |
| 3 | Auxiliary Direct Ventilation Fans | 2 | PC | 12038 DC48V |
| 4 | Door Sensor | 1 | PC | One for controlling LED lamp, the other for open door alarm |
| 5 | LED Lamp | 1 | PC | DC48V |
| 6 | Package | 1 | Set | Wooden Case |
3. Cabinet Description
3.1 Cabinet Material
The cabinet is made of galvanized steel, with double walls, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm. There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF. The cabinet is assembled type.
3.2 Cabinet Structure
The cabinet is equipment cabinet, including 19” equipment installation rack, with air conditioner on cabinet door.
3.3Cabinet Door And Lock
The cabinet door uses embedded structure. The door opening angle is larger than 110°and the door limit device can limit the opening angle. The lock is theftproof three point lock, supporting padlock. Each cabinet door include open door sensor, working together with the environment monitoring unit.
4.Cabinet Features
4.1 The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.
4.2 The cabinet cooling uses air conditioner.
4.3 Including -48VDC illumination lamp.
4.4 The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. At the bottom of the cabinet, there are entrance holes individually for power cable, signal cable and optical cable.
4.5 All the cables, sealing and heat insulation used in the cabinet are made from flame retardant materials.
4.6 The cabinet includes 19” standard installation rack.
5. Cooling System

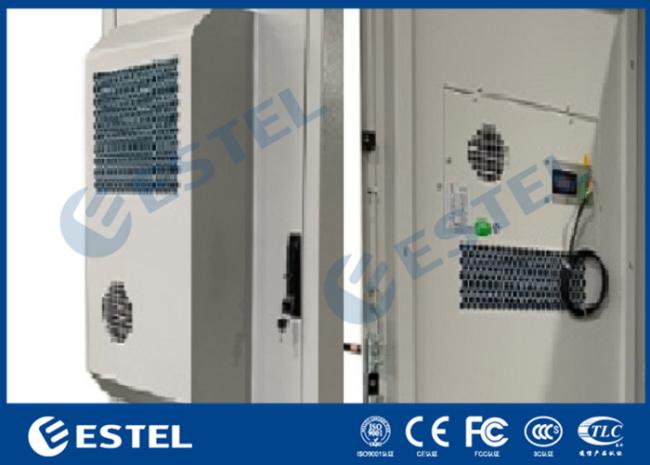

AC220V air conditioner with 1000W cooling capacity installed on the front door.
6. Oil socket
There is one oil socket on the side of the cabinet.

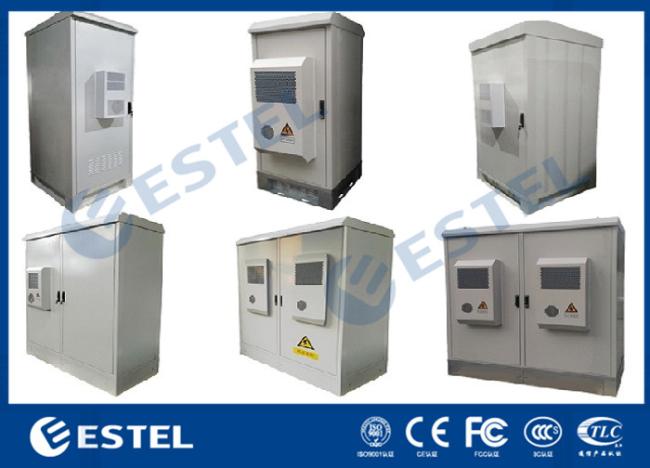

7.Cabinet Related Products
