Galvanized Steel Outdoor Electronic Equipment Enclosures 2 bays with middle division plate

Galvanized Steel Outdoor Electronic Equipment Enclosures 2 bays with middle division plate

1. Cabinet Description

This series outdoor telecom cabinet offers standard 19” racking rails and battery shelves, is a new design for telecom projects and surveillance projects. These enclosures have provision of floor mounting. This series enclosures offer all the protection needed for outdoor requirements.Ultimate security is provided by a three-point locking system.

2. Cabinet Key Features

2.1 Highly stable and rigid construction,W*D*H 1600*800*1800mm
2.2 Good quality galvanized steel

2.3 Dustproof, sunproof and rainproof used in outdoor environment.

2.4 Including 19” standard installation rack and the battery shelves

2.5 The cabinets system can support Electrical equipments, PDU, Mornitoring system and etc.
2.6 The cabinet cooling uses air conditioners and fans.

2.7 Switching mode power supplies are available upon request.

2.8 Including -48VDC illumination lamp.

2.9 The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. At the bottom of the cabinet, there are entrance holes individually for power cable, signal cable and optical cable.

2.10 All the cables, sealing and heat insulation used in the cabinet are made from flame retardant materials, which comply with GB5169.7 test A

2.11 Surface treatment: degreasing, derusting, rustproof phosphating (or galvanizing), powder coated.

2.12 IP55 protection level.

2.13 Floor mounting type

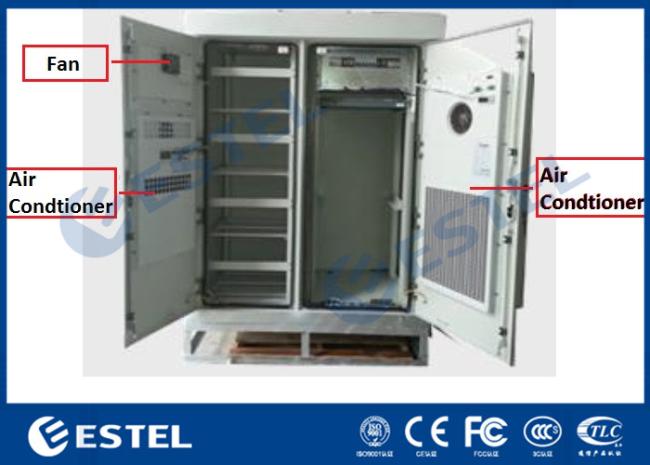

3. Cooling System

3.1 There are two air conditioners installed on the two front doors.

      500W cooling capacity air conditioner is installed on the door of the left compartment for batteries

     1500W cooling capacity air conditioner is installed on the door of the right compartmen for equipments..

3.2 There is 1 fan on the door of the left compartment.

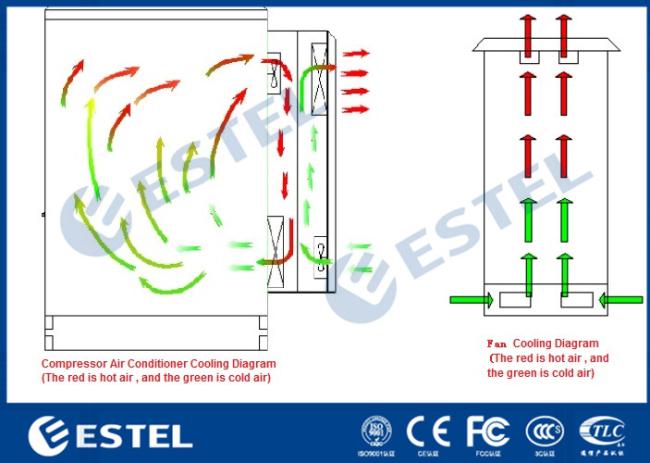

4. Cooling Diagram

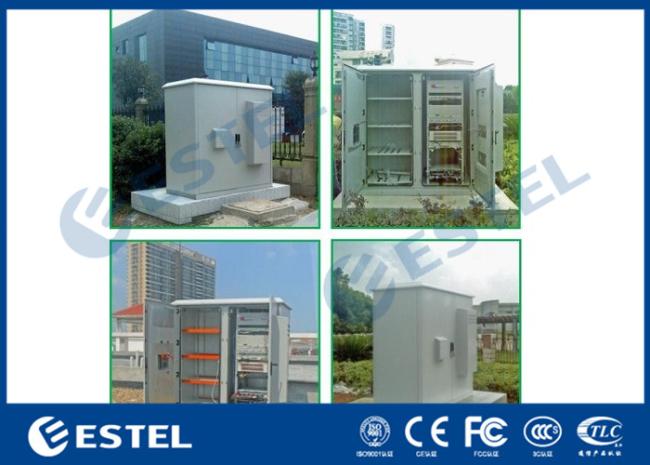

5. Cabinet Applications
