Fireproof Material Double Wall Air Conditioner Cooling Galvanized Steel Outdoor Telecom Cabinet 2 Doors

1. Cabinet Advantage

• Strong rack inside to be equipped with telecom equipments, power source, battery, temperature control device and other attachments.
• Digital display the temperature-setting, temperature alarm, temperature parameters inside and outside, and all kinds of other alarm information, etc.
• Cabinet made of low thermal conductivity and fireproof material for heat insulation fireproof.
• Can be installed in any difficult places include the top of mountain and the roof of buildings.
• Wind-proof, sand-proof, rain-proof, sun-proof and anti-theft, protection level IP55.
• Support custom-made.

2.  Cabinet Parameters

• The cabinet has 19” mounting rack inside,42U.
• The cabinet is one compartment structure.
• The cabinet is an outdoor cabinet with protection grade of IP55.
• The bottom of the cabinet is provided with cable inlet.
• Cabinet material: galvanized steel, double wall,with heat insulation.
• External dimension of cabinet: W × D × H 700× 900 × 2100mm.
• There are 4 pairs of L-shaped brackets inside the cabinet.
• The cabinet is equipped with one front door, three-point lock and padlock.
• Cabinet with ground bar inside.
• One air conditioner is installed on the front door of the cabinet. Cooling capacity of air conditioner: 1500W; 48VDC.
• The cabinet is equipped with  AC PDU

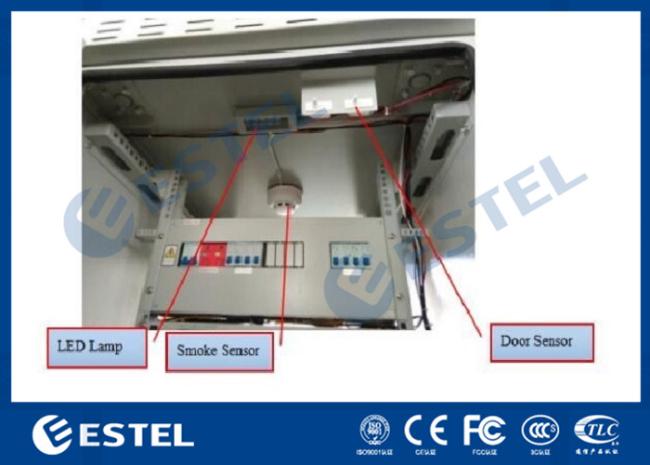

• The cabinet is equipped with one LED lamp, 48VDC. When opening the door, the light will turn on automatically. When the door is closed, the light will turn off automatically.
• Cabinet with 1 environmental monitoring unit, 19 inch, 1U, input voltage: 48VDC, supporting SNMP communication. With 1 access sensor, 1 water immersion sensor, 1 smoke sensor, 1 temperature and humidity sensor, 1 vibration sensor.

3. Cabinet Door And Door limit

3.1The cabinet door uses embedded structure.

There’s open door alarm sensor, which works together with the environment monitoring unit.

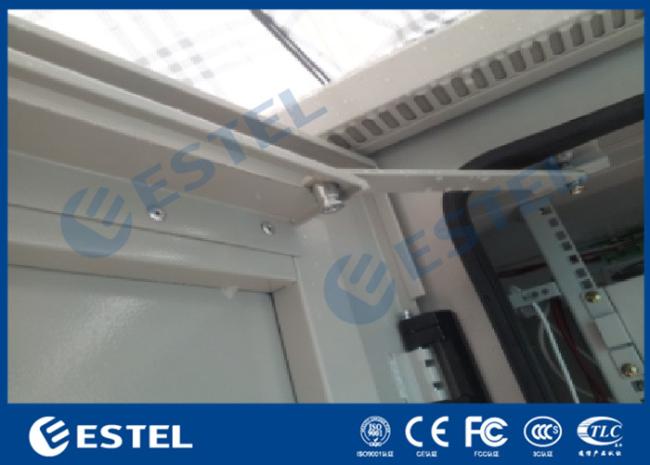

3.2The door opening angle is larger than 110° and the door limit device can limit the opening angle.

(1)The door limit device can limit the door position when it is open.

(2) The door limit function is automatically activated when the door is open, and should be canceled manually when the door is closed.

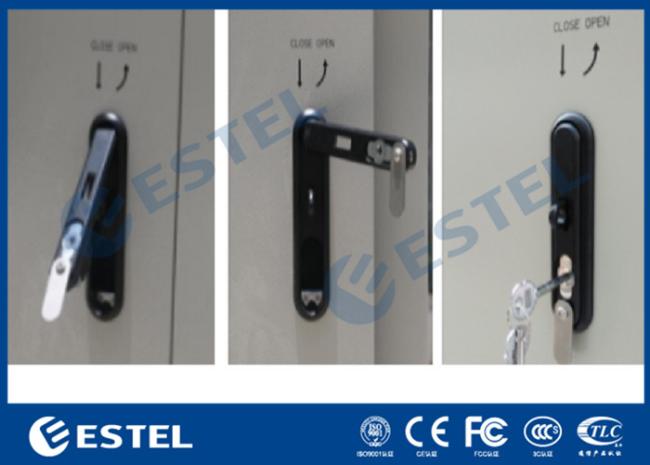

3.3 The lock is theftproof three point lock.

4. Cooling System

One air conditioner is installed on the front door of the cabinet. Cooling capacity of air conditioner: 1500W; 48VDC.

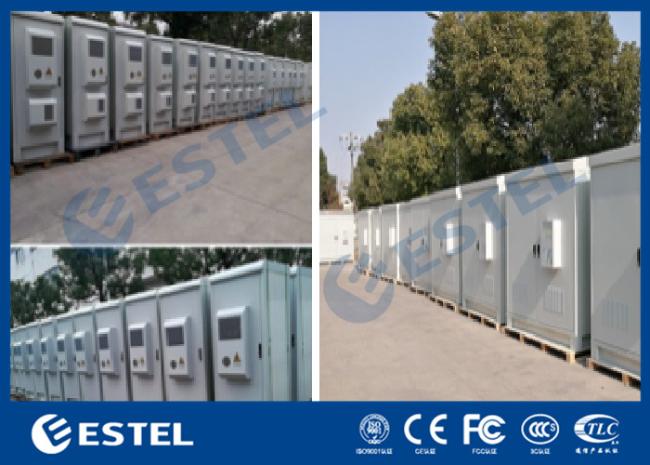

5. Prodcution Pictures
