Heat Insulation Galvanized Steel 27U Outdoor 19 Rack Enclosure
27U 19 Inch Rack Outdoor Telecom Cabinet Galvanized Steel Single Wall Heat Insulation
1. Cabinet Description
Outdoor Cabinets are designed to protect your sensitive network equipment from harsh environments. We have included features to safeguard it from the elements, while still keeping the equipment secure and well ventilated.The outdoor cabinet is secured with a 3 point anti theft door lock system. The cabinet uses air conditioners and fans as cooling system.
2. Cabinet Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension |
External Dimension W×D×H 750×750×1500mm |
| Layout | One compartment | |
| Equipment Installation Method | 19” standard rack,27U | |
| Door | With one front door and one back door; with three point lock for outdoor cabinet (support padlock) | |
| Material |
Galvanized steel,single wall with heat insulation |
|
| Structure | Assembled | |
| Ingress Protection | IP55 | |
| Temperature Control | Cooling | Air conditioners and fans |
| Lighting | LED lamp | 48V LED lamp |
| Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
| Storage Temperature: -50°C ~ + 70°C | ||
| Transport Temperature: -50°C ~ +70°C | ||
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1124 × (1±5%)W/m2 |
3. Cabinet Features
3.1 External Dimension is W×D×H 750×750×1500mm
3.2 Galvanized steel,single wall with heat insulation
3.3 Anti-theft three point lock
3.4 The cabinet includes 19” standard installation rack.
3.5 The cabinet cooling uses 2 air conditioners and 2 fans.
3.6 Including -48VDC illumination lamp.
3.7 The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding.
3.8At the bottom of the cabinet, there are entrance holes individually for power cable, signal cable and optical cable.
3.9 The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.
3.10 All the cables, sealing and heat insulation used in the cabinet are made from flame retardant materials, which comply with GB5169.7 test A
3.11 IP55 protection level.

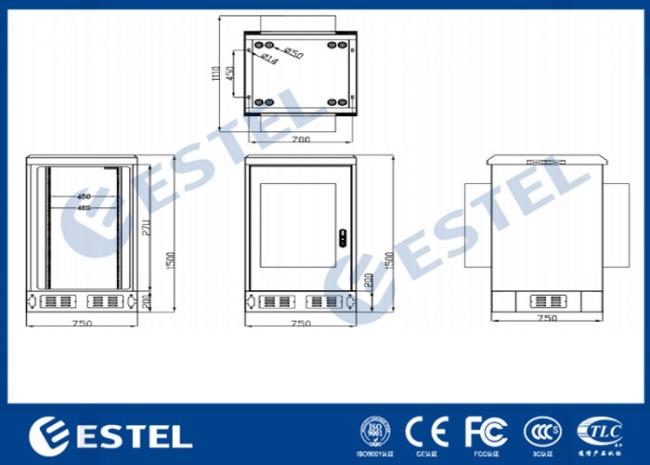

4. Cabinet Dimension

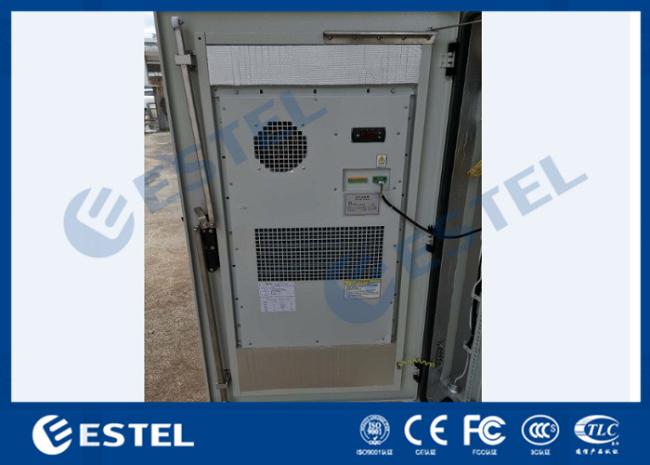

5. Cabinet Cooling System
The cabinet cooling uses 2 air conditioners and 2 fans.
The air conditoners are installed in the front door and rear door.
The fans are installed on the top cover.
6. Leading Time
Usually about 15-20 days. The exact lead time need to be confirmed according to the quantity of order.
