IP55 19" Rack Heat Insulation Outdoor Communication Cabinets
IP55 Dustproof Electronical Cabinet Galvanized Steel Heat Insulation
1. Cabinet Features
1.1 External Dimension is W×D×H 750×750×1750mm
1.2 Galvanized steel,single wall with heat insulation
1.3 Anti-theft three point lock
1.4 The cabinet includes 19” standard installation rack.
1.5 The cabinet cooling uses 2 fans.
1.6 Including -48VDC illumination lamp.
1.7 The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding.
1.8At the bottom of the cabinet, there are entrance holes individually for power cable, signal cable and optical cable.
1.9 The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.
1.10 All the cables, sealing and heat insulation used in the cabinet are made from flame retardant materials, which comply with GB5169.7 test A
1.11 IP55 protection level.
2. Cabinet Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension |
External Dimension W×D×H 750×750×1750mm |
| Layout | One compartment | |
| Equipment Installation Method | 19” standard rack | |
| Door | With one front door with three point lock for outdoor cabinet (support padlock) | |
| Material |
Galvanized steel,single wall with heat insulation |
|
| Structure | Assembled | |
| Ingress Protection | IP55 | |
| Temperature Control | Cooling | 2 fans |
| Lighting | LED lamp | 48V LED lamp |
| Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
| Storage Temperature: -50°C ~ + 70°C | ||
| Transport Temperature: -50°C ~ +70°C | ||
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1124 × (1±5%)W/m2 |
3. Components Installation

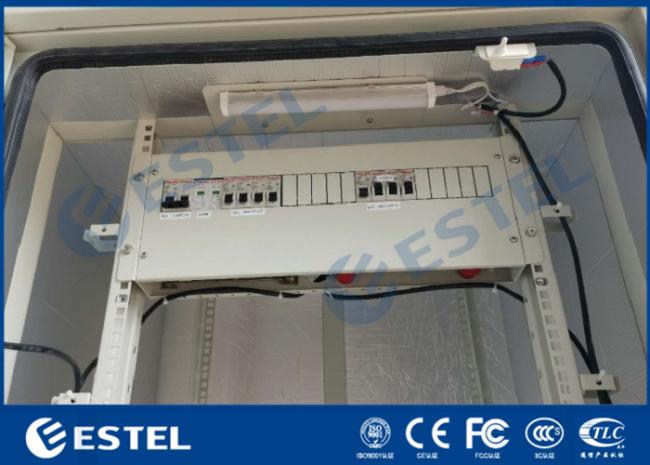

3.1 PDU is installed on 19” rack.
Class B lightning protection: 60KA*1;
AC Input: 63A/2P*1;
AC Output: 16A/1P*4;
DC Output: 16A/1P*4;
Input Voltage: AC220V 50Hz.
3.2 The cabinet cooling uses 2 fans,insatlled on the front door

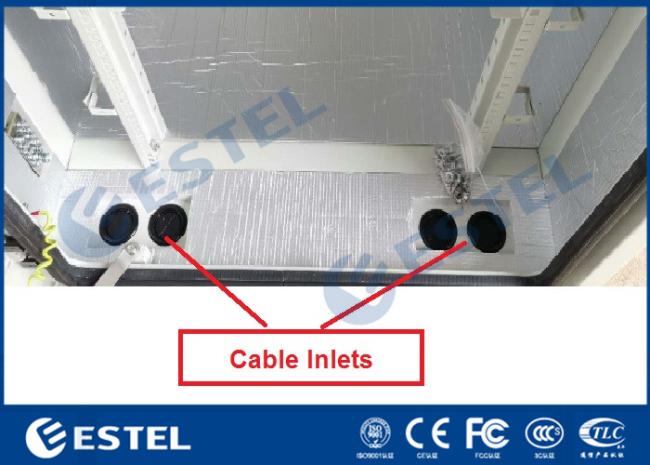

4. Cable Inlet
All feeder cable and other external cables all use bottom wiring method.
There are 4 cable inlets at the bottom of the cabinet.
5. Cabient Packing
6. Our Delivery Agent
The goods can be shipped by sea, by air, by courier, by land, by train, etc.
Besides the following delivery agent, we can also look for the delivery agent with the best price in china if you need us to do for you.
