Two Doors IP55 19" Rack 42U Outdoor Communication Cabinet

Price Negotiable

Price: 358-2143 usd

MOQ: 1 set

Delivery Time: 15-20 working days

Brand: ESTEL

Product Description

19 Inch Rack 42U Outdoor Communication Cabinet Two Doors IP55

1. Cabinet Advantage

High reliability, maintenance-free, fast assembly, suitable for harsh environment
High integration, small footprint, short construction period, reduce the construction cost
Improved thermal design, efficient energy saving, effectively extending the battery life
Support for fast assembly, ready for the summit, multi-scene roof installation
Dynamic environment monitoring system, full alarm signal detection, real-time alarm information reported

2. Cabinet Parameters

Item	Type	Technical Parameter
Structure	Dimension	External Dimension W×D×H 900×900×2100mm
	Layout	One compartment
	Equipment Installation Method	19” standard rack,42U
	Door	One front door and one back door ,with three point lock for outdoor cabinet (support padlock)
	Material	Galvanized steel,single wall
	Structure	Assembled
	Ingress Protection	IP55
Temperature Control	Cooling	Air conditioner
Lighting	LED lamp	48V LED lamp
Temperature	Temperature	Working Temperature: -40°C ~ +55°C
		Storage Temperature: -50°C ~ + 70°C
		Transport Temperature: -50°C ~ +70°C
Humidity	Relative Humidity	5% ~ 100%
Pressure	Air Pressure	62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
Radiation Intensity	Solar Radiation Intensity	1124 × (1±5%)W/m2

3. Cabinet Features

External Dimension is W×D×H 900×900×2100mm
Galvanized steel,single wall with heat insulation
Anti-theft three point lock
The cabinet includes 19” standard installation rack.
The cabinet cooling uses one air conditioner.
Including -48VDC illumination lamp.
The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding.

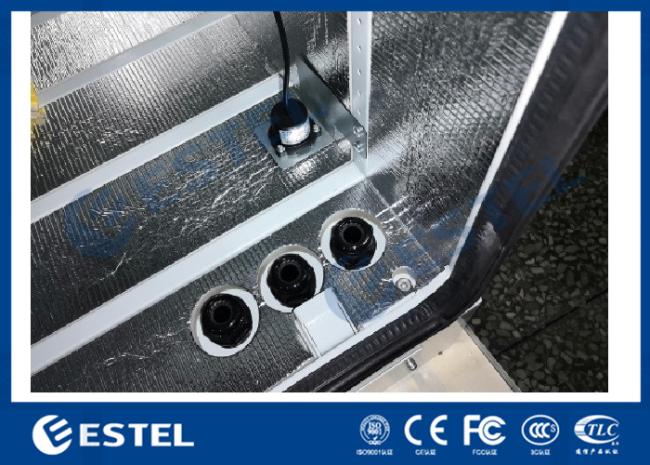

At the bottom of the cabinet, there are entrance holes individually for power cable, signal cable and optical cable.
IP55 protection level.
