One Compartment 62kpa 48V LED IP55 Outdoor Rack Cabinet
Price:
358-2143 usd
MOQ:
1 set
Delivery Time:
15-20 working days
Brand:
ESTEL
Product Description
Air Cooler IP55 Outdoor Rack Cabinet Outdoor Network Cabinet
1. Description
The cabinet is one compartment, double-wall cabinet. The cabinet cooling uses AC air conditioner and fans, to ensure the equipments operate normally at stable temperature range, so as to make the service life of the equipments much longer and their performance more stable.
2. Technical Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension |
External Dimension: H*W*D 1650*800*1000mm Internal Dimension: H*W*D 1350*740*950mm |
| Layout | 1 compartment | |
| Equipment Installation Method | 19” rack | |
| Door | With one front door and one back door, and special lock for outdoor cabinet (support padlock) | |
| Material | Galvanized steel; 1.5mm thick outer plate, 0.8mm thick inner plate | |
| Heat Insulation | There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF. | |
| Structure | Welded | |
| Ingress Protection | IP55 | |
| Temperature Control | Cooling | AC220V air conditioner and DC48V fans |
| Lightning Proof | Grade B lightning proof | Nominal: 60KA, Max.: 100KA |
| Lighting | LED lamp | 48V LED lamps (immovable), with protective circuit breaker |
| Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
| Storage Temperature: -50°C ~ + 70°C | ||
| Transport Temperature: -50°C ~ +70°C | ||
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1120 ×(1±5%)W/m2 |
3.Accessories List
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Telecom Cabinet | 1 | Set | (1) External Dimension: H*W*D 1650*800*1000mm; Internal Dimension: H*W*D 1350*740*950mm. (2) 1 compartment; (3) With one front door and one back door, and special lock for outdoor cabinet (support padlock) ; (4) Material: galvanized steel; 1.5mm thick outer plate, 0.8mm thick inner plate; |
| 2 | Air Conditioner | 1 | Set | Cooling capacity: 1.5KW, AC220V, 50HZ; |
| 3 | 110V TO 220V INVERTER | 1 | Set | Used for air conditioner input |
| 4 | Auxiliary Direct Ventilation Fans | 2 | PC | 12038 DC48V |
| 5 | Environment Monitoring Unit | 1 | Set | 2U, Model: SM2200 |
| 6 | Water Sensor | 1 | PC | |
| 7 | Smoke Sensor | 1 | PC | |
| 8 | Temperature and Humidity Sensor | 1 | PC | |
| 9 | Door Sensor | 4 | PC | Control LED lamps |
| 10 | LED Lamp | 2 | PC | DC48V |
| 11 | Embedded Telecom Power System (UPS) | 1 | Set | DC48V, 60A, 3210W; |
| 12 | Power Distribution Unit | 1 | Set | Grade B Lightning Proof AC Input: 63A/2P *1; AC Output: 16A/1P*4; DC Output: 16A/1P*4 |
| 13 | Lead Acid Battery | 4 | SET | 12V 150AH; Model: SP12-150 |
| 14 | Package | 1 | Set | Wooden Case |

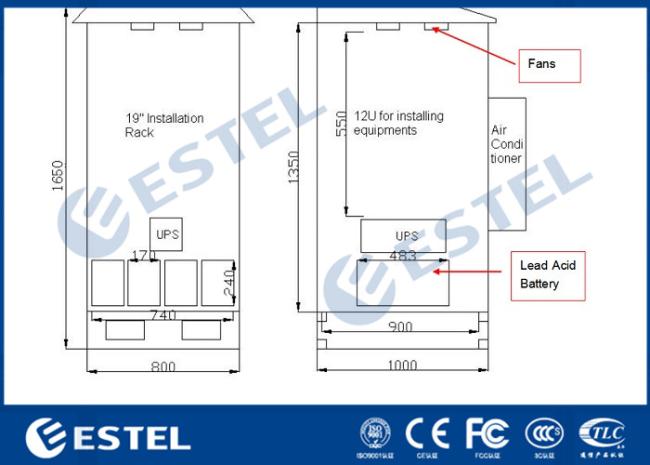

4. Cabinet Dimension

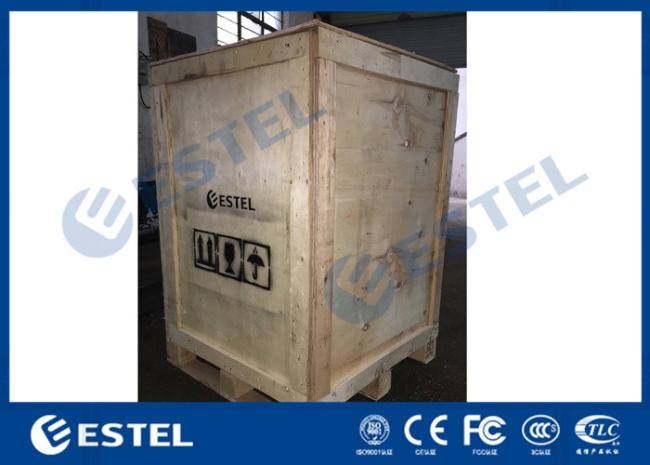

5. Cabinet Package
Wooden case with pallets
