800W Heat Exchanger 30U IP55 Outdoor Rack Cabinet
800W Heat Exchanger IP55 Outdoor Rack Cabinet Outdoor Telecom Cabinet
1. Cabinet Description
The cabinet is one compartment, double-wall cabinet. The cabinet cooling uses heat exchanger, to ensure the equipments operate normally at stable temperature range, so as to make the service life of the equipments much longer and their performance more stable.
2. Technical Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension |
915×915×1829mm (W×D×H) |
| Layout | 1 compartment | |
| Equipment Installation Method | 19” rack,30U | |
| Door | With one front door , and special lock for outdoor cabinet (support padlock) | |
| Material | Galvanized steel; double wall | |
| Heat Insulation | There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF. | |
| Structure | Welded | |
| Ingress Protection | IP55 | |
| Temperature Control | Cooling | 800W heat exchanger |
| Lighting | LED lamp | 48V LED lamps (immovable), with protective circuit breaker |
| Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
| Storage Temperature: -50°C ~ + 70°C | ||
| Transport Temperature: -50°C ~ +70°C | ||
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1120 ×(1±5%)W/m2 |
3.Cabinet Features
(1) External size of the cabinet: 915×915×1829mm (W×D×H)
(2) Equipment rack: standard 19″ rack with 30U space
(3) Protection rating: IP55
(4) Cooling system: 800W heat exchanger, installed on the door of the cabinet
(5) Cabinet grounding hardware
(6) Material: steel
(7) Structure: double walls
(8) Insulation: with high-density foaming boards between the two walls.
(9) Access door with three point lock
(10) Environmental seals, IP55
(11) Surface coating: outdoor anti-corrosion powder
(12) Color: grey (RAL7035)

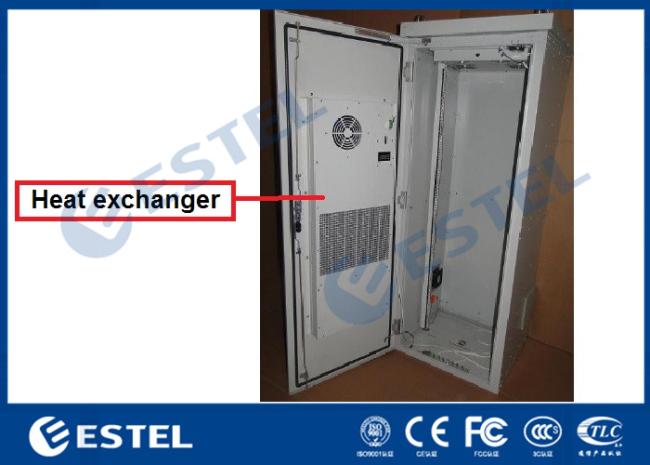

4. Cabinet Cooling System

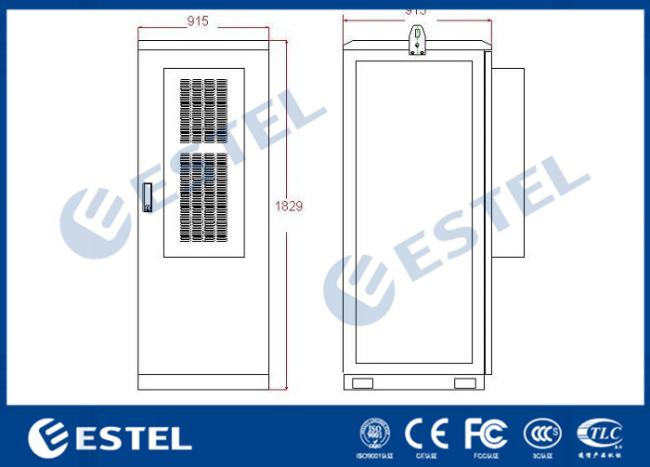

5. Cabinet Dimension
