1.5mm 15U IP55 Outdoor Solar Cabinet For 19 Inch Equipment
15U IP55 Outdoor Solar Cabinet for 19 inch Equipment With Front And Rear Door
Model: ET7077100-EQB
Introduction
The outdoor solar cabinet is new generation designed to fit customer needs, configuration flexibility and supports variety of applications. The cabinet is well suited for power, batteries and telecom equipment.
The outdoor solar cabinet is designed to protect equipments from external climate threats such as high temperature, snow, rain, wind etc.
Applications
The outdoor cabinet is well suited for a wide range of telecom applications such as:
• Radio access networks (2G, 3G, 4G/LTE/WiMax)
• Optical networks
• Cable TV
• DSL
• SCADA
• Solar power for telecom energy solution
The cabinet works very well as stand-alone power and/or battery backup solution and provides additional space for telecom equipment.
Features
● 19” rail, 15RU, to fit 19” equipment
● Dust and water protection rate: IP55
● Single bay cabinet suitable for: DC power, battery backup, telecom equipment, or combination of above
● Galvanized steel construction
● Powder coat paint, corrosion resistant
● Thermal management: fan and filter
● Fan thermostat to control fan start working temperature
● Cabinet have two doors: front door and rear door
● Wide range of options:
Thermal insulation
Door switch
Document holder
Smoke detector
AC service socket
Service light
And more.
Technical Specs
| Item | Type | Technical Parameter |
| Physical Specifications | Exterior Dimensions (W×D×H) | 700×770×1000mm |
| Weight | 83KG | |
| Rack Space | 15U | |
| Thermal Management System | Thermal Management | Fan and filter. With optional heater. |
| Construction | Skin Material | 1.5mm thick electro-galvanized steel (corrosion-resistant) |
| Frame Material | 2.0mm galvanized steel | |
| Powder Coat Paint | Outdoor Polyester Light Gray RAL7035 coating | |
| Door | Two doors | One front door and one rear door |
| Latches | Four point latched | |
| Gasket | Door gasket rated for outdoor use | |
| Door Stop | Wind latch to hold door during maintenance (120⁰) | |
| Other Specs | Thermal Insulation | Optional thermal insulation |
| Cable Entry |
Bottom back cable access through 6×PG29 glands. Various glands available upon request. |
|
| Plinth | Footprint(W×D): 700×770mm, height:154mm | |
| Other Options | Door switch, document folder, smoke detector, AC service socket, service light, etc. |

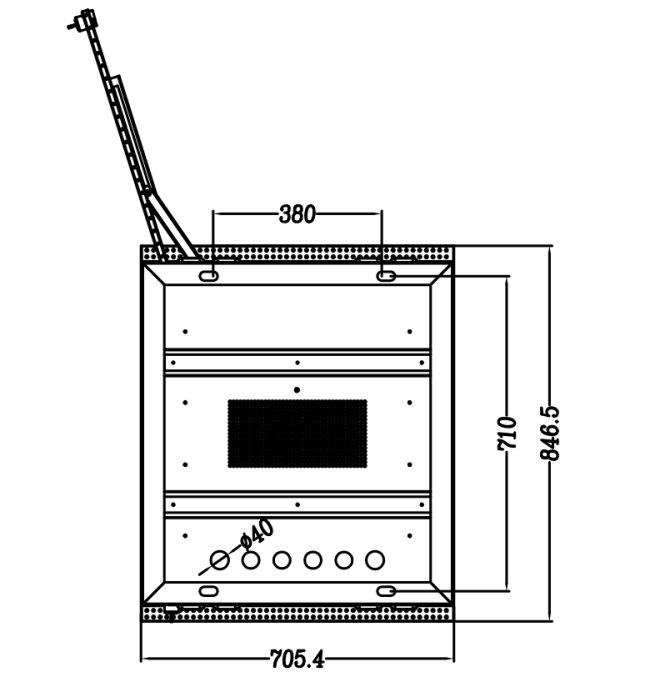

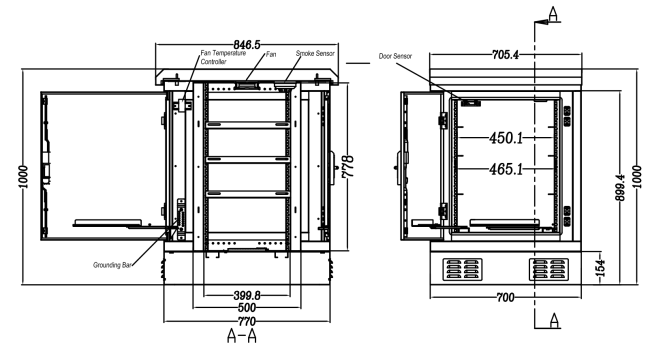

Dimension
