PEF Insulation Self Cooling Telecom Street Cabinet 650×650 20U
Self Cooling Outdoor Telecom Street Cabinet 19 Inch Mounting Equipment 650×650 20U
ADVANTAGES
- Very good mechanical properties and high resistance to shape distorsion.
- With water repellent injected seal.
- Door retained with stoppers.
- The enclosure includes anti-vandalism locks and handles suitable for semicylindrical profile locks.
- Delvalle can adapt this design to the measurements required by the client, retaining the fundamentals of insulation, sealing and safety.
- Strength, durability and long life.
- High resistance to vandalism.
- Specially designed for urban and interurban areas, storms or highways.
- High resistance to corrosion and wear.
- Large space inside for Rack equipments.
APPLICATIONS
Our design, finishing and sealing make it ideal for outdoor use. As its name suggests its placement is usually on roads, signalling or lighting, and use in weather stations, telecommunications,telephones, fibre optics and video surveillance in urban or interurban areas.
CABINET PARAMETER
Cabinet size: 1200 * 650 * 650mm (HxWxD)
Cabinet material: galvanized steel plate + PEF insulation
Maintenance mode: front door access
Installation method: landing
Rack size: 19 "rack
Protection grade: IP55
Working temperature: - 40 ℃～ + 75 ℃
Cooling mode: thermostatic air conditioning

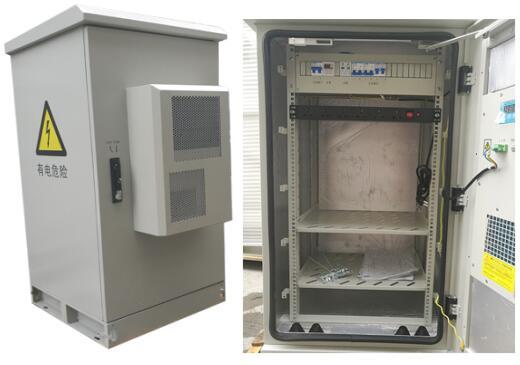

PRODUCT PICTURE

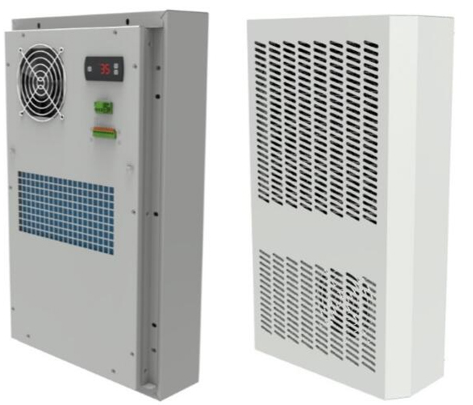

OOLING SYSTEM- AC220V 500W AIR CONDITIONER
The air conditioner is one kind of refrigeration product self-developed for cabinet. It is applicable in the place where the cabinet internal heat is very large, the internal electronic equipment is sensitive to the environment temperature and which should be isolated internally and externally completely. This product has multiple functions, high reliability, and has the feature that it can start to work without complex debugging after powering.
| Item | Name | Unit | Parameter |
| Dimension and installation | Body outline dimension (height*width*depth ) | mm | 550*320*169 |
|
Outline dimension including flange(height*width*depth ) |
mm | 582*352*169 | |
| Weight | Kg | 12.7 | |
| Installation method | Door Mounted | ||
| Installation method | Outdoor | ||
| Environment and protection | Working environment temperature | ℃ | -40 to +55 |
| Noise | dB(A) | 54 | |
| IP grade | IP55 | ||
| Refrigerant | R134a | ||
| ROHS certification | yes | ||
| Performance | Input voltage range | 220±15%VAC~50Hz | |
| Refrigerating capacity(L35/L35) | W | 500 | |
| Rated Refrigerating input power(L35/L35) | W | 285 | |
| Rated Refrigerating current (L35/L35) | A | 1.3 | |
| Maximum Refrigerating current | A | 1.95 | |
| Heat capacity(optional) | W | 500 | |
| Air Volume of Inner Circulation | m3/h | 320 | |
