Double Wall Sandwich Structure Outdoor Power Cabinet IP55
Outdoor Constant Temperature Power Cabinet Front Back Door Double Wall Sandwich Structure Panel Air Conditioner Cooling
Application
Our cabinet design, finishing and sealing make it ideal for outdoor use.As its name suggests its placement is usually on roads, signalling or lighting, and use in weather stations, telecommunications, telephones, fibre optics and video surveillance in urban or interurban areas.
Introduction
The product is composed by cabinet industrial air conditioning, power distribution unit and environment monitoring system. User can install their 19” telecom equipment and battery. The cabinet adopts 1.5mm thickness galvanized steel frame and 1.0mm thickness EPS Sandwich structure panel . The door is front opening and back opening, the front door is installed with industrial air conditioning temperature control. The overall appearance is beautiful, easy to maintain, constant temperature, and theft-proof, water- proof, sun-proof, and corrosion-proof, can meet the requirements of working in outdoor harsh environment.
Cabinet Configuration
| Model | ET7585200-UP-2D |
| Size H*W*D | 2000*750*850mm |
| Material | Sandwich structure panel, galvanized steel, double wall with heat insualtion |
| Internal rack | 19 inch rack and battery shelf |
| Protection class / Operating temperature | IP55/ - 40℃～+55℃ |
| Cooling method | AC220V 50Hz 1500W air conditioner |
| Maintenance mode/Installation | Open the front door and rear door, install on the ground |
| Other accessories |
Environment monitoring unit 19”,1U, SNMP Smoke sensor*1 Door sensor*2 Water sensor*1 Temperature&humidity sensor*1 Shock sensor*1 |
| Power distribution unit | Can be customized |

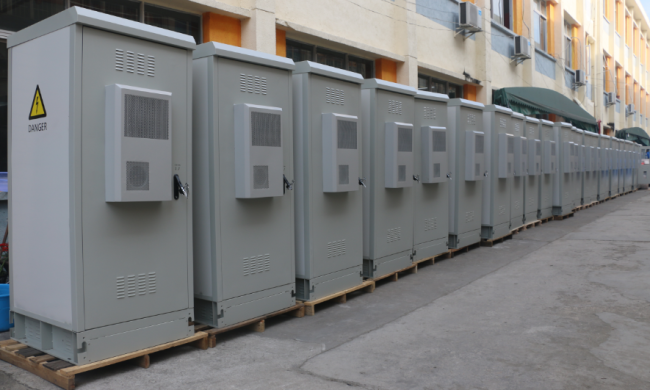

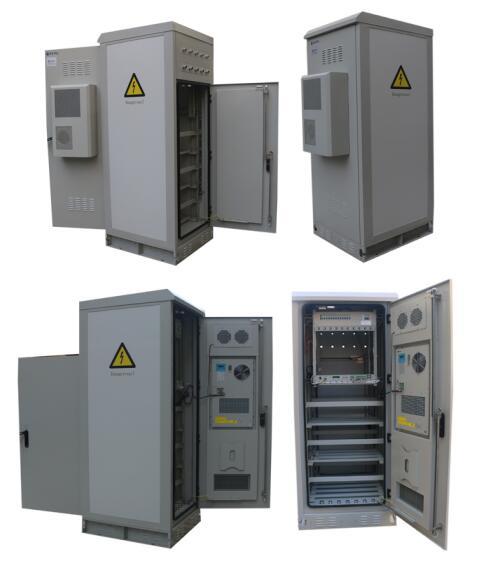

Cabinet Picture
Load Container

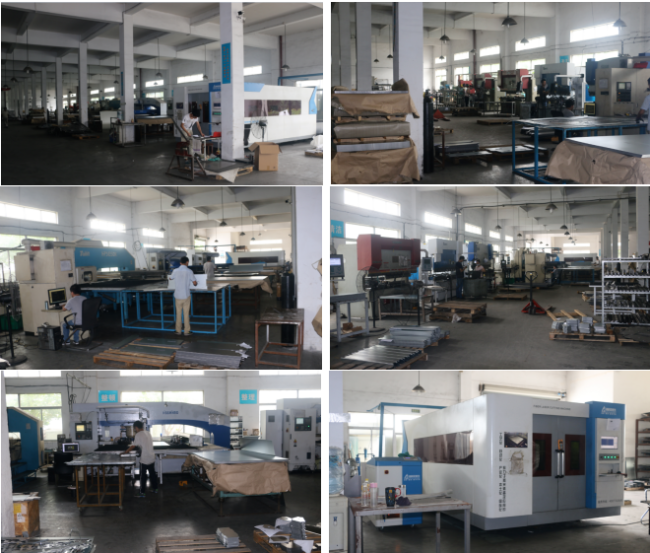

Our Factory
