Sandwich Structure Panel Weatherproof Powder Coating Outdoor Power Cabinet 19 Inch Equipment Battery Telecom Enclosure
1. Introduction of outdoor telecom cabinet
Outdoor telecom cabinet ET7575175-UP-2D includes 19 inch rack and battery shelf, user can install their 19” equipment and power system and battery. This cabinet has one front door and one rear door, it is very easy for user to install and maintain. The material adopts double layer galvanised steel with good antirust performance.
2. Technical data of outdoor cabinet
| Model | ET7575175-UP-2D |
| External Size | W×D×H 750×750×1750mm |
| Equipment Install Method | Standard 19” rack and 1 layer battery shelf |
| Door | Totally 2 doors: 1 front door and 1 rear door |
| Lock | Anti-theft three point lock, specially for outdoor cabinet(support padlock) |
| Material | Sandwich structure panel, double wall, galvanized steel, with heat insulation |
| Cabinet Installation method | Landing mount |
| Cooling |
4 fans with 1 temerature controller, 2 fans on the front door and 2 fan on rear door. Customers can set the fan starting temperature according to their own needs by temperature controller. |
| Cable Inlet | On the bottom front and back |
| Lifting Ear | 4 ears on the cabinet base |
| Earthing | Grounding copper bar |
| Working Temperature | -40°C～+75°C |
| Ingress Protection | IP55 |
| Relative Humidity | 5% ~ 100% |
| Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Solar Radiation Intensity | 1120 ×(1±5%)W/m2 |
- Ingress protection is IP55, we can provide IP65 cabinet based on client’s actual.
- Made of heavy gauge galvanized material.
- Front and rear doors use standard three-point anti-theft lock. The door lock forms an upper, middle and lower three-point locking structure. For the cabinet with large area, the locking effect is safe and reliable.
- Standard 19 inch mounting posts.comply with IEC60297.
- Doors secured with steel dead locking system lock (support PADLOCK)
- It is installed in the ground root or above ground column base system by "direct burying"
- Cable entry is via the base as standard with side or roof entry available upon request.
4. Advantage
- Double wall with heat insulation can protect inside equipment against sudden heat shock
- Multi-stage cleaning and pre-treatment prior to the application of a 120micron powder coating
- The cabinet structure have earthquake resistance function
- Outdoor cabinet is compact and durable, space layout is reasonable, greatly reducing the construction cost
- Waterproof, anti-corrosion, anti sand and anti ultraviolet, ensure cabinet can work longer in a harsh outdoor environment.
5. Applications
Our outdoor telecom cabinet is used for housing and protecting active communications, UPS, DVR and sensitive electronic equipment, it is suitable in the harsh outdoor environment. It can be used in the following places:
Communication station
Carpark
Trackside
Buildingtop
Mountain area
Public garden
Seaside
Street

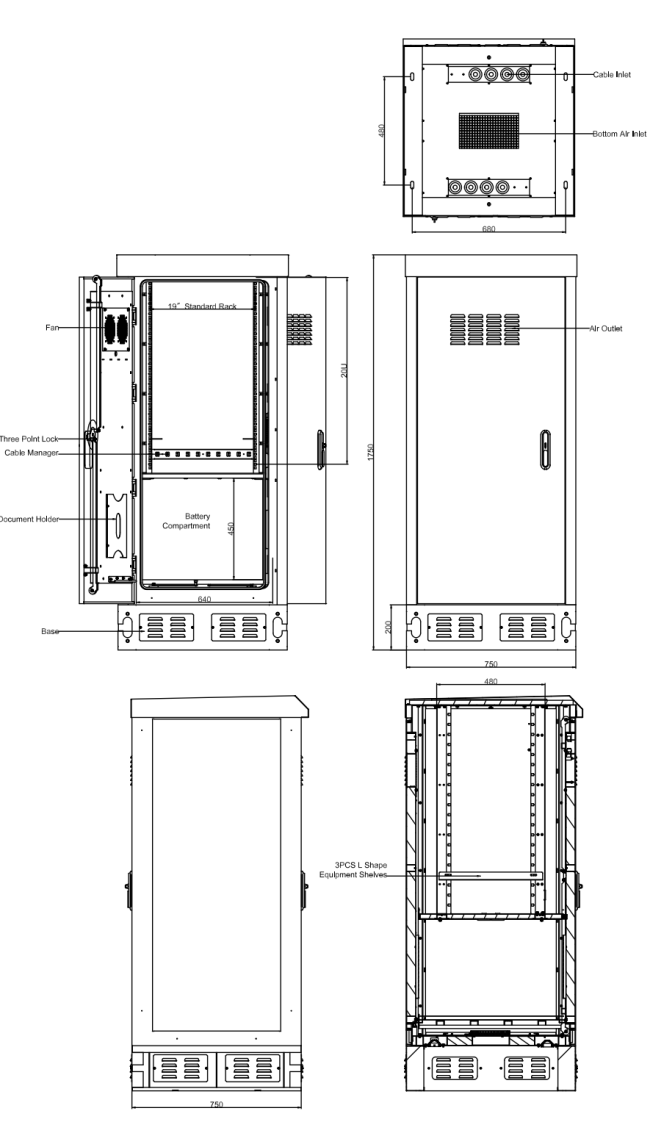

6. Size drawing

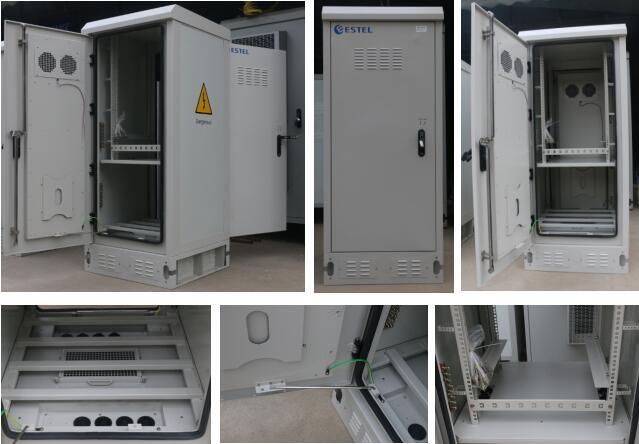

7. Cabinet details display
8. Package and Loading container
Cabinet package use free fumigation plywood which suitable for export. This package is anti moisture, anti impact and srong to ensure safe transportation.
