High Anticorrosive Stainless Steel Outdoor Telecom Cabinet Energy Saving
High Anticorrosive Stainless Steel IP56 Outdoor Telecom Cabinet With Energy Saving Frequency Conversion Air Conditioner
1. Outdoor telecom cabinet brief
outdoor telecom enclosure ET100100200-UP includes 19 inch rack and slideable battery tray, user can install their 19” equipment and power system and battery. This cabinet has one front door and one rear door, it is very easy for user to install and maintain. This cabinet use stainless steel material, have perfect anti-corrosion. And using energy saving and frequency conversion air conditioner, more power saving.
2. Technical parameter of outdoor cabinet
| Model | ET100100200-UP |
| External Size | W×D×H 1000×1000×2000mm |
| Equipment Install Method | Two compartments: the upper compartment for 33U 19" equipments, the lower compartment for one layer battery, 19” rack is fixed. Install 4 batteries on one slide tray, the slide tray on the 19" rack |
| Door | Totally 2 doors: 1 front door and 1 rear door |
| Lock | Anti-theft three point lock, specially for outdoor cabinet(support padlock) |
| Material |
Stainless steel, single wall with heat insulation Air conditioner's outer cover and all screws are stainless steel material |
| Cabinet Installation method |
Inluding base floor mount |
| Cooling | Cooling capacity: 1500W; Power Supply: DC48V |
| Cable Inlet | On the bottom |
| Lifting Ear | 4 ears on the cabinet base |
| Color | Grey, RAL7035 |
| Surface Treatment | Anti-corrosion outdoor powder coating |
| Earthing | Grounding copper bar |
| Sensors | 1 temperature sensor and 1 door sensor |
| Power Distribution Unit |
Grade B Lightning Proof AC Input: 63A/2P *1; AC Output: 16A/1P*5; DC Output: 63A/1P*5; Height: 4U |
| Lighting | DC48V LED lamp with lamp switch |
| Working Temperature | -40°C～+75°C |
| Ingress Protection | IP56 |
| Relative Humidity | 5% ~ 100% |
| Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Solar Radiation Intensity | 1120 ×(1±5%)W/m2 |
Ingress protection is IP56 based on client’s actual.
Front and rear doors use standard three-point anti-theft lock. The door lock forms an upper, middle and lower three-point locking structure. For the cabinet with large area, the locking effect is safe and reliable.
Standard 19 inch rack.
Doors secured with steel dead locking system lock (support PADLOCK)
It is installed cement base
Cable entry on the bottom with high sealing
4. Advantage
The cabinet structure have earthquake resistance function
Outdoor cabinet is compact and durable, space layout is reasonable, greatly reducing the construction cost
Waterproof, anti-corrosion, anti sand and anti ultraviolet, ensure cabinet can work longer in a harsh outdoor environment
Frequency conversion air conditioning, more energy saving
Slideable tray, convenient for battery maintenance
Stainless steel has better corrosion resistance
5. Applications

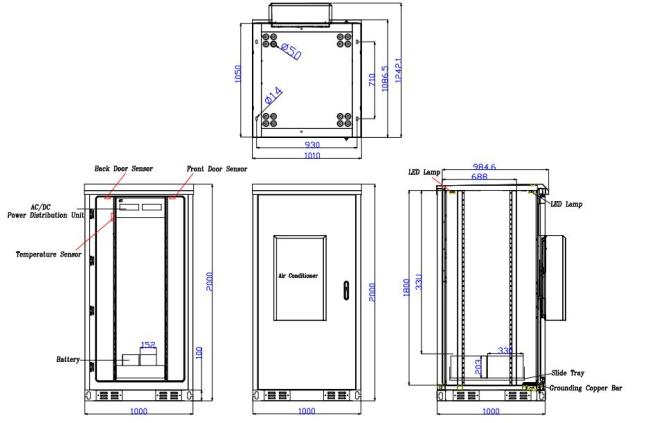

6. Size drawing
7. Cabinet details display

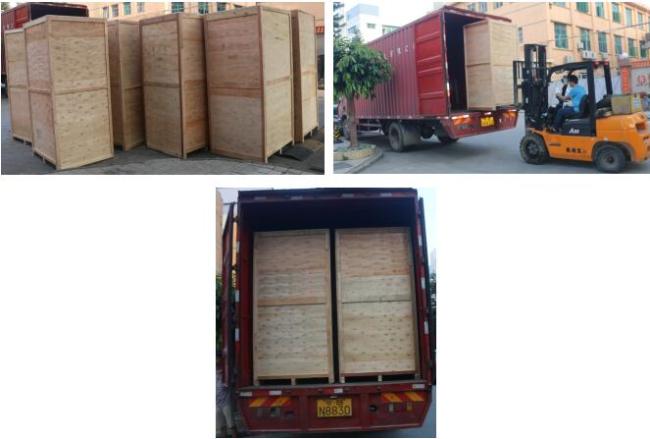

Cabinet package use free fumigation plywood which suitable for export. This package is anti moisture, anti impact and srong to ensure safe transportation.
