Thick Aluminum IP65 43U Outdoor Telecom Cabinet Waterproof Dustproof Equipment Enclosure
1. Outdoor equipment cabinet brief
Model ET6580217-EQ-2D is a 43U outdoor equipment cabinet. It adopts the front and back door opening mode, which makes the installation and maintenance of the equipment more convenient. At the same time, the cabinet is made of 2.5mm aluminum, which is light and corrosion resistant. Its IP grade can reach IP65.
2. Technical parameter of outdoor cabinet
| No. | Description | Specification |
| Specification of cabinet | ||
| 1 | Model | ET6580217-EQ-2D |
| 2 | Cabinet Dimension | W×D×H 650×800×2175mm |
| 3 | Available User Space | 43U standard 19” rack |
| 4 | Door | One front door and one back door |
| 5 | Lock | Outdoor special anti-theft three point locking |
| 6 | Material | Aluminum, single wall, 2.5mm thickness |
| 7 | Cabinet Installation method | Floor mount |
| 8 | Cable Entry | Located on the bottom |
| 9 | Lifting | 4 ears on the cabinet base |
| 10 | Earthing | Grounding copper bar |
| 11 | Working Temperature | -40°C～+75°C |
| 12 | Protection Level | IP65 |
| 13 | Relative Humidity | 5% ~ 100% |
| 14 | Atmospheric Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| 15 | Solar Radiation Intensity | 1120 ×(1±5%)W/m2 |
| Other accessories | ||
| 1 | LED light | AC220V 50Hz, with on/off button on the light |
| Packing | ||
| Wooden case | W×D×H 750×960×2360mm | |
The cabinet is suitable for outdoor, cold resistance, heat resistance, wind and rain resistance, dust resistance. Special aluminum material, more suitable for use in the seaside and humid and salty areas.
4. Feature
(1) The embedded structure door enhances the anti-theft effect.
(2) It is made of high corrosion resistant aluminum.
(3) Standard 19 inch rack.
(4) High protection grade IP65, waterproof and dustproof, effectively protect the equipment in the cabinet.
(5) The cabinet adopts three-point lock to prevent illegal entry.
5. Advantage
- Multi-stage cleaning and pre-treatment prior to the application of a 120micron powder coating
- The cabinet structure have earthquake resistance function
- Space layout is reasonable, greatly reducing the construction cost
- Waterproof, anti-corrosion, anti sand and anti ultraviolet, ensure cabinet can work longer in a harsh outdoor environment

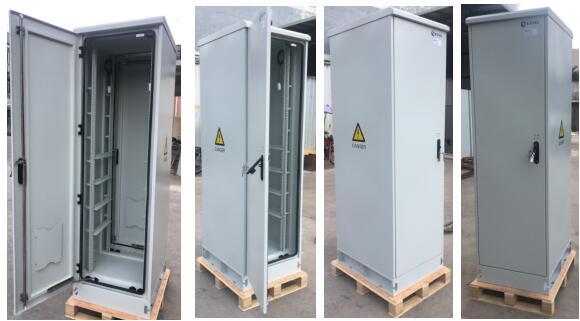

6. Cabinet display

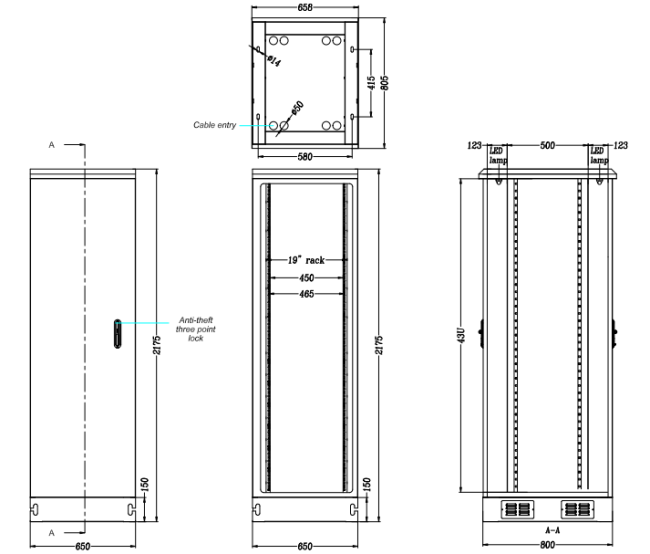

7. Cabinet Drawing
8. Packing and Shipping
Cabinet package use free fumigation plywood which is suitable for export. This package is anti moisture, anti impact and srong to ensure safe transportation.
