IP65 23U 19 Inch Outdoor Battery Enclosure Lithium-Ion Battery Cabinet With Power Distribution
Application
Outdoor telecommunication cabinet is widely used in the industries of power and energy, communication, broadcasting, traffic, climate and advertising and so on.
Waterproof outdoor telecommunication cabinet is composed of outer metal enclosure or rack and inner base station equipment or power equipment or temperature control equipment or transmission equipment or other assorted equipment.
Description
This cabinet can be used to accommodate lithium-ion batteries. Protection grade up to IP65. Dustproof and waterproof, suitable for outdoor environment. Cooling by fan.
Feature
●Short construction period, less land occupation, broader application and lower construction cost
● High integration, compact structure, easy installation and migration on later stage
●High-performance cooling solution, fan (other options: air conditioner and heat exchanger)
● Anti-theft three-point outdoor cabinet lock, excellent keyhole protection device
● Professional outdoor anti-corrosion powder coating, strong weather resistance
● All screws are stainless steel, high corrosion resistant.
Technical Parameter
| Configuration | Item | Technical Parameter |
| Cabinet Body | Model | ET7575131-EQ |
| Size | External Size: 1310mm×750mm×750mm(H×W×D) | |
| Component | The whole cabinet is composed of three parts: the top cover, the cabinet body and the base. The installation method is floor mount. | |
| Material | High quality galvanized steel plate, single wall, 1.5mm thickness | |
| Structure |
|
|
| Surface Treatment | Deoil, acid pickling, phosphating, electrostatic spraying, high temperature solidification | |
| Color | Anti-corrosion outdoor powder coating grey RAL7035 | |
| Ingress Protection | IP65 | |
| Working Temperature | -40℃～+75℃ | |
| Cooling Method | Air Conditioner | / |
| Heat Exchanger | / | |
| Fan | 2 DC48V fan, including one temperature adjustable controller | |
| Monitoring | Monitoring Unit | / |
| Smoke Sensor | / | |
| Vibration Sensor | / | |
| Water Sensor | / | |
| Temperature Sensor | / | |
| Door Sensor | Including one door sensor | |
| Other | / | |
| Lighting | LED Lamp | DC48V |
| LED Lamp Switch | Used for controlling lamp on/off | |
| Power Distribution Unit | DC Power Distribution Unit | Include power distribution frame, breaker spec is as follows: 63A/2P*2 6A/1P*3 |

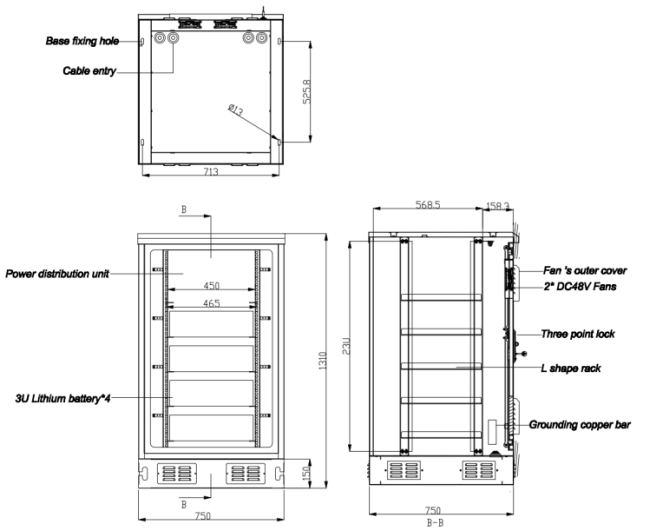

Cabinet Drawing
External size: W×D×H 750×750×1310mm

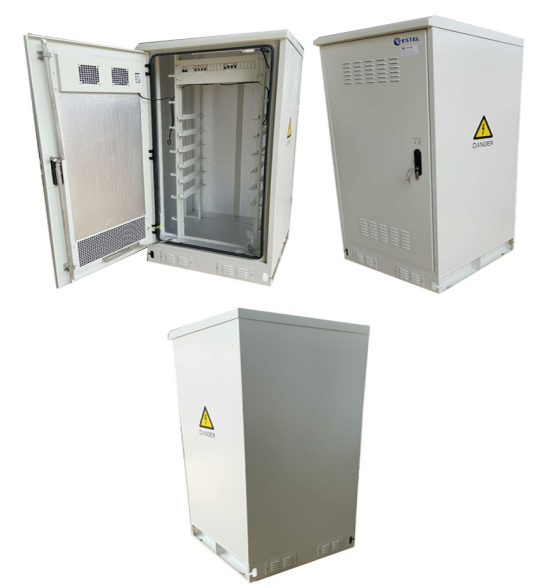

Cabinet Pictures:
