IP55 Waterproof Dustproof Outdoor Power Enclosure With Rectifer Battery

Price Negotiable

Price: 715-4286 usd

MOQ: 1PC

Delivery Time: 15 to 20 days

Brand: ESTEL

Product Description

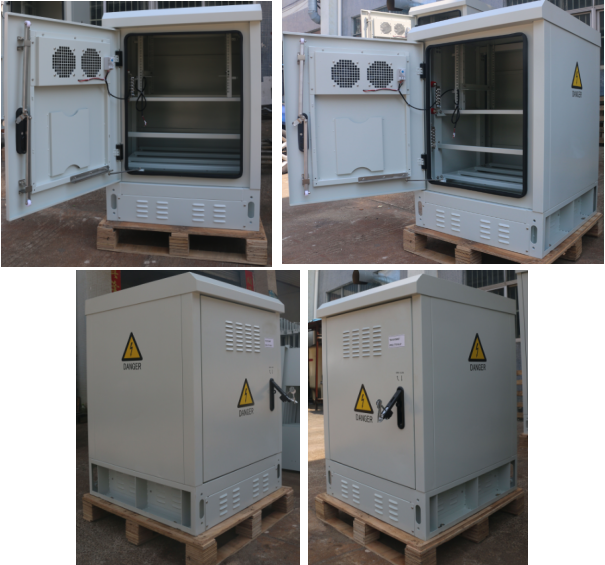

IP55 Waterproof Dustproof Outdoor Power Enclosure With Rectifer Battery

IP55 Waterproof Dustproof 900×750×1000mm Integrated Outdoor Power Cabinet Power Supply Enclosure With Rectifer Battery

1. Application scenarios and industries of outdoor power cabinet

Our outdoor telecom enclosure is used in many areas, such as below:

Telecommunication

Power

lndustry

Bank

Education

Security monitoring

Radio and television

Automatic system

Research institute

2. Feature

● Short construction period, less land occupation, broader application and lower construction cost

● High integration, compact structure, easy installation and migration on later stage

● High-performance cooling solution, options: air conditioner, heat exchaner and fan

● Anti-theft three-point outdoor cabinet lock, excellent keyhole protection device

● Perfect air duct design to avoid cold and hot air mixed flow effectively

● Professional outdoor anti-corrosion powder coating, strong weather resistance

● This cabinet integrated with rectifier system and battery

● IP grade is IP55, dustproof, waterproof

3. Technical data sheet

Configuration	Item	Technical Parameter
Cabinet Body	Model	ET9075100-UP

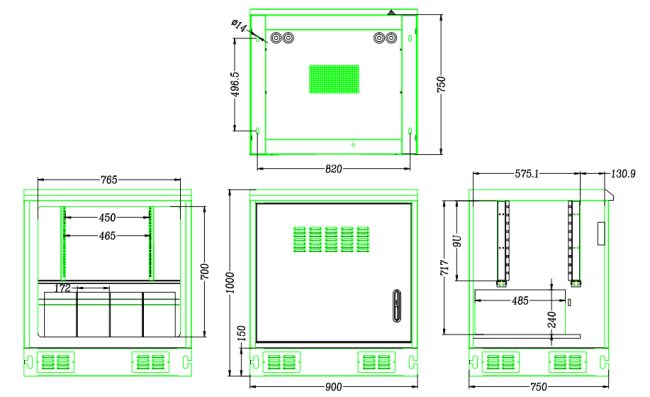

	Size	External Size: 1000mm×900mm×750mm(H×W×D)
	Component	The whole cabinet is composed of three parts: the top cover, the cabinet body and the base. The installation method is floor mount.
	Material	High quality galvanized steel plate, single wall
	Structure	One front door, hidden zinc alloy hinge; Outdoor special steel lock, lock core assemble protection cover, lock body assemble three point locking device Install the door limit / wind lock on the inside of the cabinet door; The grooved door is equipped with a seal rubber strip, clinging to the inner side of the door, waterproof and dustproof The air inlet and air outlet are all installed with a filter, and the filter can be cleaned and replaced. The upper part is 9U 19” rack for telecom rectifier, the lower part is one layer battery . Equipped with cable manager Reserving the cable entry hole at the bottom of the cabinet Including grounding copper bar.
	Surface Treatment	Deoil, acid pickling, phosphating, electrostatic spraying, high temperature solidification
	Color	Grey RAL7035
	Ingress Protection	IP55
	Working Temperature	-40℃～+75℃
Cooling Method	Air Conditioner	Optional
	Heat Exchanger	Optional
	Fan	2 DC48V fan, including temperature controller
Lighting	LED Lamp	DC48V
Lighting	LED Lamp Switch	Used for controlling lamp on/off
Telecom Power System	Rectifier system	DC48V GPE4860G 30A rectifier module1 Monitoring module1 Power distribution *1
Telecom Power System	Battery	12V 150Ah, 4PCS
