32U Heat Exchanger Cooling Sandwich Structure Outdoor Telecom Cabinet Telecommunication Equipment Enclosure
1. Applications
The Outdoor Telecom Rack Cabinet Is widely usea in wireless communication base station, such as 3G/4G/5G system. communication/network integrated service, access/ransmission Swiching station. emergency commurication/ramssion. Rail Certified Trackside Cabinets, etc
2. Description
As specialists in outdoor telecom, electronic and Industrial enclosures , ESTEL offers a wide variety of styles and confgurations to meet the needs of every application From standard. of-the-shelf models to completety custom and integrated outdoor rack telecom enclosures , our products are engineered. fabricated and assembled in our facility to meet exact customer specifications, our outdoor telecom rack’s, electronic and indusnial equpment enclosures are avalable in aluminum,galvanized steel and stainless steel, and can be finished in powder coat.
3. Technical sheet of outdoor communication cabinet
| No. | Description | Specification |
| Specification of cabinet | ||
| 1 | Model No. | ET9090175-EQ |
| 2 | Cabinet External Size | W×D×H 900×900×1750mm |
| 3 | Internal structure | Include 32U standard 19" rack |
| 4 | Door | One front door |
| 5 | Lock | Outdoor special anti-theft three point lock |
| 6 | Material | Galvanized steel, Sandwich structure panel |
| 7 | Cabinet Installation method | Floor mount, including foundation bolts |
| 8 | Cable Entry | Located on the bottom |
| 9 | Lifting Hook Number | 4 |
| 10 | Earthing | Grounding copper bar |
| 11 | Operation Temperature | -40°C～+75°C |
| 12 | Protection Level | IP55 |
| 13 | Relative Humidity | 5% ~ 100% |
| 14 | Atmospheric Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| 15 | Solar Radiation Intensity | 1120 ×(1±5%)W/m2 |
| Cooling | ||
| 1 | Heat Exchanger |
DC48V, 80W/K, with heating function Installed on the front door |
| Other accessores | ||
| LED Lamp | DC48V | |
| Door Switch | Control lamp on/off | |
(1) The embedded structure door enhances the anti-theft effect.
(2) Standard 19 inch rack.
(3) The cabinet adopts three-point lock to prevent illegal entry.
(4) Front top have overhang design
(5) The body structure is double wall, water and dust resistant, IP55.
(6) The body structure is designed with a sealing rubber gasket.
5. Advantage
- Outdoor powder coating treatment
- The cabinet structure have earthquake resistance function
- Space layout is reasonable, greatly reducing the construction cost
- Waterproof, anti-corrosion, fire proof, anti sand and anti ultraviolet, ensure cabinet can work longer in a harsh outdoor environment
- The front and rear doors are easier to install and maintain.

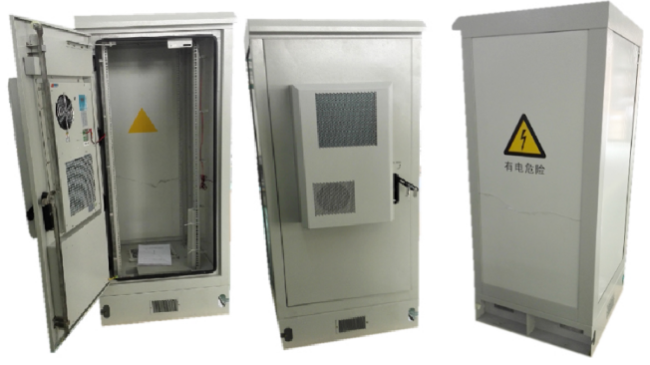

6. Cabinet Picture
