Stainless Steel Two Bay Base Station Cabinet DIN Rail Power Distribution Enclosure
Stainless Steel Two Bay Base Station Cabinet DIN Rail Power Distribution Enclosure
High Anticorrosion Stainless Steel Two Bay Base Station Cabinet DIN Rail Power Distribution Enclosure Outdoor Cabinet
Application
● Telecommunication.
● Base station.
● Wireless/Broadband.
● Solar based installations.
● Wireless cell sites&switches.
● Transmission terminals.
● Data and control.
● Transporation.
● Traffic.
Outdoor cabinet feature
● Short construction period, less land occupation, broader application and lower construction cost
● High integration, compact structure, easy installation and migration on later stage
● Anti-theft three-point outdoor cabinet lock, excellent keyhole protection device
● Professional outdoor anti- corrosion polyester powder coating, strong weather resistance
● Stainless steel have perfect anti corrosion, anti sand and anti ultraviolet
● The surface of the cabinet has strong adhesion and anti-aging coating
Technical Parameters
| Configuration | Item | Technical Parameter |
| Cabinet Body | Model | ET12040135 |
| Size | External Size: 1200×400×1350mm(W×D×H) | |
| Component | The whole cabinet is composed of three parts: top cover, cabinet body and cabinet base. The installation method is floor mounted. | |
| Material | Stainless steel, single wall, 1.5mm thickness | |
| Structure |
|
|
| Surface Treatment | Powder coating | |
| Color | Grey, RAL7035 | |
| Ingress Protection | IP65 | |
| Working Temperature | -40°C～+75°C |

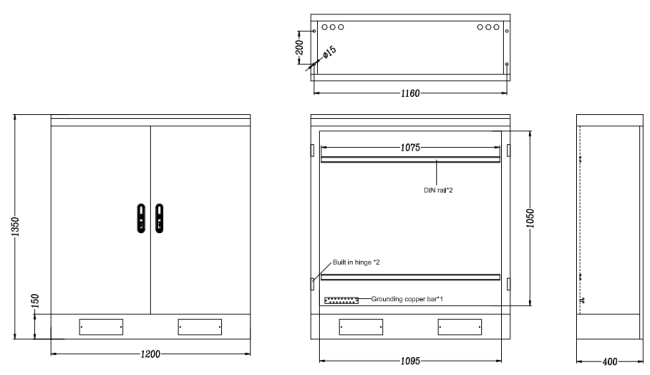

Dimension Drawing

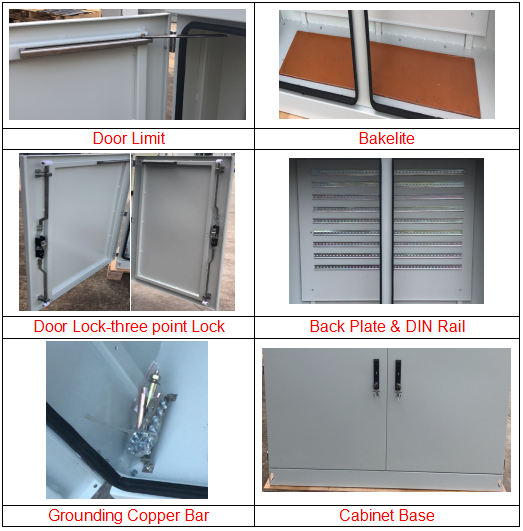

Product Details

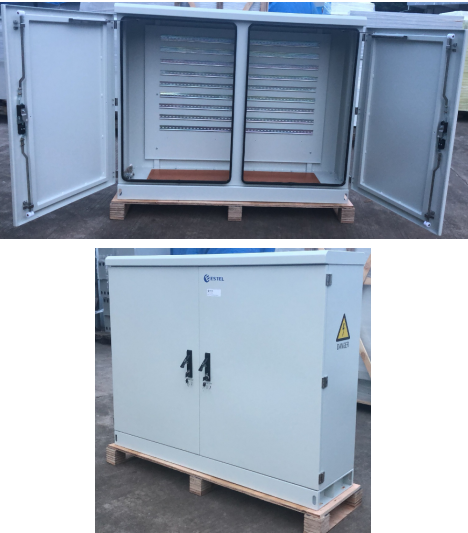

Outdoor cabinet picture
