42U 19 Inch Outdoor Telecom Cabinet Heat Exchanger Cooling Double Wall Insulated
42U 19 Inch Outdoor Telecom Cabinet Heat Exchanger Cooling Double Wall Insulated
Double Wall Insulated 42U 19 Inch Outdoor Telecom Cabinet Heat Exchanger Cooling Telecom Equipment Cabinet
1. Application
The ET9090220-EQ Outdoor Telecom Equipment Cabinet is mainly used in wireless communication base station, such as 4G/5G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc. This cabinet can accommate telecom equipment, rectifier system, power distribution, monitoring system ODF and lithium ion battery etc
2. Features
(1) The cabinet is dustproof, sunproof and rainproof, used in outdoor environment.
(2) Cabinet cooling: heat exchanger and fan
(3) All the cables used in the cabinet are made from flame retardant materials.
(4) Including grounding bar.
(5) Installation mode: installed on a concrete floor.
(6) Maintenance mode: accessed from the front.
(7) Cabling mode: routed in and out from the bottom.
3. Technical Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension |
External Dimension: W*D*H 900*900*2195mm
|
| Layout | 1 compartment | |
| Equipment Installation Method | 19” rack, 42U | |
| Door | With one front door, and three point lock for outdoor cabinet (support padlock) | |
| Material | Sandwich structure panel, galvanized steel, double wall with heat insulation | |
| Ingress Protection | IP55 | |
| Temperature Control | Cooling | Heat exchanger and fan |
| Lighting | LED lamp | DC48V LED lamps |
| Temperature | Temperature | Working Temperature: -40°C ~ +75°C |
| Storage Temperature: -50°C ~ + 70°C | ||
| Transport Temperature: -50°C ~ +70°C | ||
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1120 × (1±5%) W/m2 |
4. Accessories List
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Telecom Cabinet | 1 | Set |
(1) External Dimension: W*D*H 900*900*2195mm (2) One compartment: 42U equipment compartment (3) With one front door, and three point lock for outdoor cabinet (support padlock) (4) Material: Sandwich structure panel, galvanized steel, double with heat insulation |
| 2 | Heat Exchanger | 1 | Set |
Cooling Capacity: 200W/K, Power Supply: Dc48V |
| 3 | Fan | 1 | Set | One DC48V fan with one temperature controller |
| 4 | LED Lamp | 1 | PC | DC48V, incuding one lamp switch |
| 5 | Package | 1 | Set | Wooden Case |

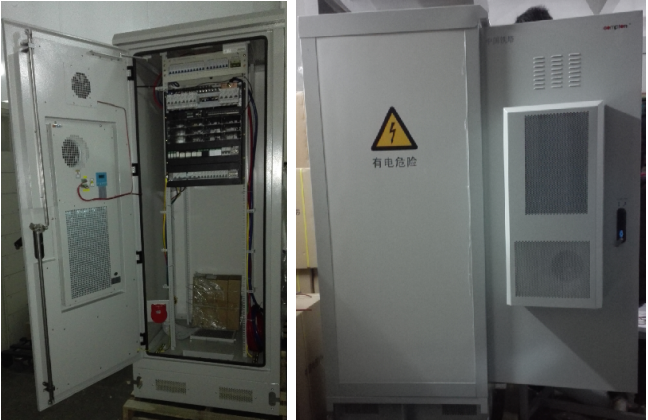

5. Cabinet Picture

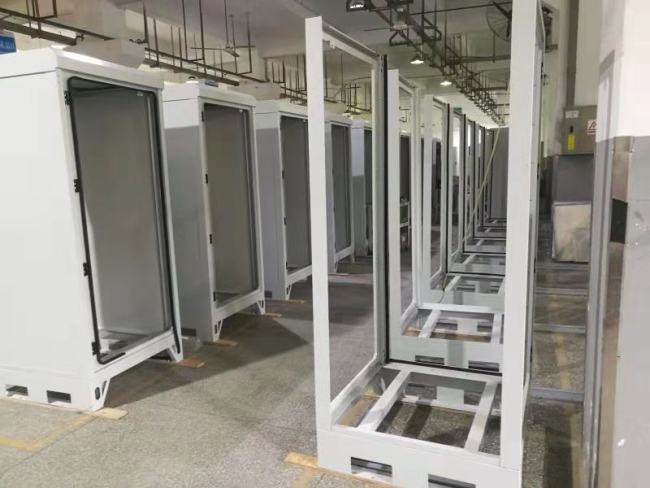

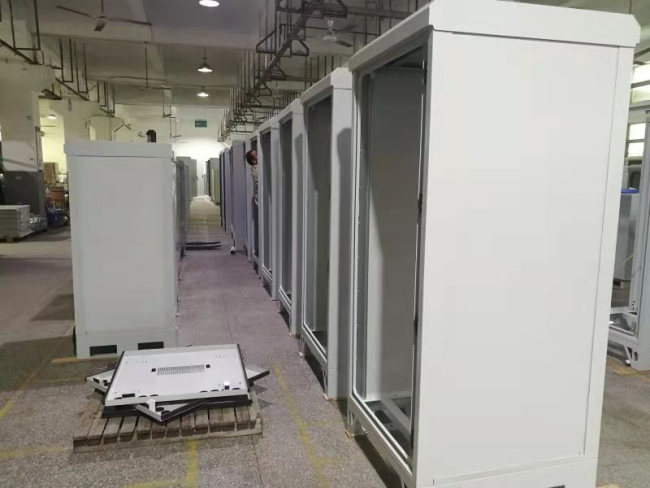

6. Cabinet Assemble
