Waterproof Bts Cabinet Double Wall IP55 Galvanized Steel Outdoor Rack Enclosure
Waterproof Bts Cabinet Double Wall IP55 Galvanized Steel outdoor rack enclosure
Two Bay Air Conditioner Cooling Base Station Cabinet Double Wall IP55 Waterproof Galvanized Steel Outdoor Cabinet
Overview
ESTEL is a high-tech enterprise with integrated R&D, manufacturing and sales department. Our cabinet is mainly used in wireless communication base stations, including a new generation of 4G / 5G systems, communications / network integrated services, access / transmission switching station, emergency communications / transmission etc.
Provides integrated outdoor cabinet solutions for
- Telecommunication
- Data Center
- Base station
- Solar based installations
- Wireless cell sides & switches
- Industry Automation
- Energy Storage
Besides, is also widely used in power, bank, education, television and radio and security monitoring etc
Parameter
| Cabinet size | 2000 * 1600 * 800mm (HxWxD) |
| Cabinet material | Galvanized steel, double wall with heat insulation |
| Heat inulation | 20mm PEF |
| Door | Two front doors |
| Installation method | floor mount |
| Inner layout | The left compartment inlcude 19inch rack, the right compartment include 19inch rack and battery shelf. Battery compartment has battery guard fence |
| Protection grade | IP55 (water proof, dustproof) |
| Working temperature | - 40 ℃～ + 55 ℃ |
| Humidity | 5%~95% |
| Cable Entry | On front and back of the bottom |
| Color | Outdoor polyester grey powder coating, RAL7035 |
| Cooling unit |
AC220V 50Hz 1500W air conditioner Qty: 2pcs On the front doors |
| Ilumination | DC48V LED lamp, with lamp switch |
Advantages
v Direct sales from manufacturers to increase your profit margin
v Strict quality inspection and stable quality
v Provide various customized products
v Fast delivery, no worry about delivery time
v Perfect after-sales system
v ESTEL outdoor cabinet suitable for a variety of outdoor environments.
v Waterproof , Anti-corrosion ,Durable
v IP degree :IP55, IP65 ,IP66
v Variety material optional : Galvanized sheet ,Stainless Steel , Aluminum
v Variety cooling options to choose , Fans , Air condition ,Heat exchanger
v Floor mounting , wall mounting , pole mounting.
v Provide inner equipment , include various sensors , power distribution box , monitor , battery , etc

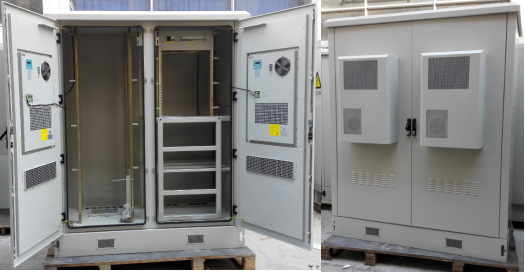

Product Picture

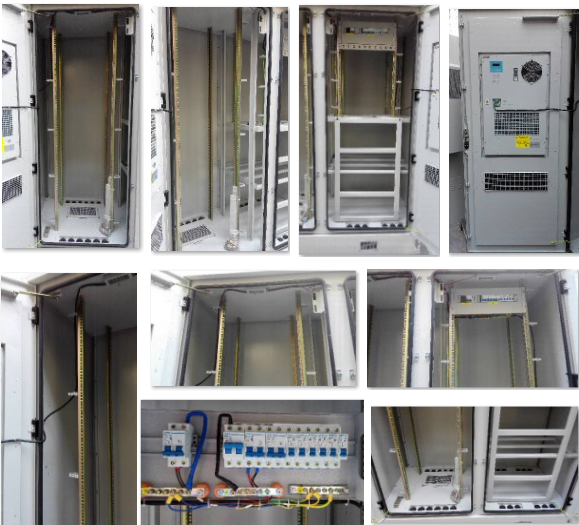

Details Showing

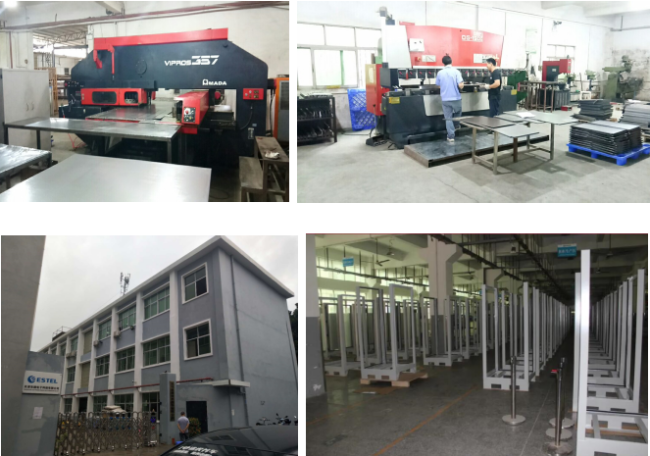

Factory Picture
