IP55 40U Outdoor Communication Cabinets Double Layer Steel 19 Inch Telecom Enclosure Air Conditioning Refrigerant
1. Specifications
(1) Technical Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension |
External Dimension H×W×D 2000×800×800mm;
|
| Layout | Single compartment | |
| Equipment Installation Method | 19” rack | |
| Door | With one front door, and special anti-theft three point lock for outdoor cabinet (support padlock) | |
| Material | Galvanized steel, double wall, there is heat insulation between two walls. | |
| Ingress Protection | IP55 | |
| Temperature Control | Cooling | AC220V air conditioner and AC220V fans |
| Lighting | LED lamp | AC220V LED lamps |
| Temperature | Temperature | Working Temperature: -40°C ~ +75°C |
| Storage Temperature: -50°C ~ + 70°C | ||
| Transport Temperature: -50°C ~ +70°C | ||
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1120 ×(1±5%)W/m2 |
(2) Accessories List
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Telecom Cabinet | 1 | Set |
(1) External Dimension H×W×D 2000×800×800mm; (2) One compartment,including 40U 19” equipment rack. (3) With one front door, and special anti-theft three point lock for outdoor cabinet (support padlock) (4)Galvanized steel, double wall, there is heat insulation between two walls. |
| 2 | Air Conditioner | 1 | Set |
Power supply: AC220V, 50HZ Cooling capacity: 1.5KW |
| 3 | Fan System | 1 | Set | Two AC220V fans + one temperature controller |
| 4 | Sensors | 1 | Set |
1× smoke sensor, 1× water sensor, 1× temperature, 1× door sensor |
| 5 | LED Lamp Switch | 1 | PC | Used for controlling LED lamp on/off |
| 6 | LED Lamp | 1 | PC | AC220V |
| 7 | Package | 1 | PC | Wooden Case |
2. Summary
The ET8080200-EQ Outdoor Telecom Cabinet is mainly used in wireless communication base station, such as communication/network integrated service, 4G/5G system, access/transmission switching station, emergency communication/transmission, etc Waterproof, sunproof, dustproof, suitable for outdoor environment.
3. Feature
(1) Double wall type structure
(2) Front single solid metal door with handle lock
(3) Enhance door hinges with 110 degrees operation angle
(4) wiring holes on bottom, size of the hole can be adjustable
(5) Varies specification upon customers' special requirements
(6) Withstand Voltage>3000VDC/min and no breakdown fly arc
(7) Processing: laser cutting, CNC punching, CNC bending, welding, stamping, etc
4. Advantage
(1) Fexible, wide appliation, modular design, standard rack instalaion for easy capacity expansion.
(2) Indvidual module temperaure control, electricity saving. adopt individual module temperaure control theory. reduce operating cost, provide passive and active temperature control methods for air conditioning system, ensure working environment
(3) Higher integration and lower cost than conventional civil and assembly machine rooms, small occupaton, easy locaton, strong tolerance, supporting many kinds of devices integration.
(4) Rapid deployment, increasing efficiency, integrated assembly in the factory or warehouse, easy transporting, or components delivery and installalon onsite, optimal structural design and simple installaion method.
(5) Compared with conventional rooms, lower working amount and construction cost

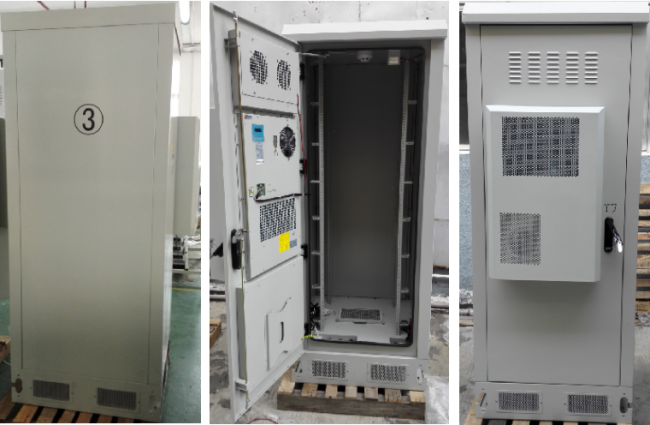

5. Cabinet picture
6. Shipping-loading container
7. FAQ
1) What is your Payment term?
--- T/T, Paypal, Western Union could be accepted.
2) What is your Trade term?
--- EXW, FOB, CNF, CIF is also ok.
3) What is the Loading Port?
--- Shenzhen port.
4) What is your MOQ?
--- MOQ of most our products is 1pc, different items will be different.
5) Is your company manufacturer?
--- Yes, we are production factory. So can provide best price for customer.
