China Waterproof Metal Telecom Outdoor Cabinet 20U 19

Waterproof Metal Telecom Outdoor Cabinet 20U 19" Rail Single Wall

Price Negotiable

Price: Negotiation

MOQ: 1PC

Delivery Time: 15 to 20 days

Brand: ESTEL

Product Description

Waterproof Metal Telecom Outdoor Cabinet 20U 19" Rail Single Wall

Waterproof Durable Single Wall Metal Telecom Outdoor Cabinet 20U 19" Rail Temperature Adjusted Fan Ventilation

Application Area

Provides a secure, climate controlled environment for any electronic equipment.
Telecommunications
Wireless/Broadband
Fiber Optics
Backhaul
Base Station
Small Cell/DAS
Utility
Military
Trailer-based Communications
Wi-Fi
Flexible and Scalable

Technical Data Sheet

Model	ET6060120-EQ2
Dimension	W×D×H 600×600×1200mm
19” standard rack	20U
Door	One front door
Lock	Anti-theft three point lock for outdoor cabinet(support padlock)
Material	Galvanized steel; single wall 1.2mm thickness
Color	RAL7035 grey
Installation method	Floor mount
Cooling	2 AC220V fans with 1 temperature controller
Illumination	AC220V LED lamp with lamp switch
Door sensor	Used for controlling led lamp on/ off
Working temperature	-40°C～+75°C
Ingress Protection	IP55
Equipment installation	19 "rack + 3 pairs of L-shaped supporting tray
Earthing	Grounding copper bar
Surface	Outdoor powder coating, ultraviolet-proof
Cable entry	On the bottom

Advantages

(1) ESTEL outdoor cabinet suitable for a variety of outdoor environments.
(2) Waterproof , Anti-corrosion , Durable
(3) IP degree :IP55
(4) Variety material optional : Galvanized sheet (Stainless Steel , Aluminum are optional)
(5) Variety cooling options to choose, Fans, Air condition, Heat exchanger
(6) Floor mounting, wall mounting, pole mounting are optional.
(7) Accept customized products.
(8) Provide inner monitor with various sensors, power distribution box, rectifier system, ODF etc
(9) Direct sales from manufacturers to increase your profit margin
(10) Strict quality inspection team
(11) Fast delivery, short production time
(12) Perfect after-sales system

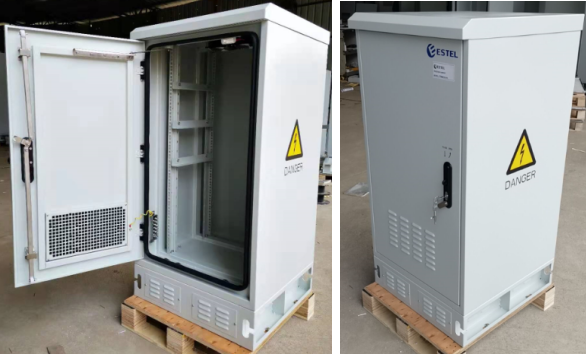

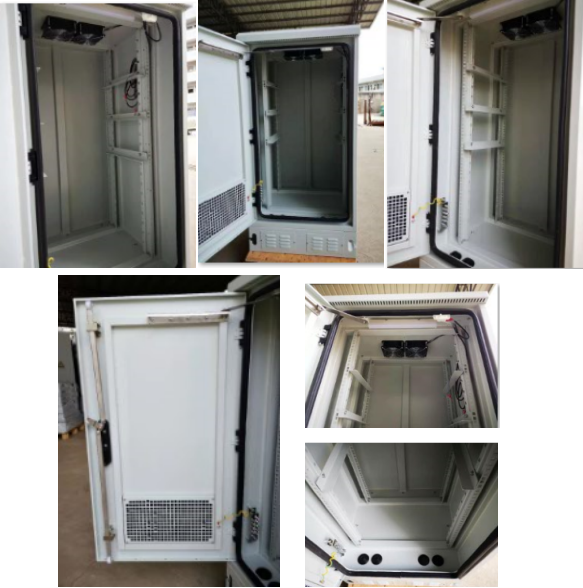

Cabinet Picture
