Galvanized Steel Outdoor Equipment Enclosure 32U Insulated Anti Corrosion 19 Inch Rack Cabinet
Galvanized Steel Outdoor Equipment Enclosure 32U Insulated Anti Corrosion 19 Inch Rack Cabinet
Front And Back Access 32U Insulated Corrosion Resistance Outdoor Telecom Cabinet
1. 19 Inch Rack Cabinet Common Uses
Electronic Industries Alliance (EIA) rack-mount equipment
Fiber optics
Satellite communications
Telecommunications
Networking
Wireless backhaul
Cable TV
Navigation & positioning (marine & land)
Military installations
WiMAX communications
Power/equipment storage
Minicell, microcell & femtocell
Cellular service, e.g., 3G, 4G, 5G
2. Description of 19 Inch Rack Cabinet
The enclosure features a modular design to maximize its versatility.
On the inside, it features standard rack units (RU) for installing your shelves and equipment, as well as factory-integrated features like a ground terminal strip, power outlet and more. Plus, we offer an array of accessories to ensure this cabinet can meet your specific application.
To protect your equipment inside, the entire body is powdercoated, which adds another level of corrosion resistance. And, our cabinet uses a solar shield roof to reduce internal climate control requirement.
3. Specifications of 19 Inch Rack Cabinet
(1) Technical Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension |
External Dimension H×W×D 1750×750×750mm (19”, 32U) |
| Layout | 1 compartment | |
| Equipment Installation Method | 19” rack | |
| Door | With one front door and one back door, and special anti-theft three point lock for outdoor cabinet (support padlock) | |
| Material | Galvanized steel, single wall with heat insulation | |
| Ingress Protection | IP55 | |
| Temperature Control | Cooling |
DC48V Peltier cooler and DC48V fans Compressor air conditioners is optional. |
| Lighting | LED lamp | AC220V LED lamps |
| Temperature | Temperature | Working Temperature: -40°C ~ +75°C |
| Storage Temperature: -50°C ~ + 70°C | ||
| Transport Temperature: -50°C ~ +70°C | ||
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1120 ×(1±5%)W/m2 |
(2) Accessories List
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Telecom Cabinet | 1 | Set |
(1) External Dimension H×W×D 1750×750×750mm; (2) One compartment,including 32U 19” equipment rack. (3) With one front door and one rear door, and special anti-theft three point lock for outdoor cabinet (support padlock) (4) Galvanized steel, single wall with heat insulation. |
| 2 | Air Conditioner | 1 | Set |
Power supply: DC48V Cooling capacity: 200W |
| 3 | Fan | 1 | Set | Two AC220V fans + one temperature controller |
| 4 | LED Lamp Switch | 1 | PC | Used for controlling LED lamp on/off |
| 5 | LED Lamp | 1 | PC | AC220V |
| 6 | Package | 1 | Set | Wooden Case |

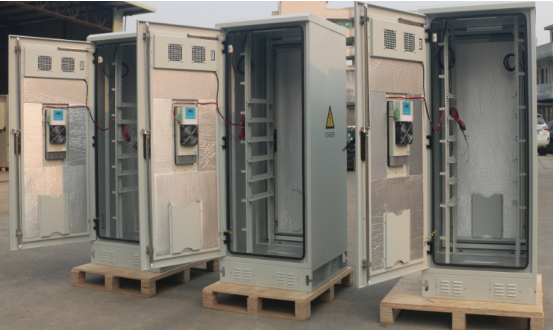

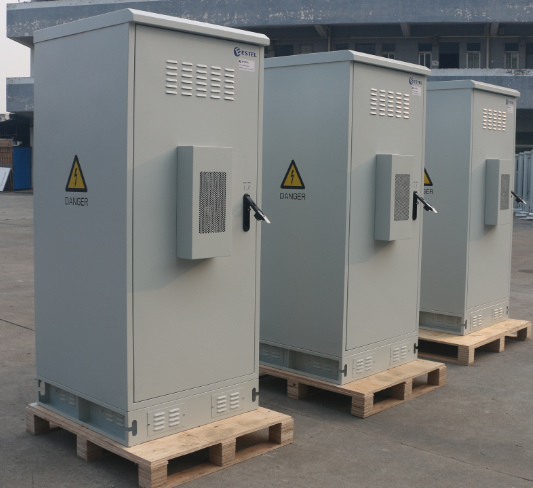

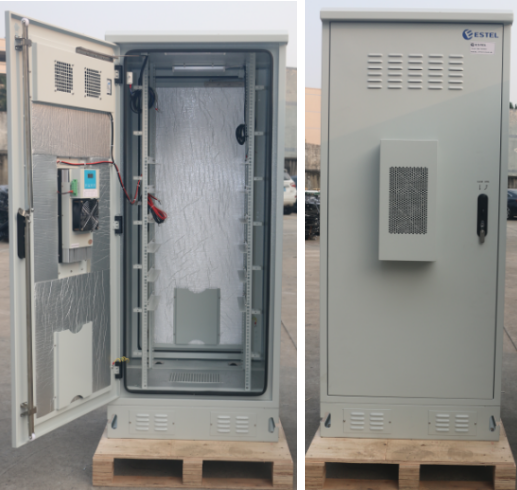

4. 19 Inch Rack Cabinet Photos

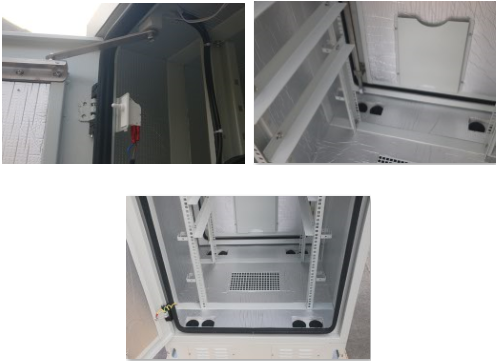

5. Deails Diagram

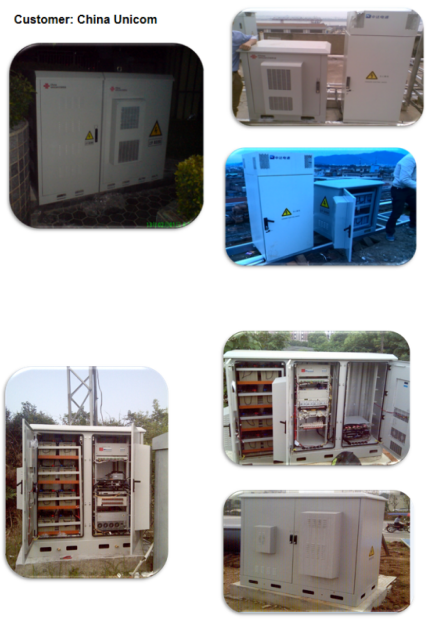

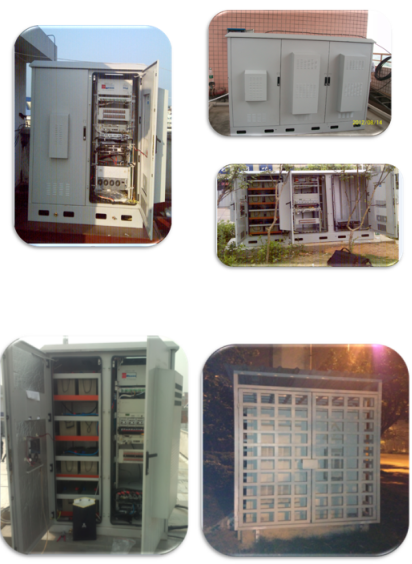

6. Telecom Cabinet Case
7. Our Factory and Other 19 Inch Cabinets
