42U Galvanized Steel Outdoor Telecom Cabinet 5G Base Station Enclosure
42U Galvanized Steel Outdoor Telecom Cabinet 5G Base Station Enclosure
42U High Quality Galvanized Steel Air Conditioner Cooling Outdoor Telecom Cabinet 5G Base Station
1. Application Scope
The outdoor communication cabinet is mainly used in telecommunication base station, such as 4G/5G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.
Besides, the cabinet is also used in bank, power, industry, radio&television, education, security monitoring, automatic system and research institute etc
2. Features
2.1 The cabinet is dustproof, sunproof and rainproof, used in outdoor environment.
2.2 The cabinet cooling uses DC48V 1500W air conditioner.
2.3 Including one 48VDC illumination LED lamp, installed on cabinet top.
2.4 Including two door sensor, one is used for LED lamp on/off, other one is used for open door alarm.
2.5 The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There are cable inlets at the bottom of the cabinet.
3. Technical Specs
| Item | Type | Technical Parameter |
| Structure | Dimension |
External Dimension: W*D*H 900*900*2200mm
|
| Layout | 1 compartment | |
| Equipment Installation Method | 19” rack, 42U | |
| Door | With one front door, and three point lock for outdoor cabinet (support padlock) | |
| Material | Galvanized steel, single wall with insulation | |
| Ingress Protection | IP55 | |
| Surface treatment | powder-coat paint, outdoor polyester light gray RAL 7035 coating | |
| Temperature Control | Cooling | DC48V Air Conditioner |
| Lighting | LED lamp | DC48V LED lamps |
| Power Distribution | Power Distribution Unit |
DC output MCB 63A/1P*1 DC output MCB 32A/1P*1 DC output MCB 16A/1P*2 |
| Temperature | Operating temperature | -40°C ~ + 75°C |
| Storage temperature | -50°C ~ + 70°C | |
| Transport temperature | -50°C ~ + 70°C | |
| Humidity | Relative Humidity (RH) | 5%~99% |
| Air pressure | Air pressure | 62kPa ~ 101kPa (similar to 0m ~ 5000m altitude) |
| Other characteristics | Flame retardance | Comply with GB5169.7 test A |
| Insulation resistance | ≥2×104M/500V(DC) | |
| Withstand voltage | ≥3000V(DC)/1min |

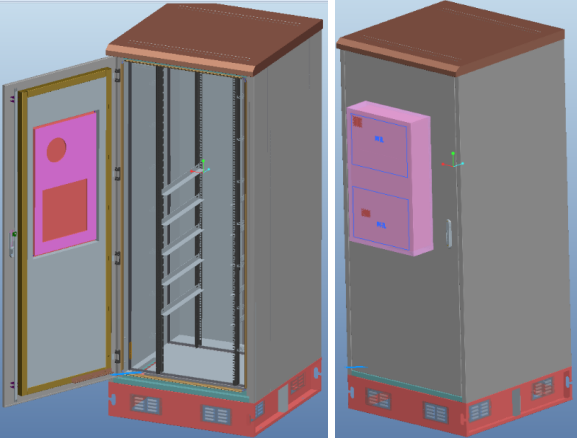

4. 3D Drawing
5. Electrical Devices
5.1 Air Conditioner
The cabinet includes one DC48V 1500W air conditioner, installed on the door of the cabinet.
The following is parameter data:
| Product Model | E135001500 | |
| Dimensions, Weight & Mount | ||
| External Dimensions (H x W x D) | MM | 745x449x200 |
| Weight | KG | 28 |
| Mounting Method | Semi-embedded Mounting | |
| Application | Outdoor | |
| Environmental Protection & Performance | ||
| Working Temperature Range | ºC | -15 to +55 |
| Noise Level | dB(A) | 65 |
| IP Grade | IP | IP55 |
| Refrigerant | R134a | |
| CE & RoHS Compliant | YES | |
| Cooling Capacity & Operational Data | ||
| Internal Airflow | M3/h | 400 |
| Power Consumption@L35/L35 | W | 425 |
| Max Current | A | 15 |
| Power, Frequency & Range | ||
| Input Voltage | VDC | DC48V |
| Frequency | HZ | ------ |

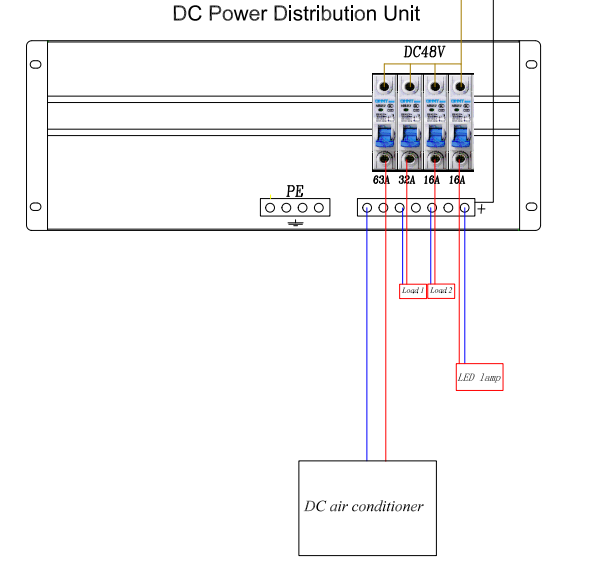

5.2 Power Distribution Unit
DC output MCB 63A/1P*1
DC output MCB 32A/1P*1
DC output MCB 16A/1P*2
5.3 LED Lamp

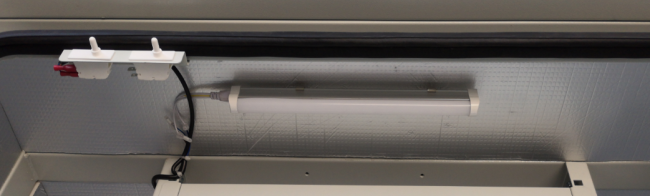

LED lamp is 48VDC, installed on the top of the cabinet, see below picture
6. Cable entry

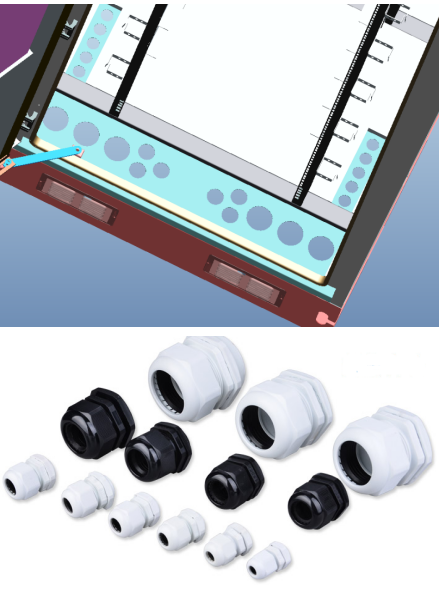

Use cable gland on the cabinet bottom

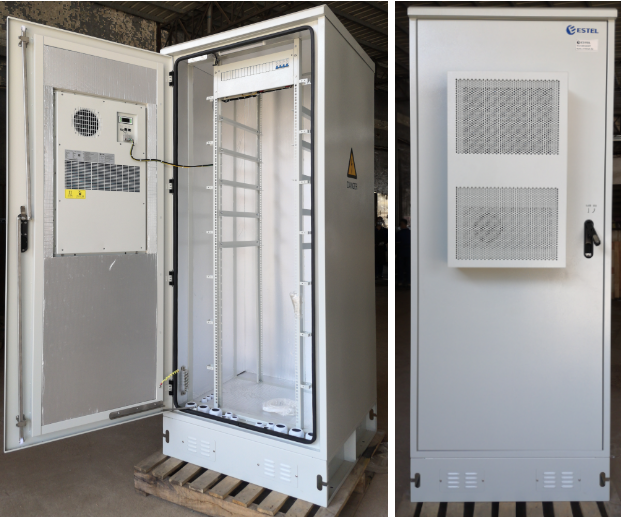

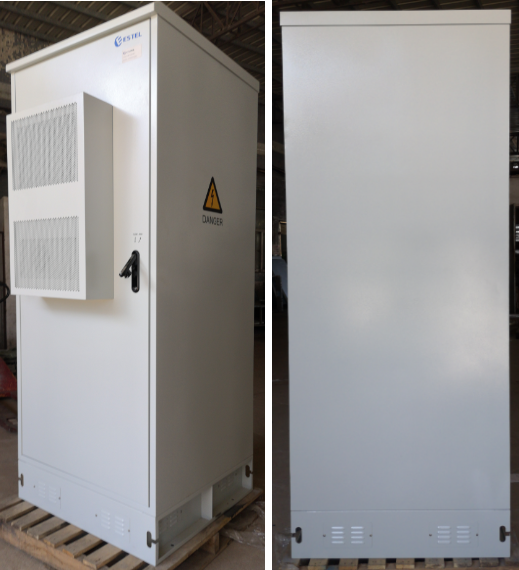

7. Cabinet Picture

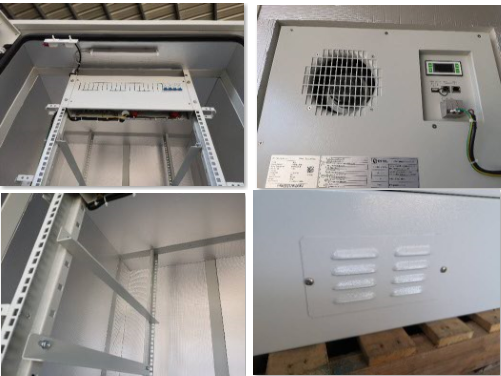

8. Cabinet Details
