Waterproof 33U 19 Inch Insulated Temperature Antirust Control Outdoor Equipment Cabinet
Summary
The outdoor telecom cabinet ET70100180-EQ has been designed to house sensitive electronic equipments for use in communications (such as satellite modem, modem redundancy controller, Ethernet switch, Ethernet router, etc.), transportation and rail infrastructure projects including SISS, CIS, CCTV, communications, networking etc.
Features
- Outdoor anti corrosion powder coating
- The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment
- Standard 19“ rack for installation
- IP grade: IP55
- Cabinet cooling: air conditioner and fans
- The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding
- High integration, compact structure, easy installation and migration on later stage
- Anti-theft three point lock, excellent keyhole protection device
Technical Parameters
| Configuration | Item | Technical Parameter |
| Cabinet Body | Model | ET70100180-EQ |
| Size |
External Size: 700mm×1000mm×1800mm(W×D×H) Internal Space: 19” 33U Base height: 200mm |
|
| Component | The whole cabinet is composed of three parts: top cover, cabinet body and base. The installation method is floor mounted. | |
| Material | Galvanized steel, single wall with heat insulation | |
| Structure |
(1) One front door (2) Anti-theft three point lock(support padlock) (3) Door stopper is installed for keep door when door is open (4) Door with good sealing, waterproof and dustproof (5) Include standard 33U 19“ rack inside the cabinet, high compatibility. (6) Equipped with cable manager (7) Cable inlets at the bottom of cabinet |
|
| Surface Treatment | Outdoor anti-corrosion powder coating | |
| Color | Grey RAL7035 | |
| Ingress Protection | IP55 | |
| Working Temperature | -40°C～+75°C | |
| Cooling Method | Air Conditioner |
Cooling Capacity: 1500W Power Supply: 220VAC, 50Hz On front door |
| Fan | Two AC220V fans + one temperature controller | |
| Illumination | LED Lamp | AC220V LED lamp with one lamp switch |

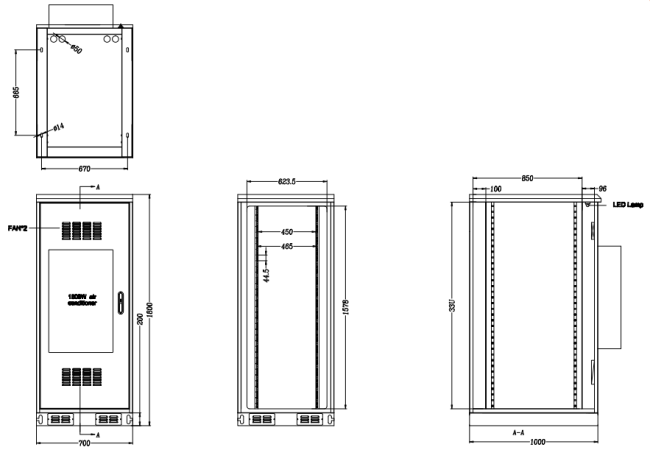

Cabinet Drawing

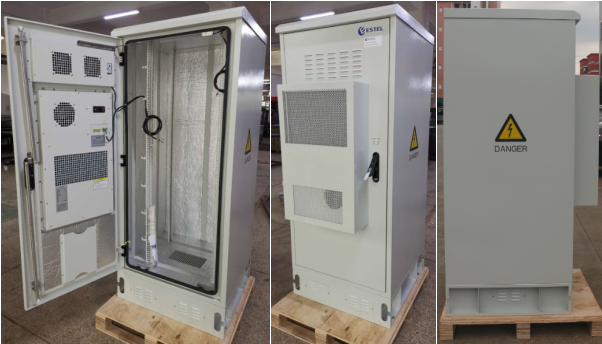

Similar Cabinet Pictures

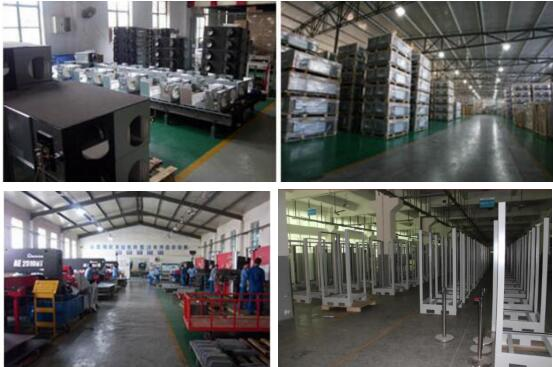

Our factory View
