Intelligent AC220V Outdoor Enclosure Air Conditioner Cooling System

Low Noise Intelligent AC220V Outdoor Cabinet Air Conditioning Full Automation Enclosure Cooling System


1. Enclosure Cooling System introduction

TC06-50JFH/01 Air Conditioner is a full automation temperature control product. It uses intelligent controller to control the whole system of the air conditioner. According to the variation of environment temperature, the intelligent controller can automatically detect, operate and record the whole system’s operating time, power consumption, event and historical data. It can store 100 event records and 1280 historical data records, and can enquire 256 days’ daily record information. The product is widely applied in telecom cabinet, small and medium sized telecom room, UPS room, outdoor base station room, etc.

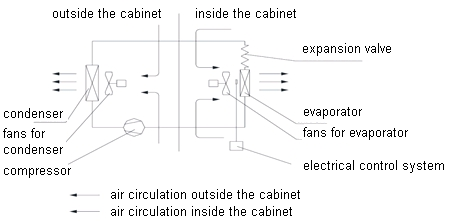

2. System Principle Diagram




3. Technical Parameters of Enclosure Cooling System

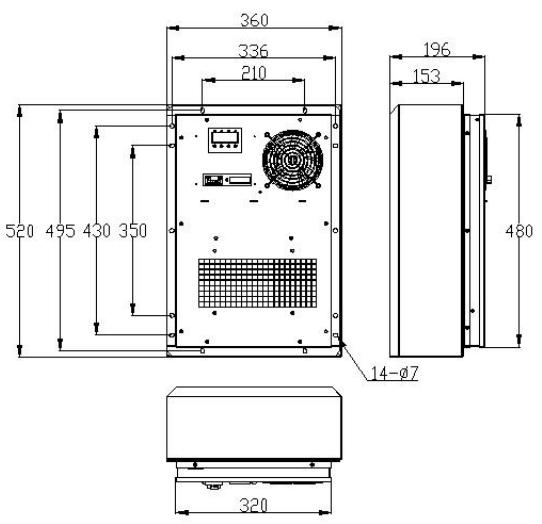

4. Air conditioner size


5. Features

• Strong adaptability

• High intelligence

• High precision

• High reliability

• Low noise

• Low energy consumption

• With 4 way switching value detection

• With 1 way room air conditioner control

• Voltage input range: 220VAC±15% 50Hz

• With dry contact alarm output

6. Electrical Wiring Diagram









Wiring Ports:
L N PE : power supply port (voltage input: 220VAC±15% 50Hz)
F+ F- : direct ventilation output port
AL1 AL2: general alarm output port
A+ B- SGND : RS485 communication port
N : not connected pin

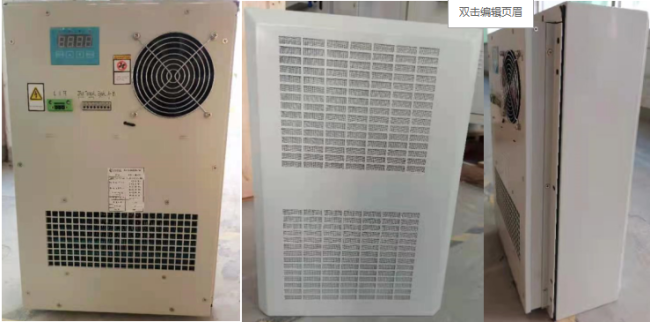

7. Air conditioner picture

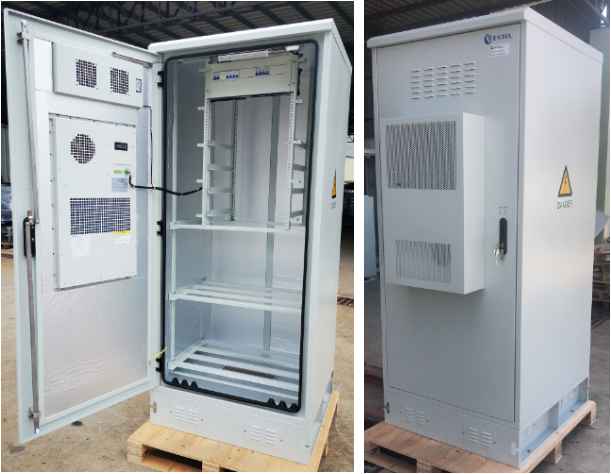

8. Application case
