Waterproof Dustproof Thermostatic Steel Outdoor Power Cabinet Power Supply Cabinet
1. Applications of Power Supply Cabinet
Estel can provide multi cabin outdoor integrated power supply cabinet, battery cabinet and telecommunication equipment cabinet with a variety of options. Our cabinet is widely used in the fields of wireless communication base station, power, radio station, solar cell and TV, including new generation 5G system, communication network / network integrated service, access / transmission switching station, emergency communication / transmission, traffic, monitoring, etc. And support a variety of installation methods, wall mounted, pole mounted, floor mounted. It can adapt to the outdoor simple and harsh working conditions, shelter from rain, snow, sand and dust, guard against theft and rats, etc.
2. Specifications of Power Supply Cabinet
| Item | Specification |
| Model | ET7575210-UP |
| Cabinet | |
| External Dimension | W×D×H 750×750×2100mm |
| User space | 7U 19” rack + 4 layer battery shelf(each shelf 4 battery) |
| Support battery size | L×W×H 550×110×320mm |
| Material | High quality galvanized steel, single wall with heat insulation |
| Door lock | Outdoor anti-theft three point lock, support padlock |
| IP grade | IP55 |
| Cable entry | On the bottom |
| Lifting hook | 4 pcs hooks on the base |
| Operating temperature | -40℃～+75℃ |
| Cabinet relative humidity | 5%～100% |
| Air pressure | 62kPa ~ 101kPa (similar to 0m ~ 5000m altitude) |
| Cabinet relative humidity | 5%～100% |
| Cooling system | |
| Heat Exchanger |
Heat Exchange Capacity: 150W/K; Power Supply: DC48V |
| Illumination | |
| LED light | DC48V, with one light switch |
(1) High compatibility, high integration, supporting multiple equipments, good appearance
(2) Flexible structure, flexible assembly
(3) Using heat exchanger for cooling, cost-effective.
(4) Can be installed in any difficult places include the top of mountain and the roof of buildings.
(5) Theft-proof, wind-proof, sand-proof, rain-proof, sun-proof and anti-theft, protection level IP55.
(6) All the screws are built in cabinet, enhance security.
(7) Using heat insulation can effectively prevent heat from entering.
(8) All the screws and nuts are made from high rustproof stainless steel material.

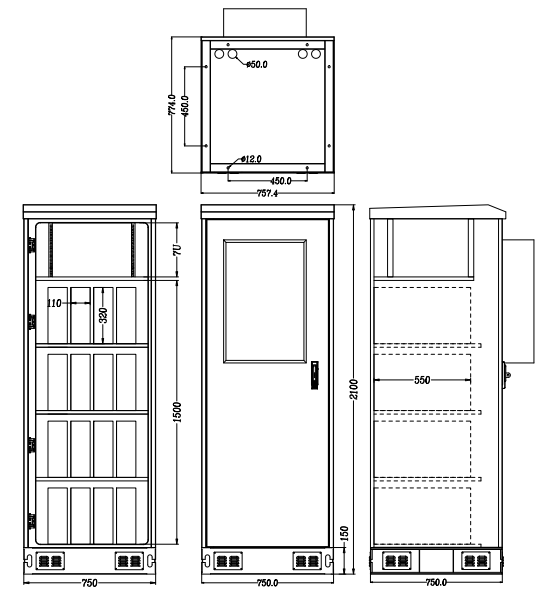

4. Power Supply Cabinet Drawing

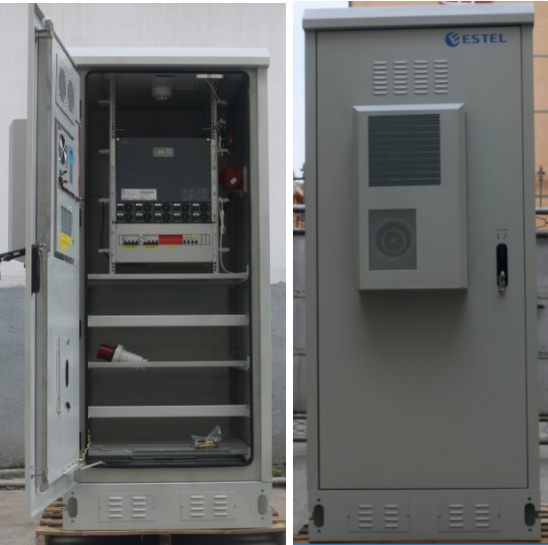

5. Cabinet Pictures
6. Our factory and product
