14U Steel Temperature Control Insulated IP55 Outdoor Telecom Cabinet 500mm Base Outdoor 19 Rack Enclosure
Overview of Outdoor 19 Rack Enclosure

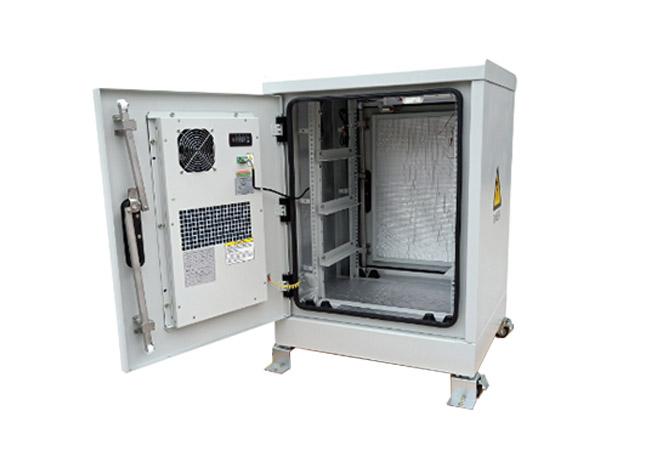

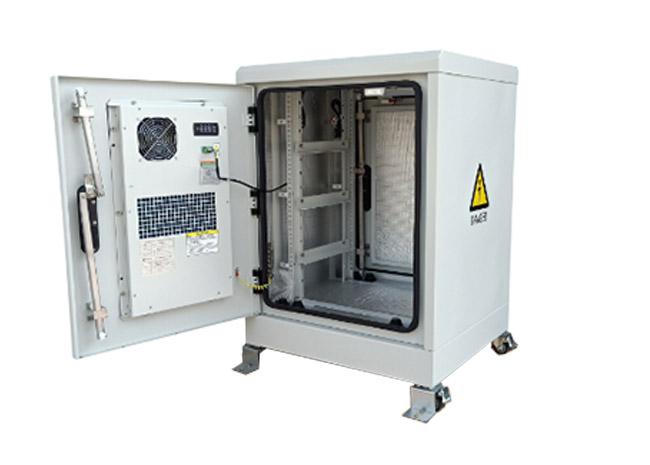

The outdoor telecom cabinet ET6575930-14U has been designed to house sensitive electronic equipments for use in communications (such as satellite modem, modem redundancy controller, Ethernet switch, Ethernet router, etc.), transportation and rail infrastructure projects including SISS, CIS, CCTV, communications, power, networking etc.
Outdoor 19 Rack Enclosure Feature
● The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment
● 14 rack units (RU), standard 19” rail
● IP grade: IP55
● Cabinet cooling: air conditioner and fans
● Heavy duty outdoor construction
● Front access (rear access optional)
● High integration, compact structure, easy installation and migration on later stage
● Anti-theft three-point locking system, support padlock
● Outdoor powder coating, anti-corrosion
● Standard Color: light grey, RAL7035. Custom color available
● Cable inlet at cabinet bottom
● Include grounding bar
● Include door stopper
Technical Parameters of Outdoor 19 Rack Enclosure
| Configuration | Item | Technical Parameter |
| Cabinet Body | Model | ET6575930-14U |
| Size |
External Size: 650mm×750mm×930mm(W×D×H) |
|
| Component | The whole cabinet is composed of three parts: top cover, cabinet body and base. The installation method is floor mounted. | |
| Material | Galvanized steel, single wall with heat insulation | |
| Structure |
(1) One front door (2) Anti-theft three point lock, support padlock (3) Door stopper is installed for keep door at an angel when door is open (4) Door with good sealing, waterproof and dustproof (5) Include standard 14U 19“ rack inside the cabinet, high compatibility. (6) Equipped with cable manager (7) Cable inlets at the bottom of cabinet (8) 4 wheels on the cabinet bottom |
|
| Surface Treatment | Powder coating | |
| Color | Grey RAL7035 | |
| Ingress Protection | IP55 | |
| Working Temperature | -40°C～+75°C | |
| Cooling Method | Air Conditioner |
Cooling Capacity: 500W Power Supply: DC48V On front door |
