Description
ET404065EAP is an outdoor power supply cabinet which can protect customer’s equipments from damage and extreme weather conditions. The cabinet is an ideal solution for physical connections of outdoor telecommunication equipments. Both active telecom equipments and passive telecom equipments can be accomodated inside the cabinet. This cabinet includes power supply system and battery that can supply power to user’s equipment.
Application
Telecommunications, wireless coverage, safe city, security monitoring, tower base station, water conservancy monitoring, air monitoring, noise monitoring, CCTV, forest fire prevention, smart city, intelligent transportation, etc.
Technical Parameters
| Configuration | Item | Technical Parameter |
| Cabinet | Model | ET404065EAP |
| Protection Level | IP55 | |
| External Dimension | H650mm×W400mm×D400mm | |
| Internal | 19” rack, battery tray, DIN back panel | |
| Material | Galvanized steel, 1.2mm thickness | |
| Coating | Polyester powder coating | |
| Color | RAL7035 | |
| Lock | Two cam stainless steel round locks | |
| Installation Options | Pole mounted | |
| Cable Routing | Cable in and out from the bottom of cabinet | |
| Maintenance | One front door, front maintenance | |
| Cooling | Fans | 48VDC 180CFM *1 |
| Power Supply | 48VDC | Input: 220VAC, Output: 48VDC, Power: 1600W |
| Battery | 48VDC | 12V 7AH *4 |
| MCB | Input | AC 2P 63A×1, SPD 60KA |
| Output | DC 2P 6A×2 | |
| Environment | Working Temperature | -40℃ ~+55℃ (+Solar Radiation) |
| Storage Temperature | -40℃~+70℃ | |
| Working Humidity | 5%~95%(No condensation) | |
| Working Altitude | 0~4000 meters |

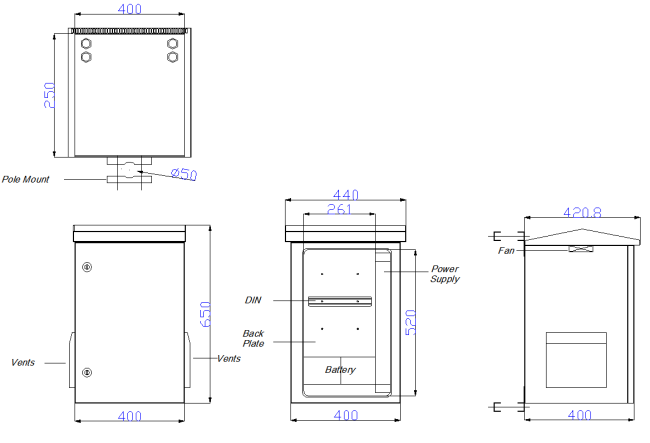

Drawing

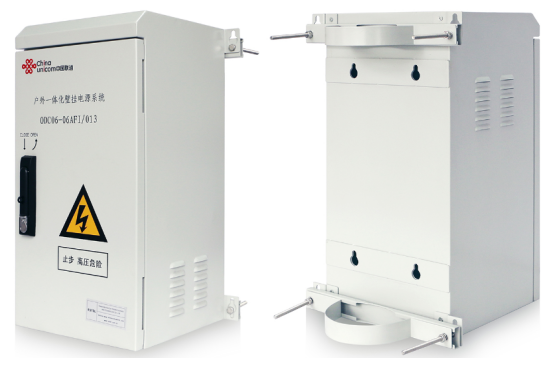

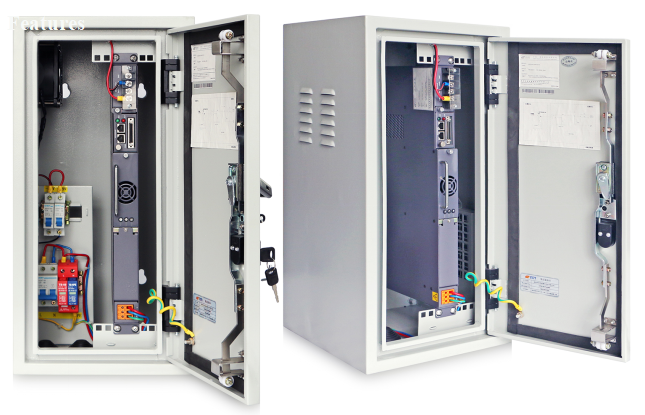

Similar Cabinet Picture

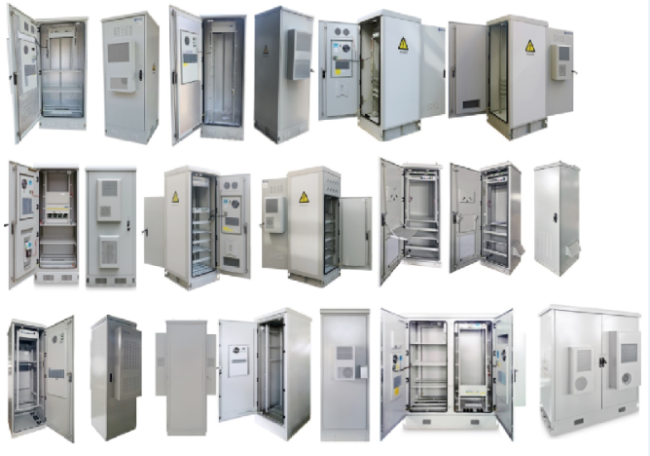

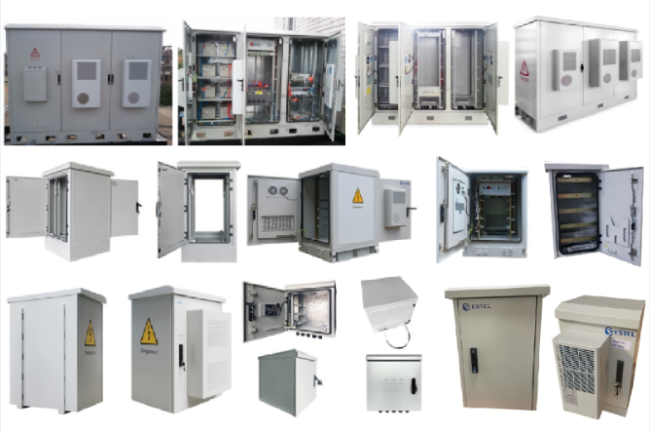

Our Other Outdoor Cabinet
