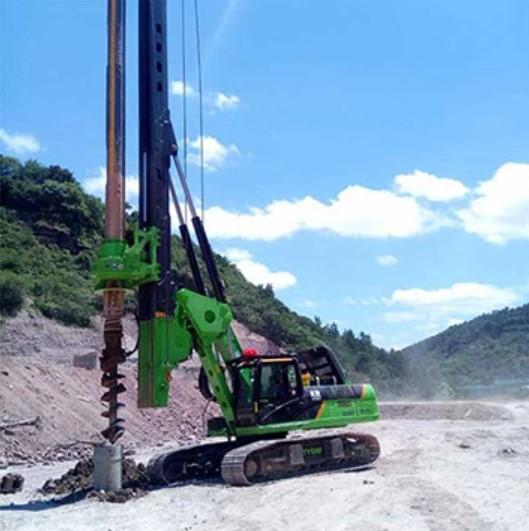

20m Kr60c Rotary Hydraulic Drilling Rig With Cat Chassis Pile Foundation Construction
Technical Specification
| Type | KR60C |
| Torque | 60 KN.m |
| Max. diameter | 1000 mm |
| Max. drilling depth | 16 m(Lock)/ 20 m(Friction kelly bar) |
| Speed of rotation | 8~30 rpm |
| Max. crowd pressure | 90 kN |
| Max. crowd pull | 100 kN |
| Main winch line pull | 80 kN |
| Main winch line speed | 70 m/min |
| Auxiliary winch line pull | 30 kN |
| Auxiliary winch line speed | 40 m/min |
| Stroke(crowd system) | 3200 mm |
| Mast inclination(lateral) | ±3° |
| Mast inclination(forward) | 4° |
| Max. operating pressure | 35 MPa |
| Pilot pressure | 4.1MPa |
| Travel speed | 3km/h |
| Traction force | 114 kN |
| Operating height | 11200 mm |
| Operating width | 2490mm |
| Transport height | 3300 mm |
| Transport width | 2490 mm |
| Transport length | 9970mm |
| Overall weight | 22 t |
1. Undercarriage-----Reliable & Mature Excavator Supplier for Choice
Type: New & Used
Brand: CAT, JCM, SINOMACH, SANY, XCMG and other
2. Hydraulic Parts-----World Famous Brands
Gearbox Reducer: Imported REXROTH
Main Pump & Valve: Imported KAWASAKI (Japan)
Hose: Imported
3. Structure Parts-----Professional Structure Parts Supplier for XCMG
Why Choose Us?
1. We are the professional & trustworthy manufacturer of piling machinery in China, best quality & best service.
2. Supply professional customized service to meet all your requirements.
3. Our rotary drilling rigs have been sold to more than 7 counstries, such as Russia, Australia, Thailand, Zambia and others.
4. Competitive price.
Q1: What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is one year or 2000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
