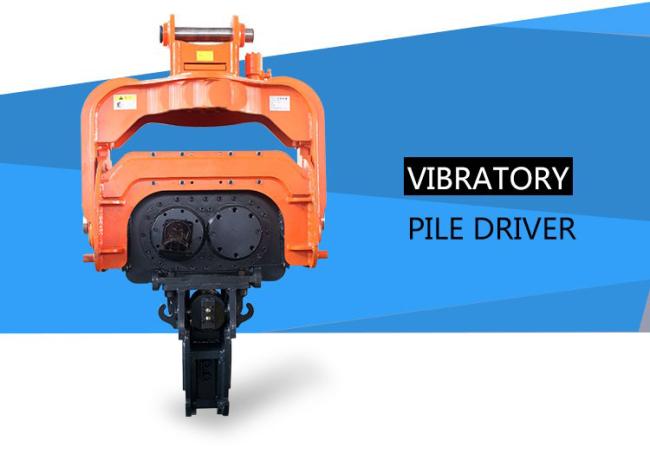

Precision Vibratory Pile Hammer Excavator Hydraulic Pile Driver 3000rpm Piling Equipment
TYSIM VS330 Excavator hydraulic Pressure Vibro Pile Hammer
Quick Details
- Place of Origin: Jiangsu, China (Mainland)
- Brand Name:TYSIM
- Model Number: VS330
- Appilcation: engineering machine
- Material: No.45 steel
- Hydraulic Power Station: 27T
- Type: Pile Driver
- Rotating Speed: 3000 rpm
- Weight: 1.8t
- Power System: Hydraulic
- Dimension(L*W*H): 2485*1245*737mm
- Color: Optional
--Easy operation
--Flexible control
--Silence operation
--Easy maintenance
--Precision design
--Reliable performance
--Quick speed
--Save time
| Model | TS-VS250 | TS-VS330 | TS-VS400 | TS-VS450 | TS-VS500 |
| Vibration Frequency(Rpm) | 3000 | 3000 | 3000 | 3000 | 3000 |
| Vibrating Force(T) | 46.2 | 56.5 | 61.8 | 69.5 | 77 |
| Hydraulic System Operating Pressure(Bar) | 315 | 315 | 315 | 315 | 315 |
| Hydraulic System Flow Demand(Lpm) | 189 | 240 | 270 | 324 | 324 |
| Main Body Weight(T) | 1.7 | 1.8 | 2.15 | 2.2 | 2.3 |
| Apply to Excavator Weight(T) | 20-25 | 27-32 | 33-40 | 40-48 | 50-70 |
| Clip Mouth Weight(kg) | C17:520KG C19:550KG C30B:455KG C35E:530KG | ||||
| Assistance Arm Weight(kg) | A200C:750KG A200CK:755KG A250C:850KG A300C:950KG | ||||
Company Information
FAQ
Q1: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
Q2:Why Choose Us?
1. We are the professional & trustworthy manufacturer of piling machinery in China, best quality & best service.
2. Supply professional customized service to meet all your requirements.
3. Our rotary drilling rigs have been sold to more than 20 countries, such as Russia, Australia, Thailand, Zambia and others.
4. Competitive price.
