20m Small Borehole Drilling Hydraulic Piling Machine Max. drilling diameter 1200mm High Stability Low Cost
Price:
Negotiation
MOQ:
1 set
Delivery Time:
45 working days after received your payment
Brand:
TYSIM
Product Description
China Brand Chassis: KR60A,KR90A,KR125A,KR150A
KR60A is the mainstream urban construction piling machine in China
Other models are mostly used in civil and industrial construction
Technical Specification
| Technical Specification of KR60ARotary Drilling Rig | |
| Type | KR60A |
| Torque | 60 kN.m |
| Max. drilling diameter | 1200 mm |
| Max. drilling depth | 120 m |
| Speed of rotation | 8~30 rpm |
| Max. crowd pressure | 60 kN |
| Max. crowd pull | 90 kN |
| Main winch line pull | 65 kN |
| Main winch line speed | 48 m/min |
| Auxiliary winch line pull | 20 kN |
| Auxiliary winch line speed | 48 m/min |
| Stroke(crowd system) | 2000 mm |
| Mast inclination(lateral) | ±3° |
| Mast inclination(forward) | 4° |
| Max. operating pressure | 34.3 MPa |
| Pilot pressure | 3.9 MPa |
| Travel speed | 2.8 km/h |
| Traction force | 98 kN |
| Operating height | 10600 mm |
| Operating width | 2700 mm |
| Transport height | 3250 mm |
| Transport width | 2700 mm |
| Transport length | 9500 mm |
| Overall weight | 20t |

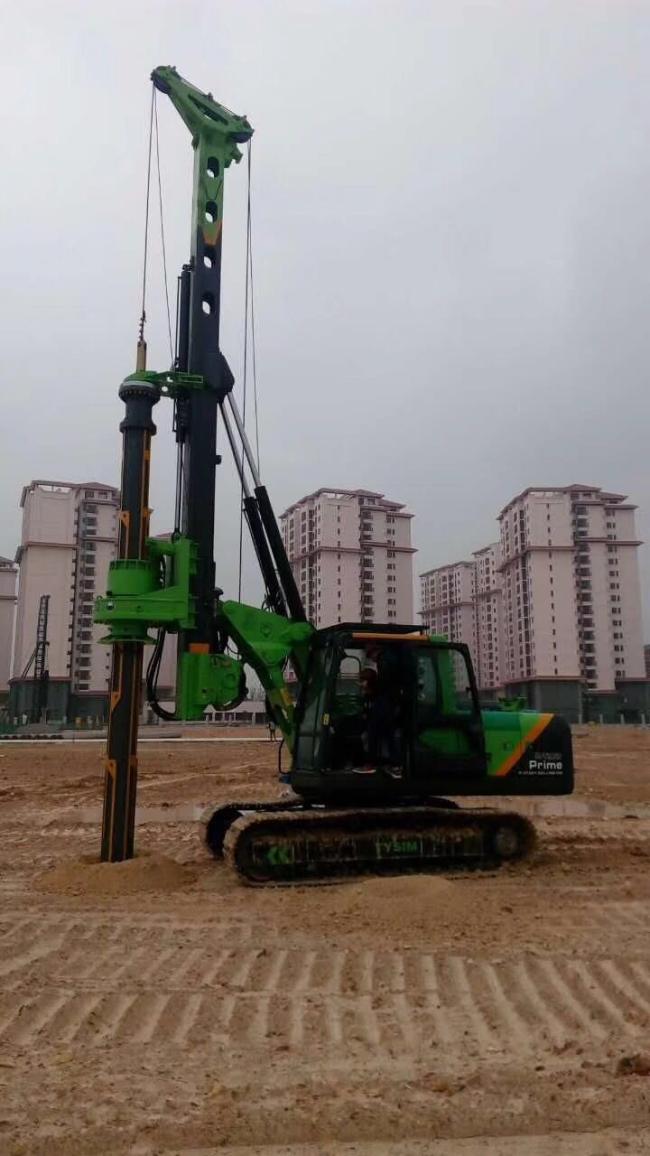

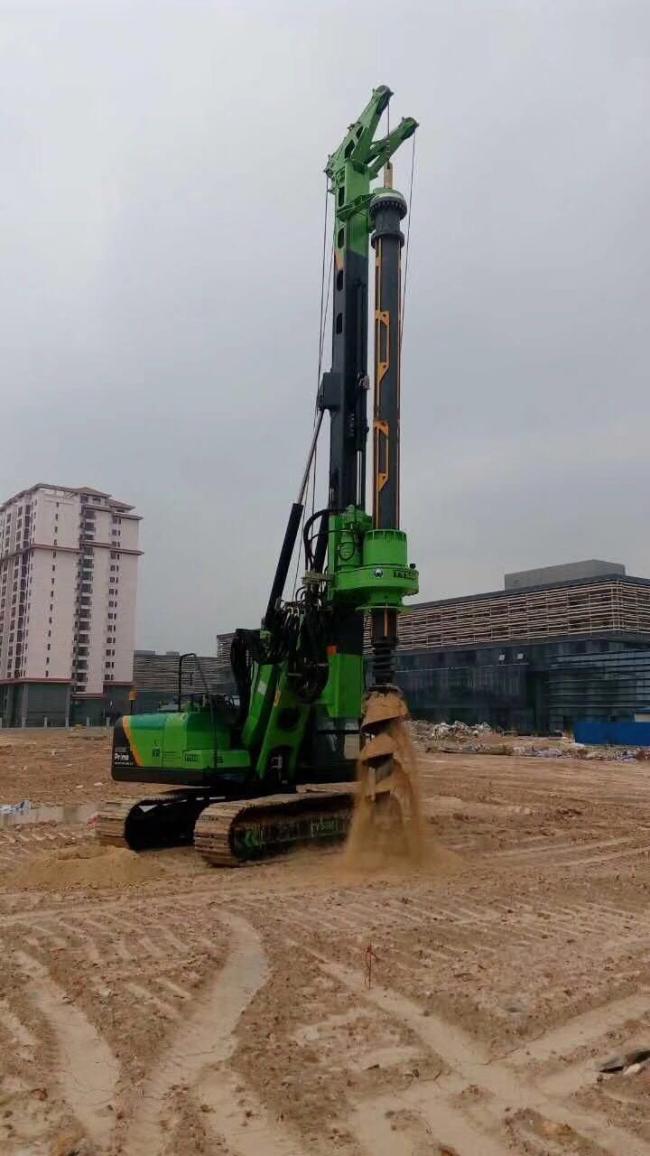

Construction Photos
