Truck Turbo Turbo System In Cars Grand Vitara With DW10ATED 53039880051 53039700051
2000-08 Suzuki Grand Vitara, Geo Tracker with DW10ATED Engine K03 Turbo 53039880051 53039700051
Specifiions:
| Part Number | 53039880051 |
| Previous Version | 5303-988-0051, 5303 988 0051 |
| OE Number | 1390067G00, ZY34027010, |
| Year | 2000-08 |
| Description | Grand Vitara, Geo Tracker |
| Manufacturer Part Number | 53039700051, 5303-970-0051, 5303 970 0051 |
| CHRA | 53037100514 (5303-710-0514) |
| Turbo Model | K03-1875EXE4.81KCAXD |
| Engine | DW10ATED, DW10ATED/RHW/RHZ 8v |
| Displacement | 2.0L, 1997 ccm, 4 Cylinders |
| KW | 80/109 |
| RPM Max | 4000 |
| Fuel | Diesel |
| Angle α (compressor housing) | 245� |
| Angle β (turbine housing) | 205� |
| Bearing Housing | 53041500006/53041510002 |
| Turbine Wheel | 53031205015 |
| Comp. Wheel | 53031232021 |
| Back plate | 53041515705 |
| Heat shield Number | 53031652000 |
| Repair Kit | 53037110001 |
| Turbine Housing | 53031009079 |
| Compressor Cover | 53031015037/53031015032 |
| Turbine Housing AR | 4 |
| Actuator | 58251105014 |
| Settings Wastegate (pressure) | 0.50 bar |
| Settings Wastegate (lift shaft) | 12.0 mm |
| Gasket (turbine inlet) | 210371 |
| Gasket (turbine outlet) | 210589 |
| Gasket (oil outlet) | 210317 |
| NOTE | Intercooler |
| Manufacturer | Borg Warner - 3K - Schwitzer |
Appliions
2000-08 Suzuki Vitara Grand 2.0L TD with DW10ATED Engine
2000-08 Geo Tracker with DW10ATED Engine

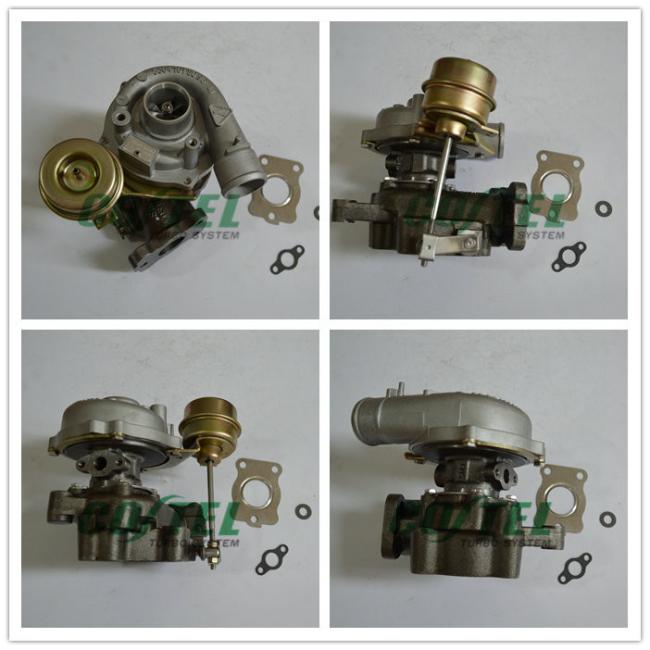

Pictures:
Contact:
Email/Skype:costelturbo@outlook.com
Shipping:
Depending on various circumstances, three different delivery methods have been taken:
1 By sea. 2 By air cargo. 3 By express service.
Delivery term
Our extensive stock of turbochargers allows us to offer 3-7 working day delivery service ensuring that you and your customer wait no longer than is necessary.
50-150 pcs--15-20 days, 150-300 pcs--25 days, over 300 pcs -- 30 days.
COSTEL complete Turbo
A.our products have 12 months warranty.
B.Product are manufactured to OE standards of quality
C.All wheels are processed on the Schenck automatic balancing centre with air bearings to achieve lowest residual balance.
D.Cartridges are assemblied by automatic line, and are balanced with Turbo Technics VSR or Schenck .
E.All VNT turbochargers are tested on the G3 VNT Flow Bench.
F.All turbochargers are supplied with gasket kits.
PRODUCTS coverage
- Garrett(GT12,GTC14,GT15-25,GT37,GT42,GT45 etc),
- KKK (K03,K04,K06,K16,K27,K31,KP35,KP39,BV43,BV50,R2S etc),
- Schwitzer (S1B/S100,S2B/S200,S300,S400 etc),
- MHI (TD02,TF035,TD04,TD05,TD06 ,TD07,TD08 etc),
- Holset(HX30,HX35/HE341,HX40/HE431V,HX55/HE551,HT60,HX80 etc),
- IHI (RHF/RHB3,RHF/RHB4,RHF5/RHB5,RHG6,RHG7,RHG8 ,RHG9 etc),
- Toyota (CT9,CT10,CT12,CT16V,CT20,CT26 etc).
