Mitsubishi Carisma Opel Movano Renault Megane dCi / Trafic dCi GT1549S Turbo 751768-0004 703245 717345 717348 738123
Mitsubishi Carisma Opel Movano Renault Megane dCi / Trafic dCi GT1549S Turbo 751768-0004 703245 717345 717348 738123
Specifiions:
| Part Number | 751768-5004S |
| Previous Version | 703245-0001, 703245-0002, 717345-0002, 751768-0001, 751768-0002, 751768-0003, 751768-5003S |
| OE number | 8200091350A, 7701478022, 7711497500, 7711497142, 8200091350B, 8200046681, 8200046681A, 8200046681B, 8200091350A |
| Year | 2000- |
| Description | Mitsubishi Carisma Opel Movano Volvo V40 Nissan Primastar Renault Megane dCi / Trafic dCi |
| CHRA | 433289-0345 (433289-5345S) |
| Turbo Model | GT1549S |
| Engine | F9Q |
| Engine Manufacturer | Renault |
| Displacement | 1.87L, 1900 ccm, 4 Cylinders |
| KW | 57/72 |
| RPM Max | 4000 |
| Fuel | Diesel |
| Angle α (compressor housing) | N/D |
| Angle β (turbine housing) | 75� |
| Bearing Housing | 433275-0002 |
| Turbine Wheel | 434713-0015 |
| Comp. Wheel | 436132-0014 |
| Back plate | 700593-0003 |
| Heatshield Number | 434302-0001 |
| Repair Kit | 732136-0001 |
| Service Kit | 732248-0003 |
| Turbine Housing | 700866-0012 |
| Compressor Cover | 717347-0001 |
| Turbine Housing AR | 0.35 |
| Actuator | 433483-0005 |
| Gasket (turbine inlet) | 210542 |
| Gasket (turbine outlet) | 210353 |
| Gasket (oil outlet) | 210243 |
| Features Wastegate (pressure) | 1.0 - 4.0 mm |
| Wastegate adjustment (rising stem) | 0.120 bar |
| Manufacturer | Honeywell-Garrett |
Interchangeable with 53039880048, 53039700048
Appliions
2001- Renault Clio II 1.9 dTi Engine F9Q
2001- Renault Kangoo I 1.9 dCi Engine F9Q
2001- Renault Master II 1.9 dCi Engine F9Q
2000- Renault Megane I 1.9 dTi Engine F9Q
2001- Renault Trafic II 1.9 dCi Engine F9Q
2001-04 Volvo- S40 I 1.9 D Engine F9Q
2001-04 Volvo- V40 1.9 D Engine F9Q

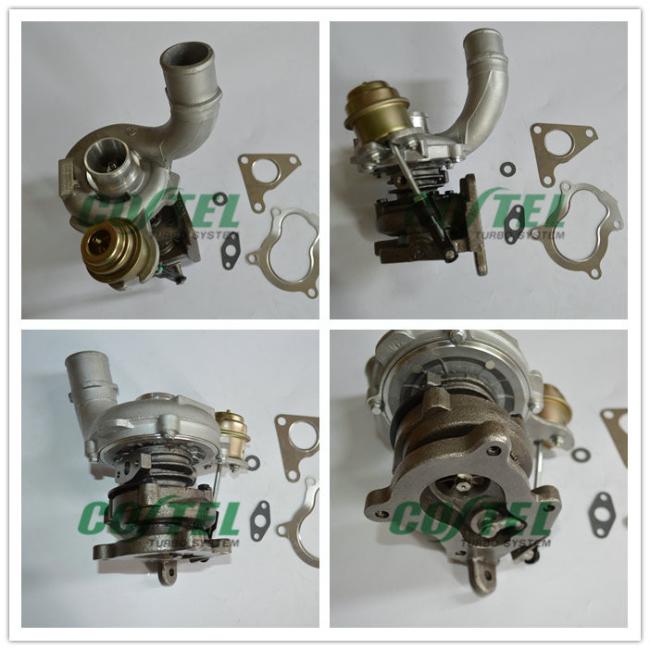

Pictures:
Contact:
Email/Skype:costelturbo@outlook.com
Shipping:
Depending on various circumstances, three different delivery methods have been taken:
1 By sea. 2 By air cargo. 3 By express service.
Delivery term
Our extensive stock of turbochargers allows us to offer 3-7 working day delivery service ensuring that you and your customer wait no longer than is necessary.
50-150 pcs--15-20 days, 150-300 pcs--25 days, over 300 pcs -- 30 days.
COSTEL Complete Turbo
A.our products have 12 months warranty.
B.Product are manufactured to OE standards of quality
C.All wheels are processed on the Schenck automatic balancing centre with air bearings to achieve lowest residual balance.
D.Cartridges are assemblied by automatic line, and are balanced with Turbo Technics VSR or Schenck .
E.All VNT turbochargers are tested on the G3 VNT Flow Bench.
F.All turbochargers are supplied with gasket kits.
PRODUCTS coverage
- Garrett(GT12,GTC14,GT15-25,GT37,GT42,GT45 etc),
- KKK (K03,K04,K06,K16,K27,K31,KP35,KP39,BV43,BV50,R2S etc),
- Schwitzer (S1B/S100,S2B/S200,S300,S400 etc),
- MHI (TD02,TF035,TD04,TD05,TD06 ,TD07,TD08 etc),
- Holset(HX30,HX35/HE341,HX40/HE431V,HX55/HE551,HT60,HX80 etc),
- IHI (RHF/RHB3,RHF/RHB4,RHF5/RHB5,RHG6,RHG7,RHG8 ,RHG9 etc),
- Toyota (CT9,CT10,CT12,CT16V,CT20,CT26 etc).
