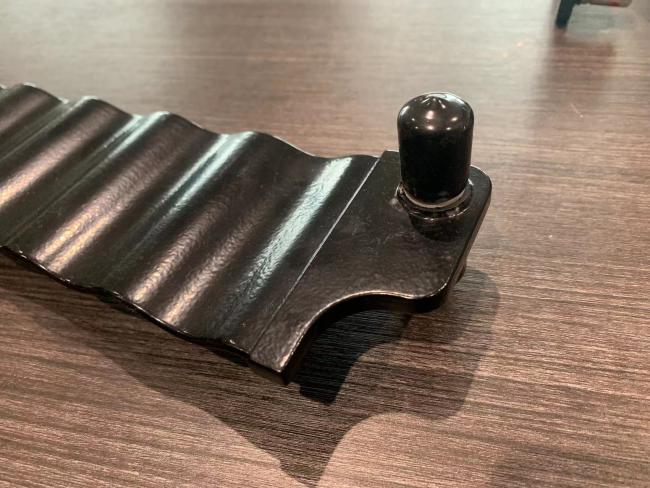

Aluminum Coated Cooling Tube For 4680 Lithium Battery In BTMS
Aluminum coated cooling plate for 4680 lithium battery in BTMS
1. Product Introduction:
We are not just a manufacturer, but also a design and development company specializing in superior heat exchanger solutions. The serpentine aluminum tube, also known as the serpentine tube or water-cooled plate, is our area of expertise. extensive experience includes thermal cooling projects, battery cooling for electric vehicles (also referred to as new energy vehicles), solar energy cooling, 5G parts cooling, drone cooling, and various industrial cooling applications.
The serpentine tube is made from our extrusion channel tube, with multiple molds available for various runner ports. Our water-cooling plate is crafted from aluminum and can be designed to fit different channel types and sizes, including mounting holes. Additionally, we have our own CNC center to create import/export connectors or partition accessories based on customer requirements.
2. Commonly used material chemical composition:
| No. | Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | V | Ti |
| 1 | 1050 | ≤0.25 | ≤0.40 | ≤0.05 | ≤0.05 | ≤0.05 | --- | ≤0.05 | ≤0.05 | ≤0.03 |
| 2 | 1100 | ≤0.95(Si+Fe) | 0.05-0.20 | ≤0.05 | --- | --- | ≤0.10 | --- | --- | |
| 3 | 3102 | ≤0.40 | ≤0.70 | ≤0.10 | 0.05-0.40 | --- | --- | ≤0.30 | --- | ≤0.10 |
| 4 | 3003 | ≤0.15 | ≤0.15 | ≤0.01 | 0.90-1.10 | ≤0.03 | ≤0.03 | ≤0.05 | ≤0.05 | ≤0.05 |
Both 3003 and 3102 are the alloys with very good anti-corrosion property,so they are widely used for heat exchange.
3. Supply state and mechanical properties:
| Alloy | Temper | Tensile Strength | Yield Strength | Elongation |
| 1050 | O/F/H111/H112 | ≥65MPa | ≥20MPa | ≥25% |
| 1100 | O/F/H111/H112 | ≥75MPa | ≥20MPa | ≥25% |
| 3102 | O/F/H111/H112 | ≥75MPa | ≥20MPa | ≥25% |
| 3003 | O/F/H111/H112 | ≥75MPa | ≥20MPa | ≥25% |
4. Application:
The heat exchanger or collector can be used in various applications, such as new energy vehicles (cylindrical battery, prismatic battery, soft packing battery), solar panels, solar energy collectors, photovoltaic power generation collectors, superconducting plates, soaking plates and temperature uniforming plates. Here are some examples for your reference.
5. Products for your reference:
Include: Cylindrical Battery Thermal Management,
Square Battery Thermal Management,
Electric Thermal Management,
All Aluminum Liquid Cooling Tray,
Soft Packing Battery Thermal Management and Motor Thermal Management.
6. FAQ:
Q: Are you a trading company or manufacturer?
A: We're actually a manufacturer with over 10 years of experience in this industry.
Q: What are your payment terms?
A: Normally, we require 30% TT in advance and the balance to be paid before shipment.
Q: How long does it take for samples and mass production?
A: Usually, it will take around 15-20 days for new molds and free samples (within 5 kg). After confirmation, mass production can be completed within 25-30 days.
Q: Do you offer OEM/ODM services?
A: Absolutely! We can definitely provide those services.
Q: Can I get a sample from you?
A: Of course! It would be our pleasure to offer you samples for quality check.
Q: Is it possible to place a sample order?
A: Yes, we do accept sample orders and even provide design services!
