Capsule Slip Ring 12 Channels 300rpm
Compact Capsule Slip Ring 12 Channels Max. Speed Up to 300rpm with Copper Plated Wires
Description
The series of compact capsule electrical slip ring with the features of flexibility, cost-effectiveness, and reliability, and it offers a low torque design with gold-to-gold contacts. It can meet 360 degrees free rotation and has a very long life about 10 million rotary cycles.
The LPC-12B Slip Ring which is also called a rotary electrical interface, commutator, collector, swivel or an electrical rotary joint, provides smoother running, lower torque and lower electrical noise than competitive slip rings. It is available in 6, 12 circuit modes.
| Specifications | |
| Operating Speed | 0-300 rpm |
| Number of Circuits | 12 |
| Voltage | 240 VAC/DC |
| Current Rating | 2 amps per circuit |
| Temperature Range | -20℃ to +60℃ |
| Contact Material | Gold to Gold |
| Lead Size | 28# silver plated copper |
| Lead Length | Standard 250 mm (9.843inch) |
| Dielectric Strength | ≥500 VAC @50Hz, between each circuit |
| Insulation Resistance | 100 MΩ @ 500 VDC |
| Electronic Noise | 1mΩ Min |

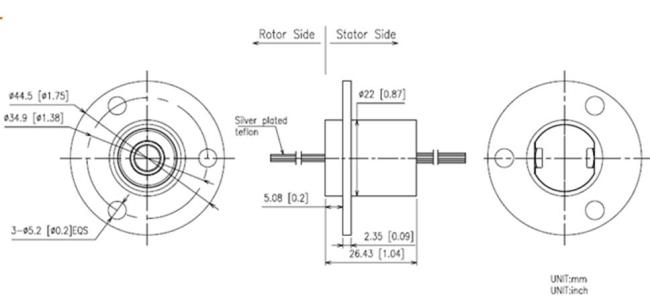

Outline Drawing
