12 Wires IP65 Through Bore Slip Ring with 50mm Hole Dia
12 Wires IP65 Through Bore Slip Ring Transmitting RS422 Signal with 50mm Hole Dia
Description
A slip ring can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure. A slip ring is also called a rotary electrical interface, collector, swivel or a commutation. A slip ring can improve system performance by simplifying operations and eliminating damage-prone wires dangling from movable joints.
The 50mm unobstructed through-bore provides routing space for hydraulics, pneumatics or for a concentric shaft mount. The LPT050 uses our fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force per fiber and low contact wear rates. In addition, fiber brushes do not require lubrication and produce virtually no wear debris. The LPT050 features field serviceable brush blocks.
| Specification | |
| Circuits | 12 circuits * RS422 signal |
| Operating Speed | 0~600rpm |
| Working Temperature | -20℃~ +60℃ |
| Working Humidity | ≤90%RH |
| Electrical: | |
| Voltage Rating | 380VAC |
| Dielectric Strength | ≥500V@50Hz between each circuit |
| Insulation Resistance | 500MΩ@500VDC |
| Electric Noise | ≤70mΩ |
| Mechanical: | |
| Contact Material | Gold to gold |
| Lead Wire Size |
AWG14#/17#/22# silver plated copper 50 Ω coaxial-cable |
| Lead Wire Length | Rotor:300mm; Stator:300mm |
| Housing Material | Aluminum alloy |
| Protection | IP 65 |
| Environment | |
| Working Temperature | -20~+60℃ |
| Humidity | ≤90%RH |
| Protection Grade | IP65 |

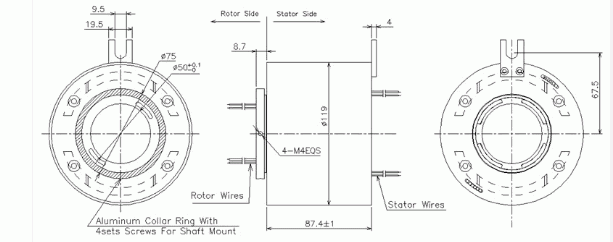

Dimension
Application Picture
