Hybrid Slip Ring Transferring HF, USB and Ethernet Signal with Solid Shaft
Hybrid Slip Ring Transferring HF, USB and Ethernet Signal with Solid Shaft for Video Surveillance
Quick detail
| Type | Through bore slip ring |
| Number of circuits | 10 |
| Current rating | 2A per wire |
| Feature | USB2.0；Gigabit Ethernet；High Frequency |
Description
The LPT series provides an economical, readily available solution when a compact through-bore configuration is required. This unit provides a 12.7mm through-bore for routing hydraulic or pneumatic lines and a compact 55mm outside diameter for minimal space applications. The 5 amps /circuit are available in 6, 12, 18 and 24 ring configurations in 4 housing length.
This series of product is a slip ring with 2A per circuit. And it can transmit 240V current. It has the feature of compact appearance, smooth running, and low friction. It can integrate with USB2.0 signal,Gigabit Ethernet and high frequency.
Specification
| Circuits | 10 ckt*2A, 4 ckt*USB2.0, 1ckt* Ethernet, 2ckt* HF |
| Voltage | 220VAC |
| Dielectric Strength | Between circuits ≥500V@50Hz(current); ≥300V@50Hz(signal) |
| Insulation Resistance | 500MΩ@500VDC(current);100MΩ@300VDC(signal) |
| Dynamic Resistance Fluctuation Value | ≤10mΩ (in 10rpm) |
| Working Speed | 0~300 rpm |
| Contact | Precious metal |
| Housing | Aluminum alloy |
| Wire Size | AWG22 # USB2.0 wire, Gigabit Ethernet wire |
| Working Temperature | -20~+60℃ |
| Humidity | ≤60%RH |
| Protection Grade | IP54 |
| HF Part | ||
| Channels | Channel 1 | Channel 2 |
| Connection Method | SMA Female (50 ohms) | SMA Female (50 ohms) |
| Frequency Range | DC to 8GHz | DC to 8 GHz |
| Peak Power | 1500W | 1500W |
| Average Power | 50W@4.5GHz | 50W@4.5GHz |
| VSWR | 1.2@0-4GHz ; 1.3@4-8GHz | 1.8@0-4GHz ; 2.2@4-8GHz |
| VSWR Variation | 0.1 | 0.4 |
| Insertion Loss | 0.2dB@0-4GHz; 0.4dB@4-8GHz | 0.5dB@0-4GHz; 0.8dB@4-8GHz |
| Insertion Loss Variation | 0.05dB | 0.35dB |
| Isolation | 50dB m(Typical Value: 60dB) | 50dB m(Typical Value: 60dB) |

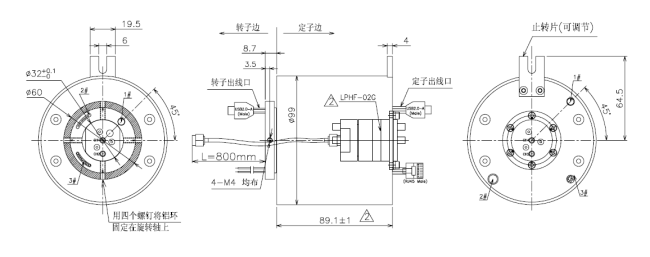

Dimension

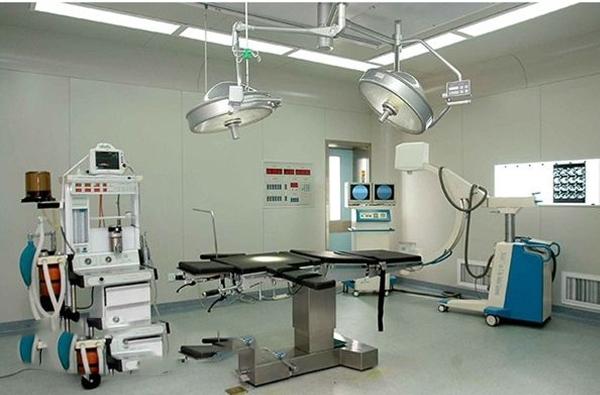

Product application(medical engineering)
