Machinery Slip Ring Electric Motor 15 Circuits 240VAC Voltage 300rpm
15 Circuits Separate Electrical Slip Ring with 240VAC Voltage & 300 rpm Working Speed
Description
These slip rings are manufactured by our deft team members, with premium grade metal-alloys through the edge-cutting technologies. The offered slip rings are assembled in various mechanical components to increase the rate of power transmission.
It is also called a rotary electrical interface, commutator, collector, swivel or an electrical rotary joint. It can improve electromechanically capability, simplify system design and eliminate possible damage while in the rotation.
The LPS-15 separate slip ring is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.
| Specifications | |
| Operating Speed | 0-300 rpm |
| Circuits | 15 |
| Voltage | 240 VAC/DC |
| Current Rating | 1-3A |
| Temperature Range | -20℃ to +60℃ |
| Working Humidity | 60%RH or higher |
| Contact | Gold to Gold |
| Lead Size | 28 # silver plated copper |
| Lead Length | Standard 250 mm (9.843inch) |
| Dielectric Strength | ≥500 VAC @50Hz, between each circuit |
| Housing | Precious metal |
| Insulation Resistance | 1000 MΩ @ 500 VDC |
| Electrical Noise | 1 mΩMin |

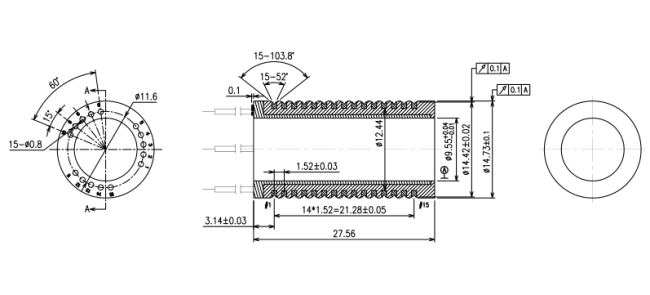

Outline Drawing

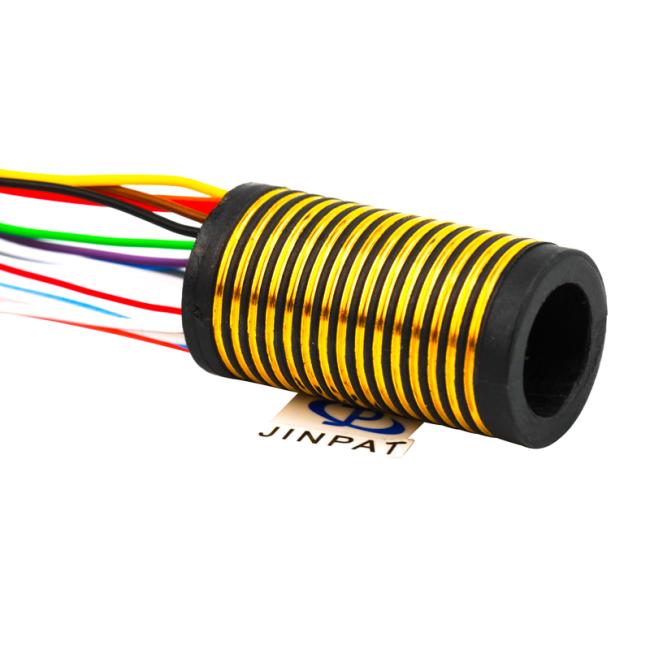

Product Display

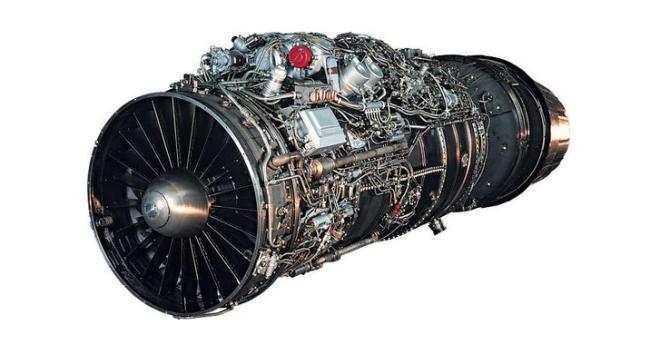

Application Picture
